991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000101 - 000103) Deck, Belt, Blades And Spindles - 48" Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

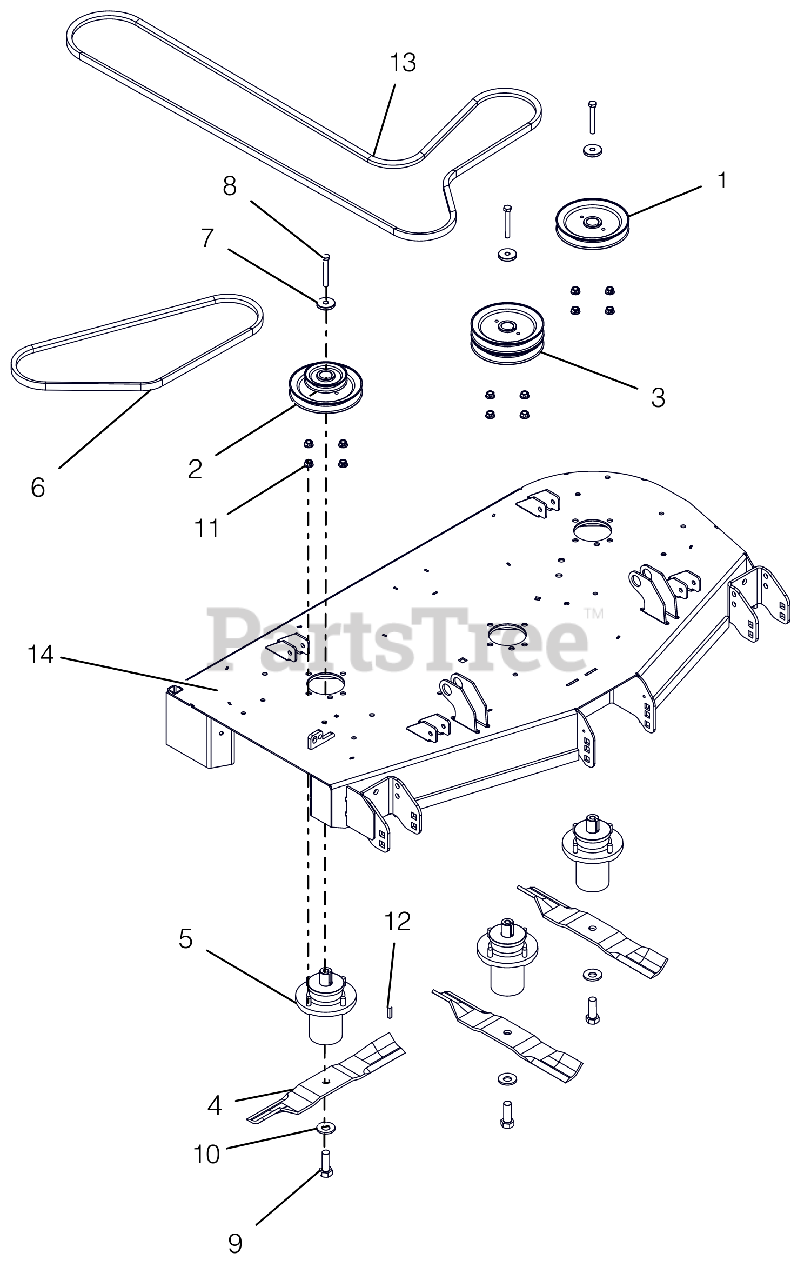

Deck, Belt, Blades And Spindles - 48" Parts Diagram

  • Title

1

Ariens 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

2

Ariens 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

$79.99

$

In Stock, only 1 left!

0

3

Ariens 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

4

Ariens 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

5

Ariens 59109800

ASM, MAINT FREE SPINDLE ALUM
(Superseded to 58810800)

$239.99

$

In Stock, Qty 20+

0

6

Ariens 07200805

V-BELT, B-COGGED

$42.99

$

In Stock, Qty 15

0

7

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

8

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

11

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Ariens 07200815

V-BELT, HB SECTION

$108.99

$

In Stock, only 2 left!

0

14

Ariens 59107800

KIT,DECK-48" W/DECALS - ARIENS

$

$

Not available
