991153 - Ariens Apex 48" Zero-Turn Mower, Kohler (SN: 000101 - 000103) Controls Parts Diagram

Apex 48" Zero-Turn Mower, Kohler

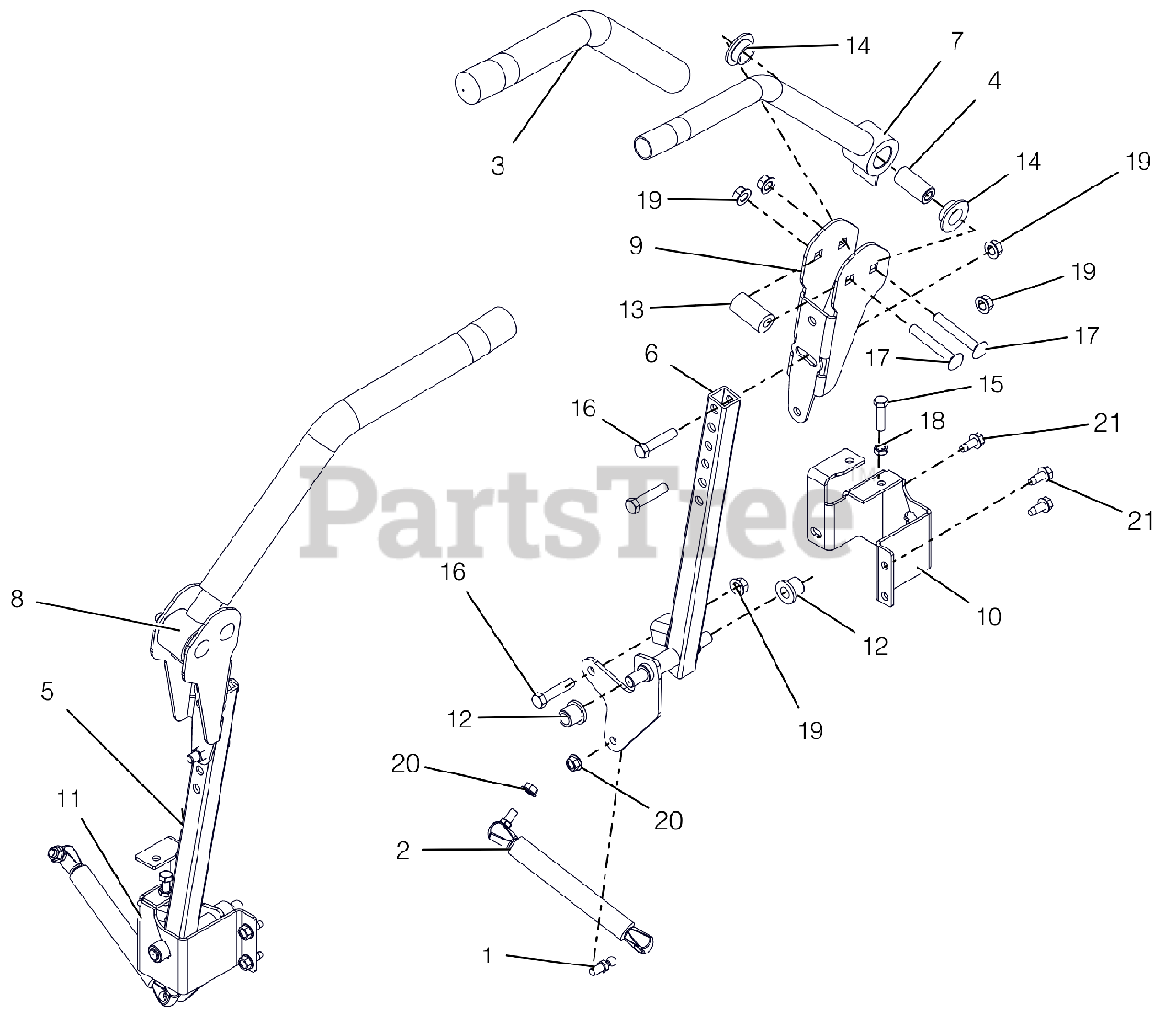

Controls Parts Diagram

  • Title
1

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

2

Ariens 03769800

DAMPER
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

3

Ariens 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 2 left!

0

4

Ariens 04413600

SPACER, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

5

Ariens 05011851

WLDMT, STEERING RH
(Superseded to 05243951)

$56.99

$

Usually ships in 4-12 days

0

6

Ariens 05011951

WLDMT, STEERING LH
(Superseded to 05244051)

$62.99

$

Usually ships in 4-12 days

0

7

Ariens 05068551

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05262151)

$76.99

$

In Stock, only 1 left!

0

8

Ariens 05068651

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05261851)

$72.99

$

Usually ships in 4-12 days

0

9

Ariens 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$39.99

$

Usually ships in 4-12 days

0

10

Ariens 05120459

BRKT, STEERING ARM MOUNT -LH

$37.99

$

Usually ships in 4-12 days

0

11

Ariens 05120559

BRKT, STEERING ARM MOUNT -RH

$41.99

$

Usually ships in 4-12 days

0

12

Ariens 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

13

Ariens 05501223

BSHG, ECCENTRIC.406X.875X1.625

$4.99

$

In Stock, only 4 left!

0

14

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

15

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

16

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06200213

BLT-RDHDSQSHK, 38-16X2.50 G5YZ
(Superseded to 06200315)

$3.49

$

In Stock, only 2 left!

0

18

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0
