991145 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Height Of Cut Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki FX

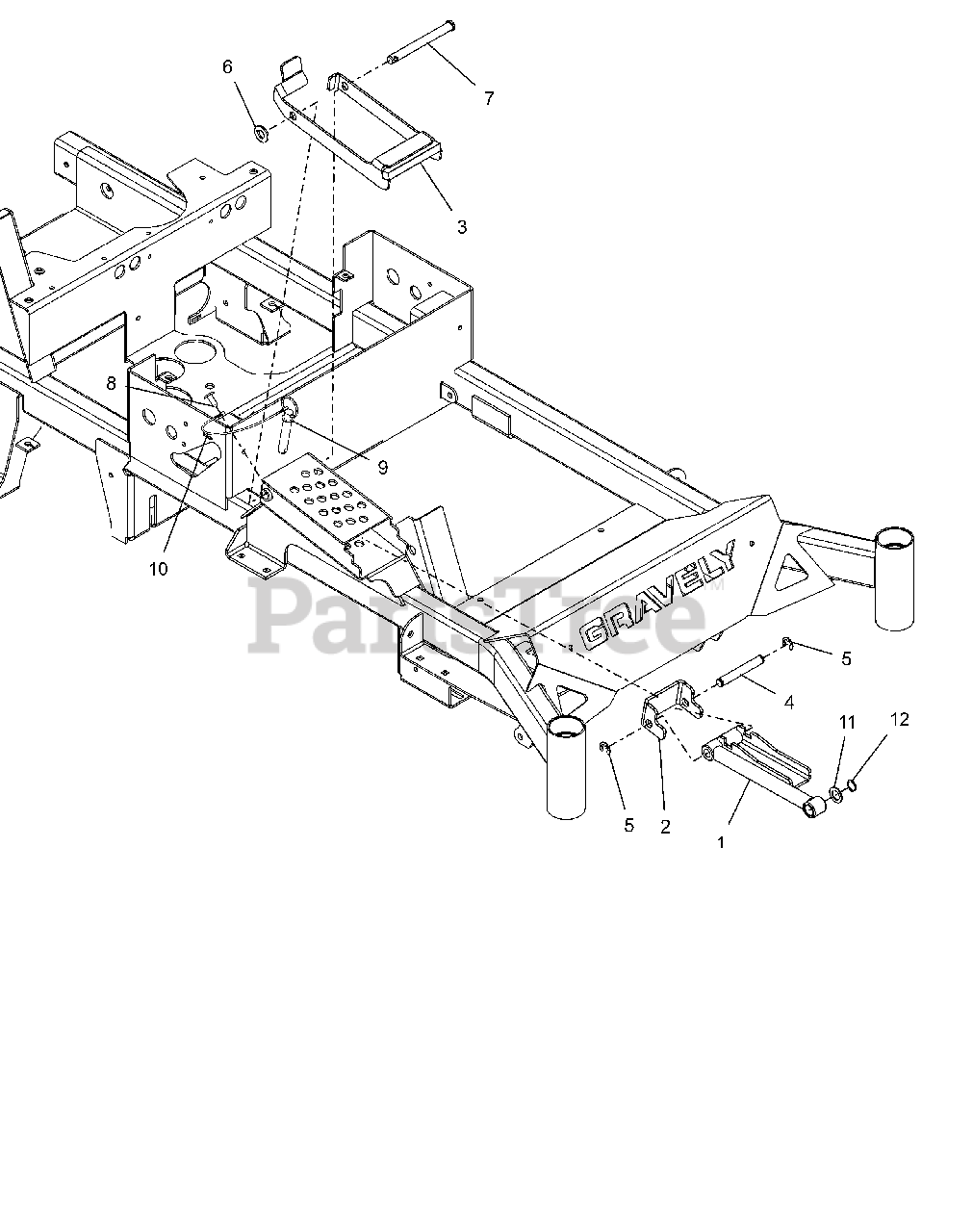

Height Of Cut Parts Diagram

  • Title
1

Gravely 05156853

WLDMT, COMAPCT HOC LIFT ARM

$

$

Not available

2

Gravely 05174851

BRKT, COMPACT HOC LINE

$

$

Not available

3

Gravely 05172953

WLDMT, TRANSFER LOCK

$74.99

$

Usually ships in 4-12 days

0

4

Gravely 05077700

ROD, HOC PIVOT
(Superseded to 05800210)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06800201

PIN, SLIC-.500X4.97X4.55 -ZC

$7.99

$

In Stock, only 3 left!

0

8

Gravely P80-332-A

XMAS TREE FASTNER-BLACK

$

$

Not available

9

Gravely 06800136

PIN, .50 X 2.20 USABLE LG BALL

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

11

Gravely 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 20+

0
