991145 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Deck Lift - 44" Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki FX

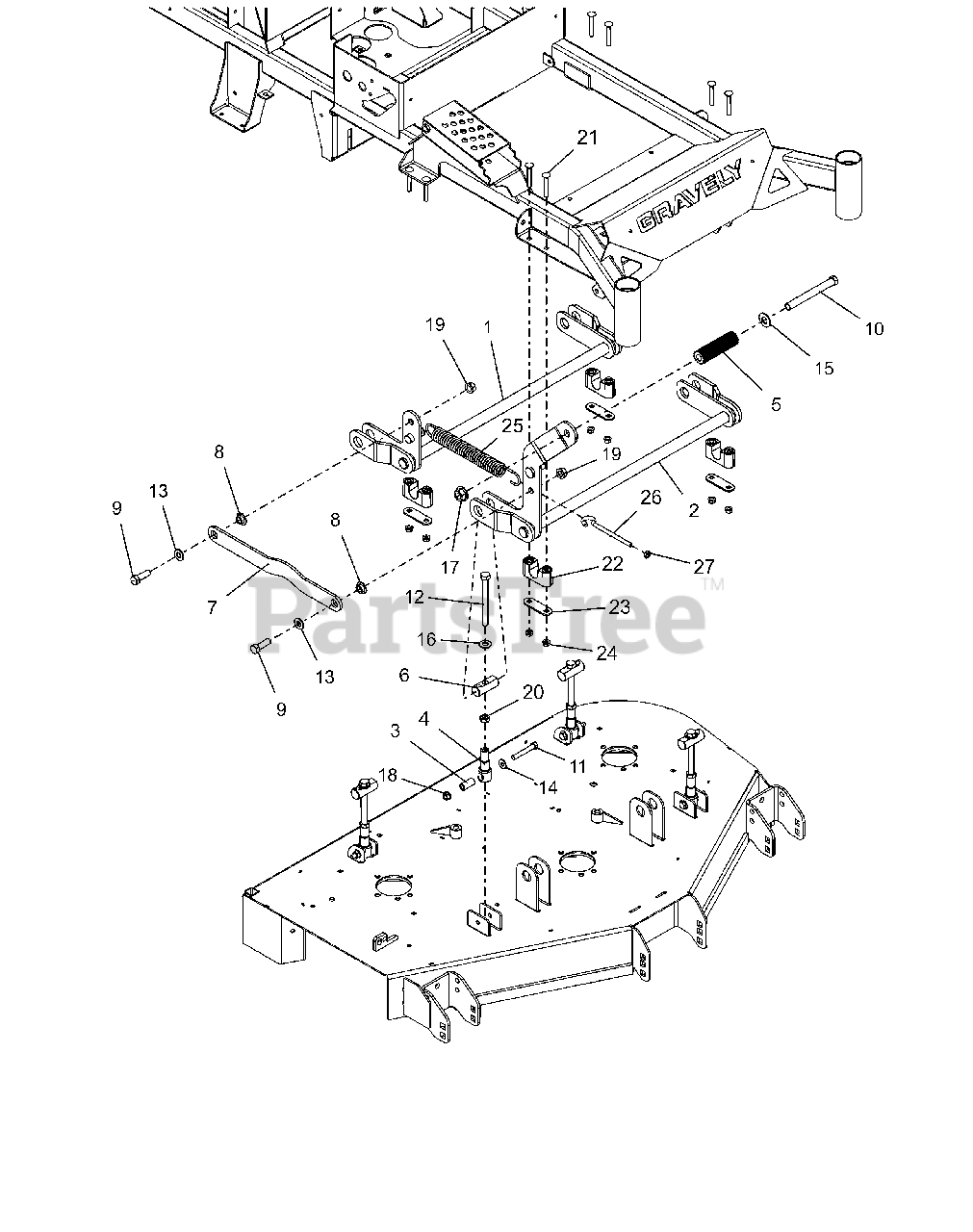

Deck Lift - 44" Parts Diagram

  • Title

1

Gravely 05156751

WLDMT, COMPACT REAR DECK LIFT

$

$

Not available

2

Gravely 05156651

WLDMT, COMPACT FRONT DECK LIFT

$232.99

$

Usually ships in 4-12 days

0

3

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

4

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 11

0

5

Gravely 05120951

ROD, FOOT PEDAL (BLACK)

$

$

Not available

6

Gravely 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

7

Gravely 05166051

LINK, DECK LIFT

$74.99

$

Usually ships in 4-12 days

0

8

Gravely 05501135

BSHG, FLG .515X.750X.360X1.12

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 05901631

BLT,HEX .50-13X1.50 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05901730

BLT, HEX .62-11X5.50 G5 FBP

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05901925

BLT, HEX 0.5-13X5S GR5 ZCC

$4.99

$

In Stock, only 4 left!

0

13

Gravely 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500835

NUT,FLG-TOP LK .625-11 FBP

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

22

Gravely 07500414

ASM-BUSHING, DECK LIFT

$22.99

$

In Stock, only 2 left!

0

23

Gravely 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

24

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

26

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

27

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0
