991145 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Belt Covers - 44" Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki FX

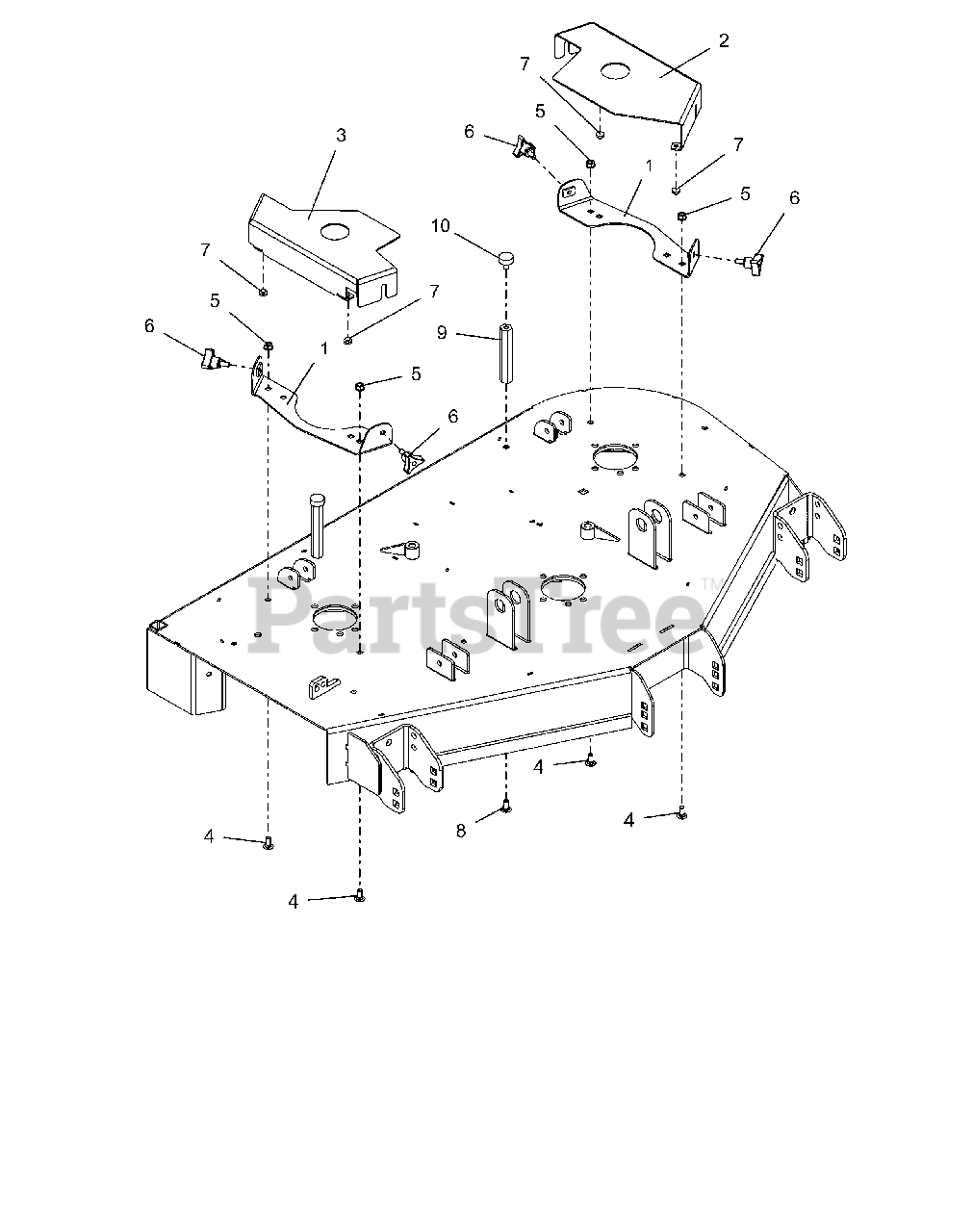

Belt Covers - 44" Parts Diagram

  • Title
1

Gravely 05178353

WLDMT, BELT GUARD MTG BRKT

$82.99

$

Usually ships in 4-12 days

0

2

Gravely 05178453

GUARD, 44" LH DECK BELT

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 05178553

GUARD, RH DECK BELT

$99.99

$

Usually ships in 4-12 days

0

4

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

7

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

8

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 07001821

NUT,.31-18 X 4.125 LG COUPLING

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0
