991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Engine Shroud Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

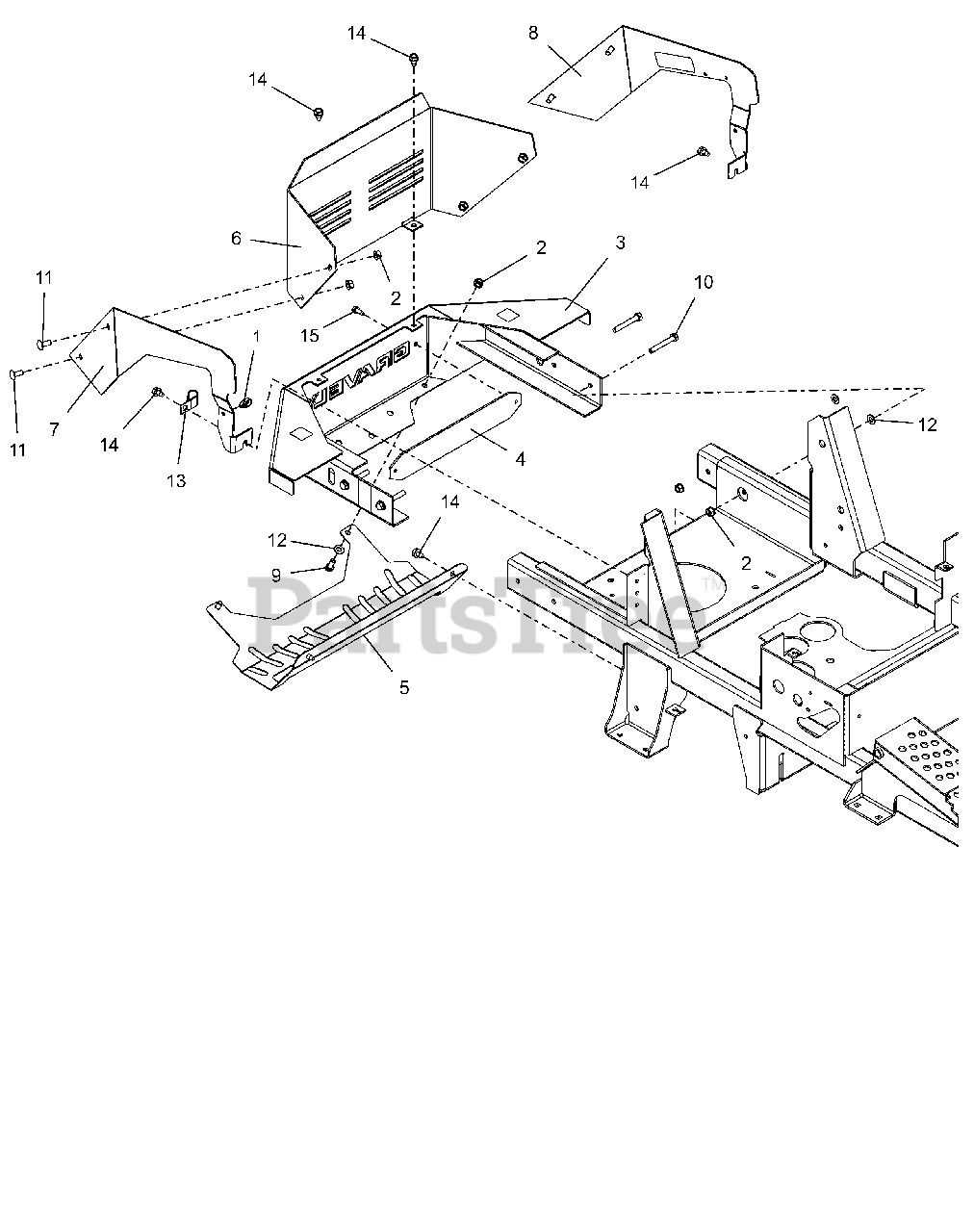

Engine Shroud Parts Diagram

  • Title

1

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

2

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

3

Gravely 59114700

KIT, BUMPER W/SAFTEY DECALS

$

$

Not available

4

Gravely 05171751

BACK, NAMEPLATE

$

$

Not available

5

Gravely 05172251

SHIELD COMPACT PRO HEAT

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 05177351

GUARD, ENGINE

$127.99

$

Usually ships in 4-12 days

0

7

Gravely 05177453

TRIM, RH ENGINE GUARD

$113.99

$

Usually ships in 4-12 days

0

8

Gravely 05177553

TRIM, LH ENGINE GUARD

$100.99

$

Usually ships in 4-12 days

0

9

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07400135

SCR,TAP .25-20X.625 HWH ZCC

$2.49

$

In Stock, Qty 6

0
