991144 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki FX (SN: 000101 & Above) Deck, Belt, Blades And Spindles - 34" Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki FX

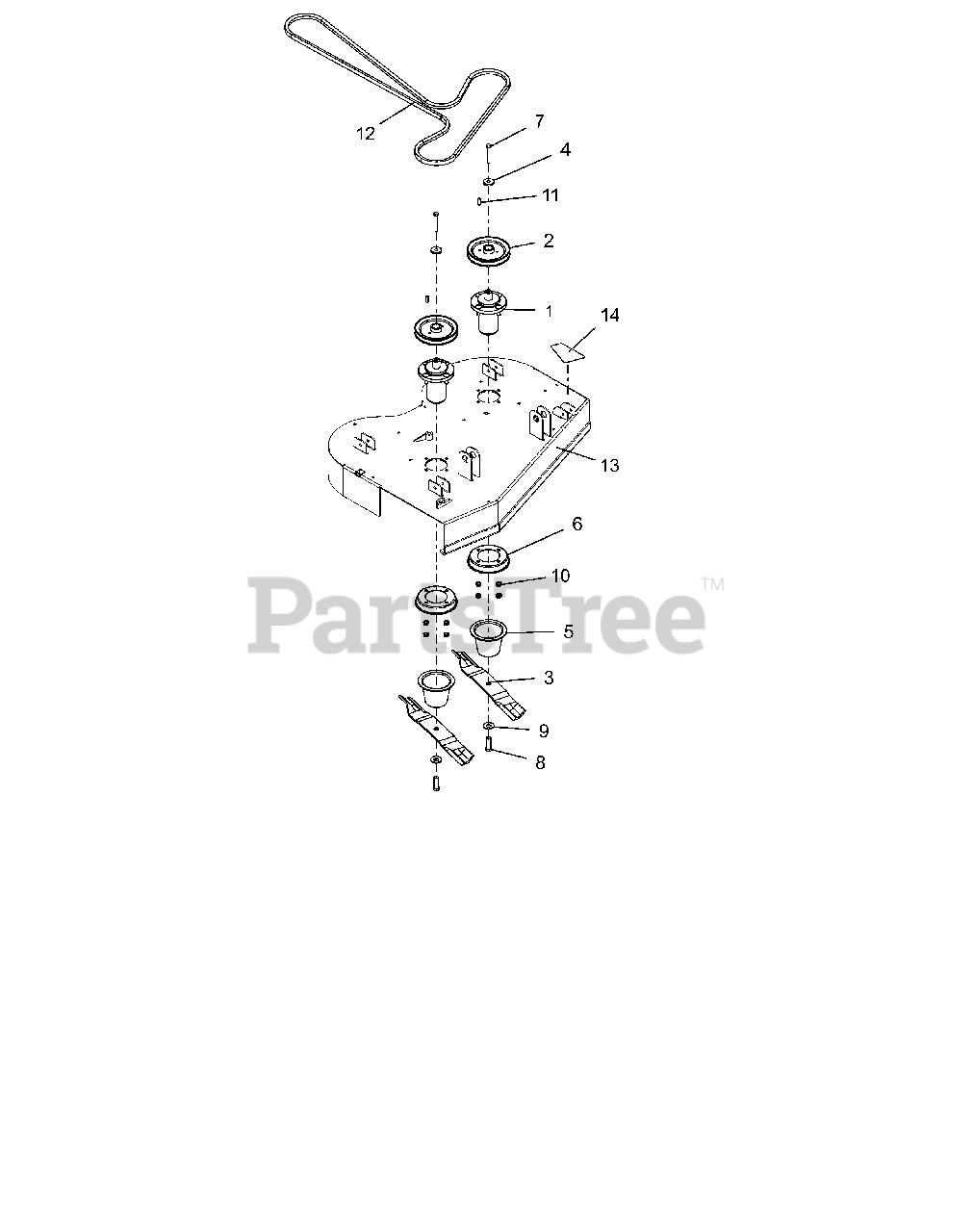

Deck, Belt, Blades And Spindles - 34" Parts Diagram

  • Title

1

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

2

Gravely 07342951

PULLEY, V-1" ID X 6.00 OD

$79.99

$

Usually ships in 4-12 days

0

3

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

4

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

6

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

10

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0

12

Gravely 07200809

V-BELT, B RAW EDGE EPDM

$108.99

$

In Stock, only 1 left!

0

13

Gravely 59114900

KIT, 34" DECK W/SAFTEY DECALS

$

$

Not available

14

Gravely 05199100

GRIP, STEP

$

$

Not available
