991139 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX CARB (SN: 000101 - 009999) Transaxle Drive Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX CARB

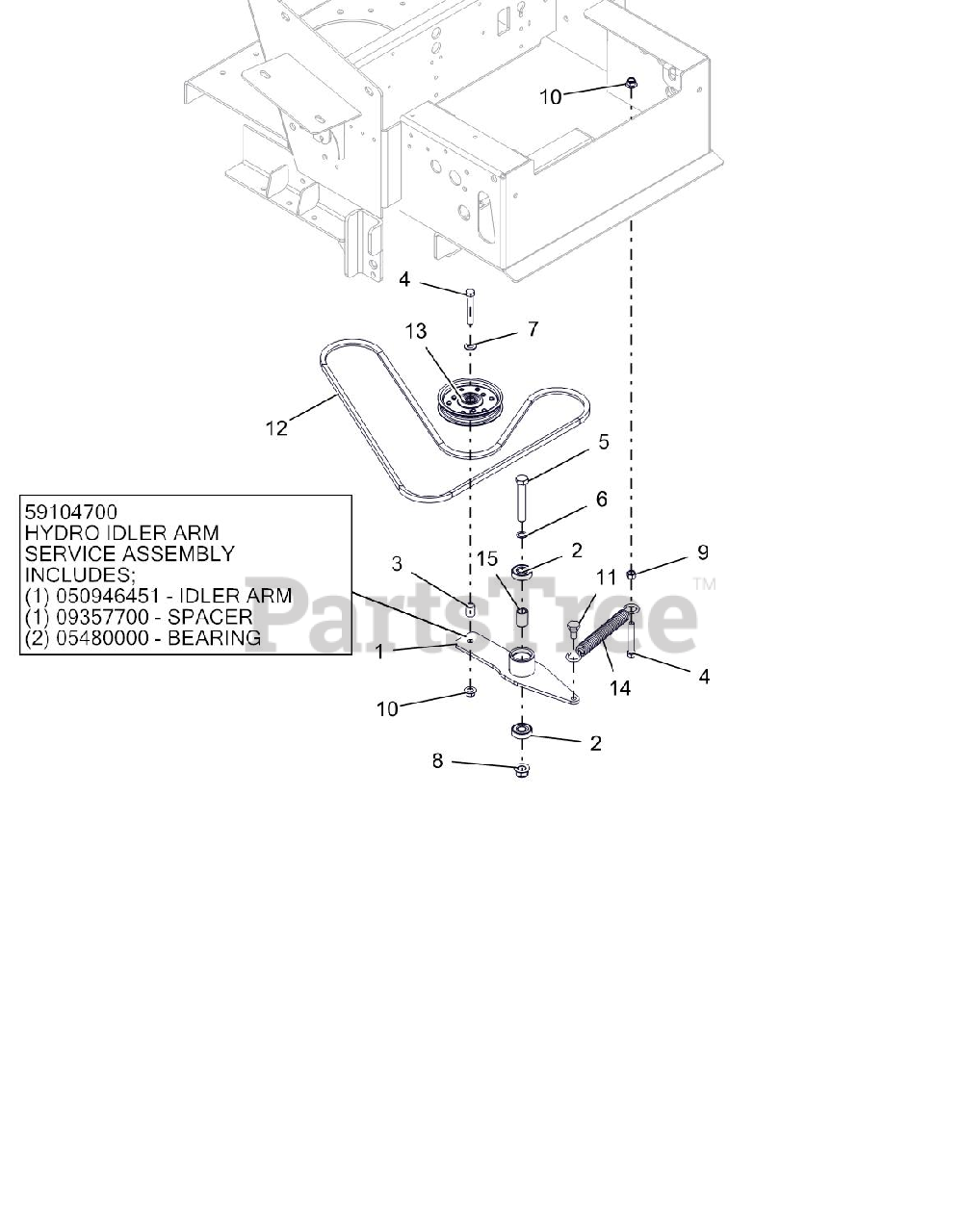

Transaxle Drive Parts Diagram

  • Title
1

Gravely 05480000

BRG-BALL .50X1.38X.438 SEALED

Note: SERVICE PART

$13.99

$

In Stock, Qty 20+

0

1

Gravely 09357700

SPACER .510 X .75 X 1.1485

Note: SERVICE PART

$4.99

$

In Stock, only 3 left!

0

1

Gravely 59104700

HYDRO IDLER ARM ASSEMBLY

Note: SERVICE PART

$67.99

$

Usually ships in 4-12 days

0

1

Gravely 05094651

HYDRO DRIVE IDLER ARM WMT-BLK
(Superseded to 05094600)

$56.99

$

In Stock, only 1 left!

0

1

Gravely 05094651

HYDRO DRIVE IDLER ARM WMT-BLK
(Superseded to 05094600)

Note: SERVICE PART

$56.99

$

In Stock, only 1 left!

0

2

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 15

0

3

Gravely 05525700

BSHG-SLV .407X.625X.750 PL

$7.49

$

In Stock, only 1 left!

0

4

Gravely 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06400015

WASHER, .500X.750X.020 THRUST

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

12

Gravely 07226400

V-BELT, A-COGGED

$52.99

$

In Stock, Qty 9

0

13

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 20+

0

14

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

15

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 3 left!

0
