991135 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EZT EFI (SN: 092000 & Above) Fuel System - Kohler - EFI Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EZT EFI

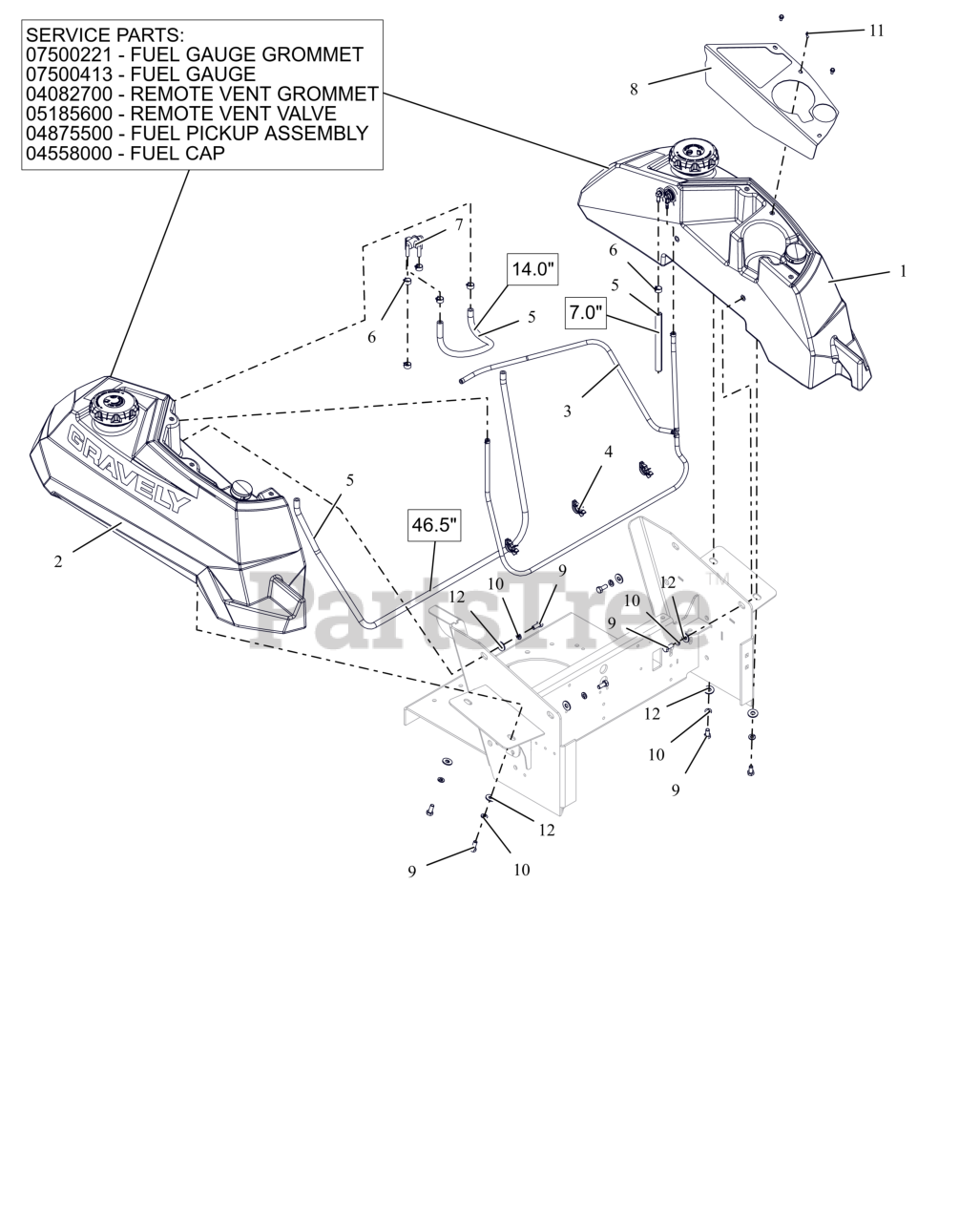

Fuel System - Kohler - EFI Parts Diagram

  • Title

1

Gravely 05067500

ASM, LH - PT100 FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

1

Gravely 07500221

GROMMET, FUEL GAUGE

Note: Component Service Part

$5.99

$

In Stock, only 1 left!

0

1

Gravely 07500413

GAUGE, REMOTE SEALED FUEL

Note: Component Service Part

$

$

Not available

1

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.49

$

In Stock, Qty 11

0

1

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$17.99

$

In Stock, only 1 left!

0

1

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: Component Service Part

$11.99

$

In Stock, only 2 left!

0

1

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: Component Service Part

$33.99

$

In Stock, Qty 20+

0

2

Gravely 05067600

ASM, RH - PT100 FUEL TANK

$407.99

$

Usually ships in 4-12 days

0

2

Gravely 07500221

GROMMET, FUEL GAUGE

Note: Component Service Part

$5.99

$

In Stock, only 1 left!

0

2

Gravely 07500413

GAUGE, REMOTE SEALED FUEL

Note: Component Service Part

$

$

Not available

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: Component Service Part

$3.49

$

In Stock, Qty 11

0

2

Gravely 05185600

VALVE, COMBINATION VENT 3/16

Note: Component Service Part

$17.99

$

In Stock, only 1 left!

0

2

Gravely 04875500

ASSM,LRG TANK FUEL PICKUP LINE

Note: Component Service Part

$11.99

$

In Stock, only 2 left!

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: Component Service Part

$33.99

$

In Stock, Qty 20+

0

3

Gravely 05073700

ASM, VAPOR LINE

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04426400

VALVE, FUEL
(Superseded to 30193300)

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 05067453

PT100 CUPHOLDER PANEL - RED

$

$

Not available

9

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

12

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0
