991134 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Guards And Chute - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower

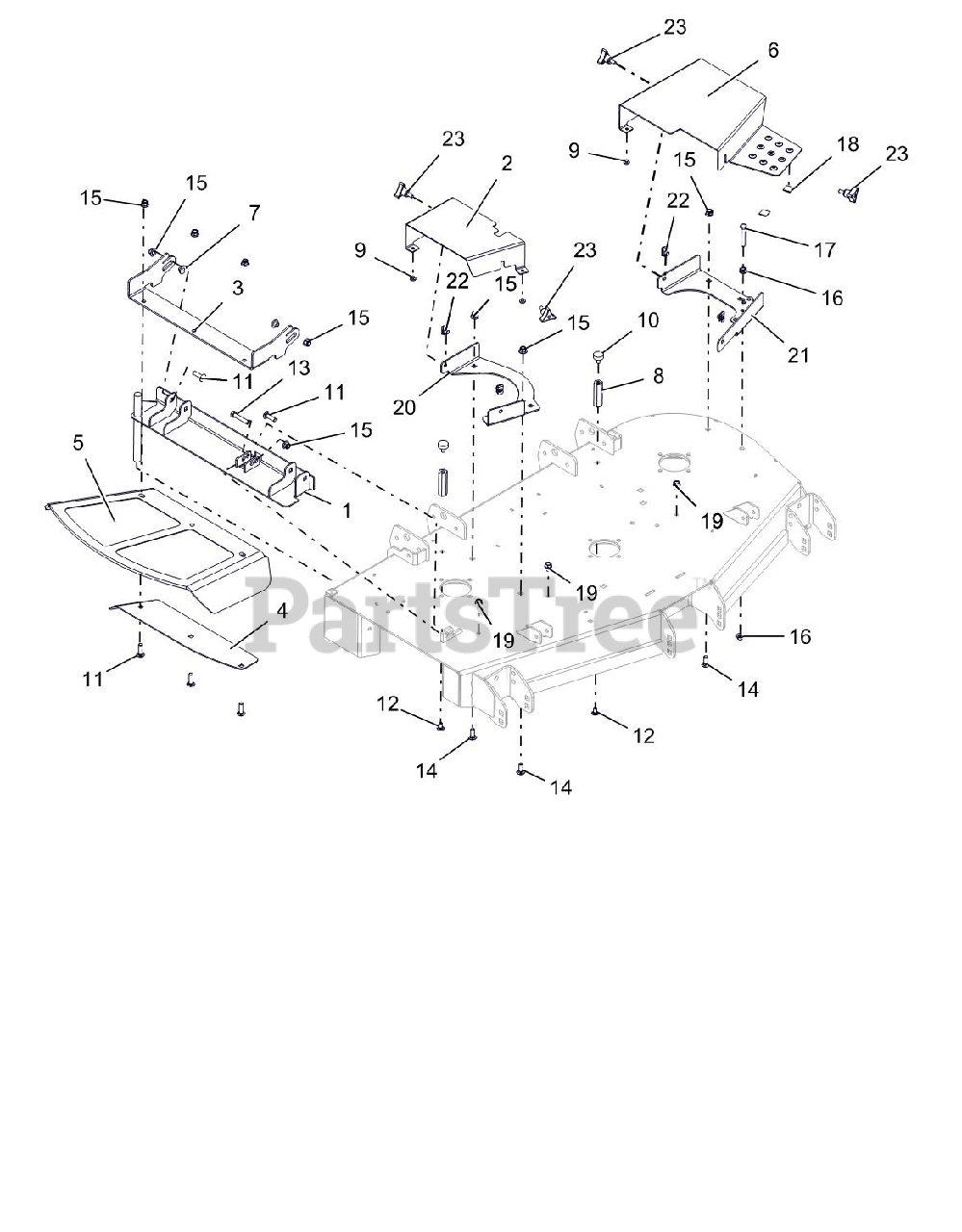

Guards And Chute - 48" Parts Diagram

  • Title
1

Gravely 59225500

48-60 DISCH CHUTE MTG W/SAFETY DECAL

$113.99

$

Usually ships in 4-12 days

0

2

Gravely 05109253

GUARD, PT148-152 DECK RH BELT (RED)

$53.99

$

In Stock, Qty 6

0

3

Gravely 04872253

BRKT, 48-60" CHUTE MTG (RED)

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 04873753

PLATE, 48-60" DISCH CHUTE CLAMP (RED)

$25.99

$

In Stock, only 2 left!

0

5

Gravely 04881200

CHUTE, 48-60" FORMED RUBBER DISCHARGE

$75.99

$

In Stock, Qty 9

0

6

Gravely 05109453

GUARD, PT100 DECK LH BELT (RED)

$116.99

$

In Stock, only 1 left!

0

7

Gravely 05500435

BSHG, FLG .385 X .500 X .875 X .406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07001812

NUT, COUPLING

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 07503100

BUMPER, GROMMET

$3.49

$

In Stock, only 3 left!

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06222200

BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06200118

BLT-RHDSSQNK .31-18X.62 G5YZ LOCKING
(Superseded to 06200304)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05963300

BOLT, HEX 0.375-16X2 GR5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

14

Gravely 06223600

BOLT, CARRIAGE 0.375-16X1 GR5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05962900

BOLT, HEX 0.375-16X2.25 GR5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

18

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04969200

BRKT, BELT GUARD RH MOUNTING (RED)
(Superseded to 04969253)

$44.99

$

In Stock, only 1 left!

0

21

Gravely 04969300

BRKT, BELT GUARD LH (RED)
(Superseded to 04969353)

$35.99

$

In Stock, only 1 left!

0

22

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

23

Gravely 07500008

KNOB, WING STUD .312-18X.75

$5.99

$

In Stock, Qty 20+

0
