991133 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 090000 - 091999) Control Panel - Kohler - Non - EFI Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

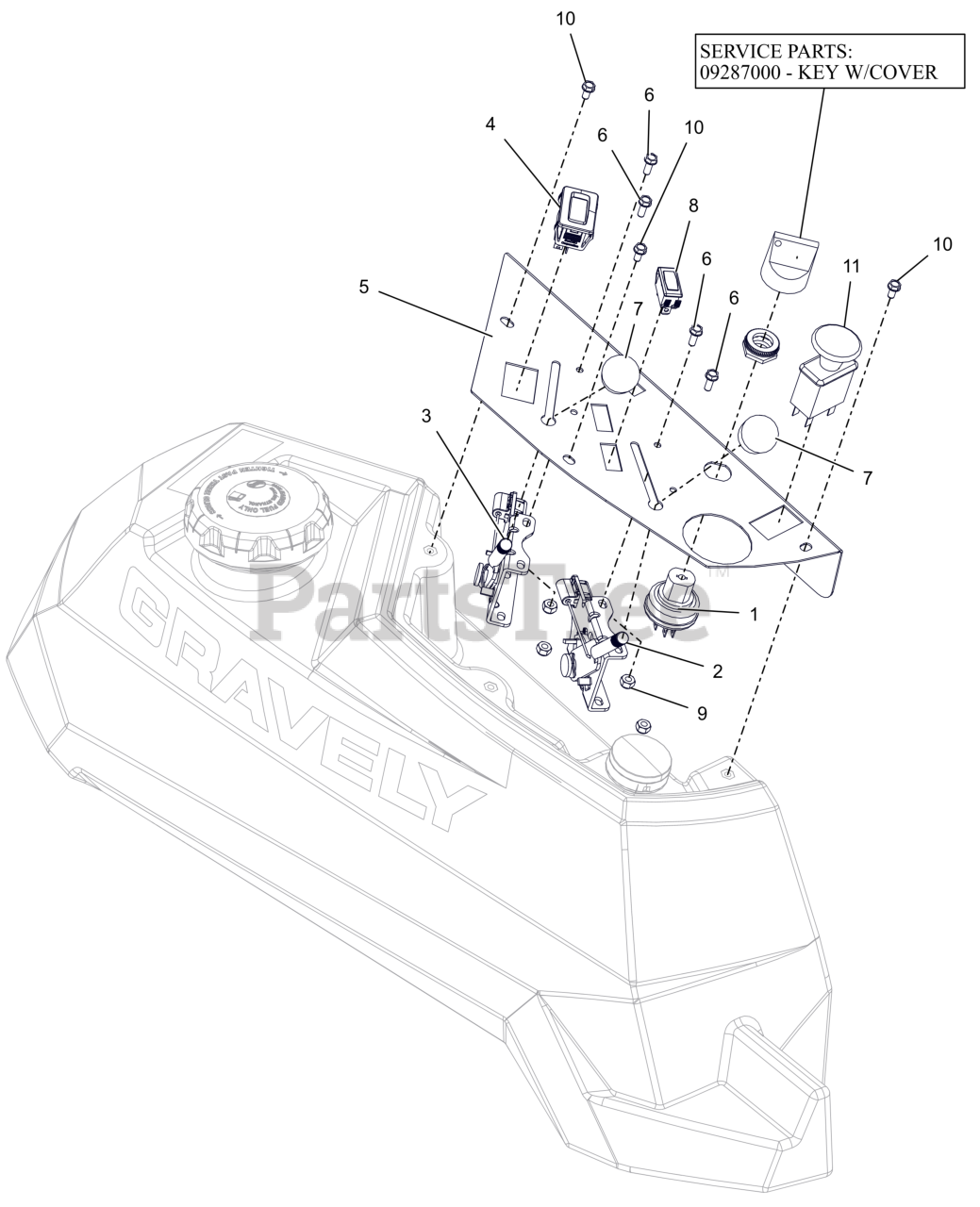

Control Panel - Kohler - Non - EFI Parts Diagram

  • Title
1

Gravely 04331600

SWITCH, IGNITION

$45.99

$

In Stock, Qty 20+

0

1

Gravely 09287000

KEY, W/ SHIELD

Note: Component Service Part

$14.99

$

In Stock, Qty 20+

0

2

Gravely 06900631

CABLE, PRO-CTRL 35.50"

$46.99

$

In Stock, only 1 left!

0

3

Gravely 06900638

CABLE, PRO-CONTROL 31.50"

$35.99

$

Usually ships in 4-12 days

0

4

Gravely 05254800

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

5

Gravely 05067053

PT100 CONTROL PANEL - RED

$30.99

$

Usually ships in 4-12 days

0

6

Gravely 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07500132

KNOB-CONTROL-BLACK .38-16X.50

$11.99

$

In Stock, Qty 8

0

8

Gravely 05128700

LIGHT, INDICATOR (RED)

$6.99

$

In Stock, only 1 left!

0

9

Gravely 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 11

0

11

Gravely 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0
