991133 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 010000 - 016999) ROPS Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

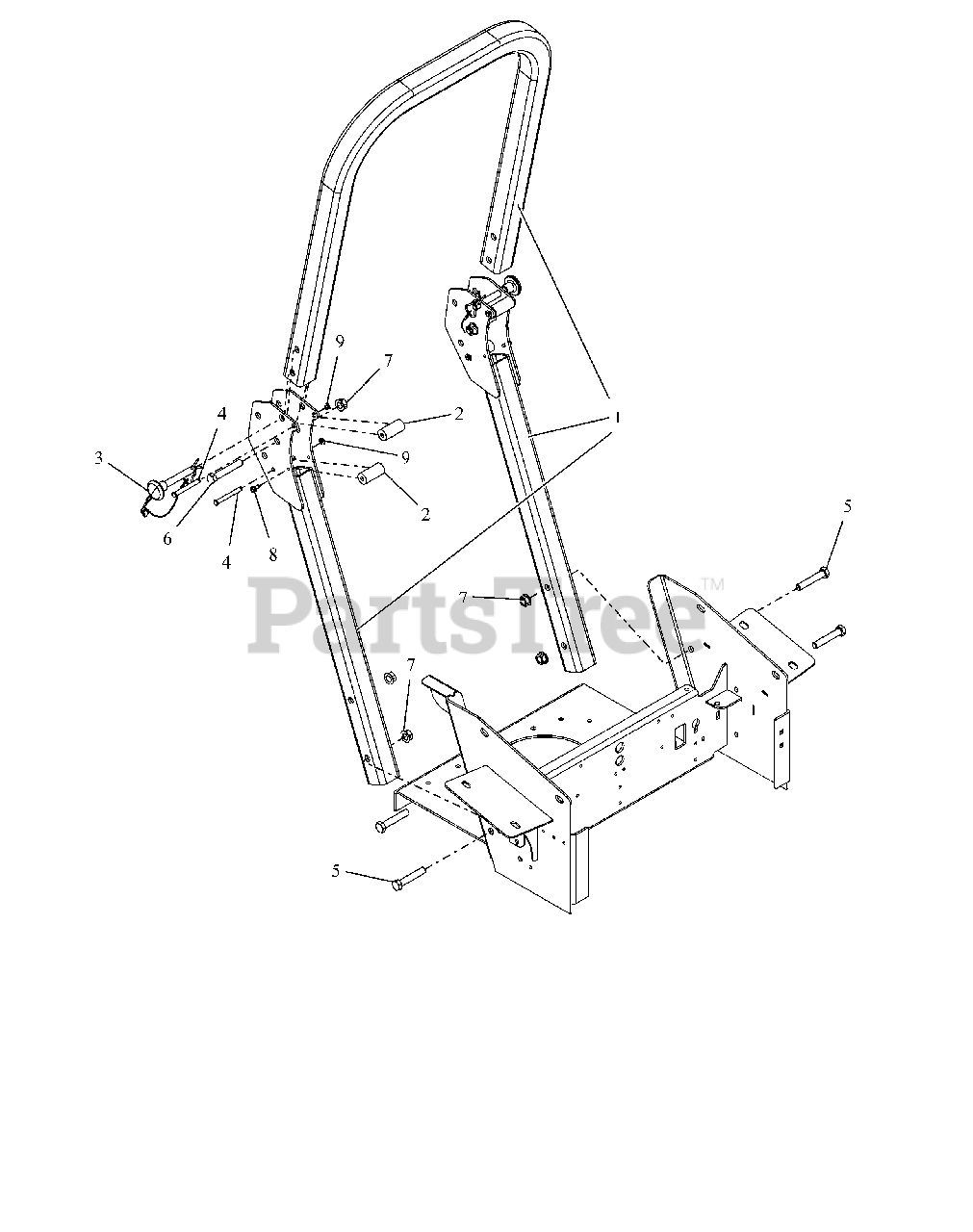

ROPS Parts Diagram

  • Title
1

Gravely 59108400

ROPS, PT/PT100 REPLACEMENT

$

$

Not available

2

Gravely 04884200

BUMPER, ROPS ANTI-VIBRATION

$

$

Not available

3

Gravely 04898200

PIN, ROPS W/LANYARD

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 06800127

PIN, 5/16 X 2-9/16 WITH GROOVE
(Superseded to 07001826)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

7

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05700222

RING, RETAINING-E .312 X .025

$

$

Not available
