991133 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler ZT (SN: 000101 - 009999) Guards And Chute - 60" Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler ZT

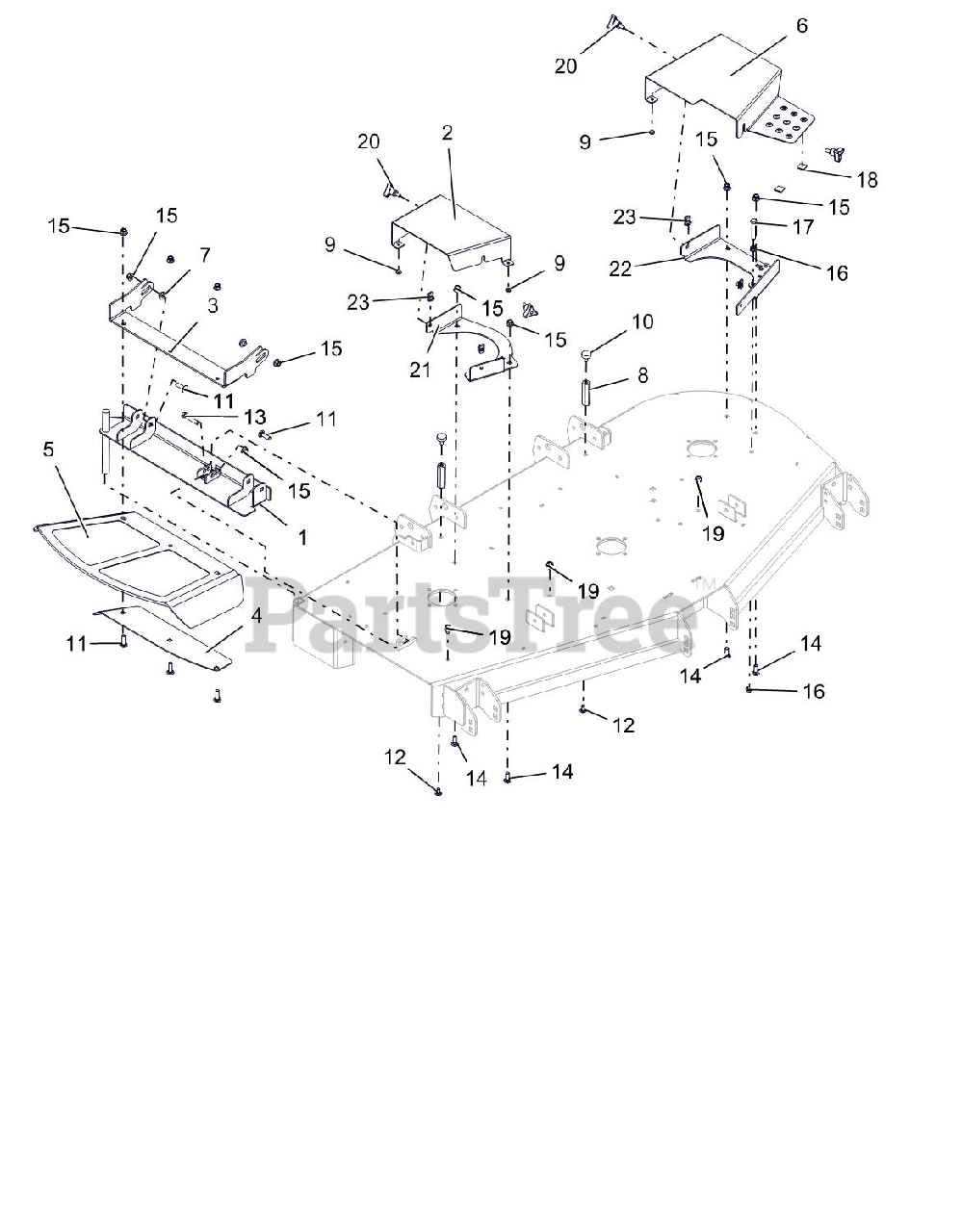

Guards And Chute - 60" Parts Diagram

  • Title
1

Gravely 59225500

48-60 DISCH CHT MTG WMT W/SAFE

$113.99

$

Usually ships in 4-12 days

0

2

Gravely 05109253

PT148-152 DECK RH BELT GRD-RED

$53.99

$

In Stock, Qty 6

0

3

Gravely 04872253

48-60" CHUTE MTG BRKT - RED

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 04873753

48-60 DISCH CHUTE CLMP PLT-RED

$25.99

$

In Stock, only 2 left!

0

5

Gravely 04881200

CHUTE,48-60" FRMD RUBBER DISCH

$75.99

$

In Stock, Qty 9

0

6

Gravely 05109453

PT100 DECK LH BELT GUARD - RED

$116.99

$

In Stock, only 1 left!

0

7

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

8

Gravely 07001812

NUT, COUPLING .31-18 2.75 LG

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

10

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

11

Gravely 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06200118

BLT-RDHDSQSHNK.31-18X.62 YZ-LK
(Superseded to 06200304)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

14

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

21

Gravely 04969253

BRKT, RH BELT GUARD MTG - RED

$44.99

$

In Stock, only 1 left!

0

22

Gravely 04969353

BRKT, LH BELT GUARD MTG - RED

$35.99

$

In Stock, only 1 left!

0

23

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available
