991132 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler ZT (SN: 100000 & Above) Engine - Kohler Confidant ZT730 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler ZT

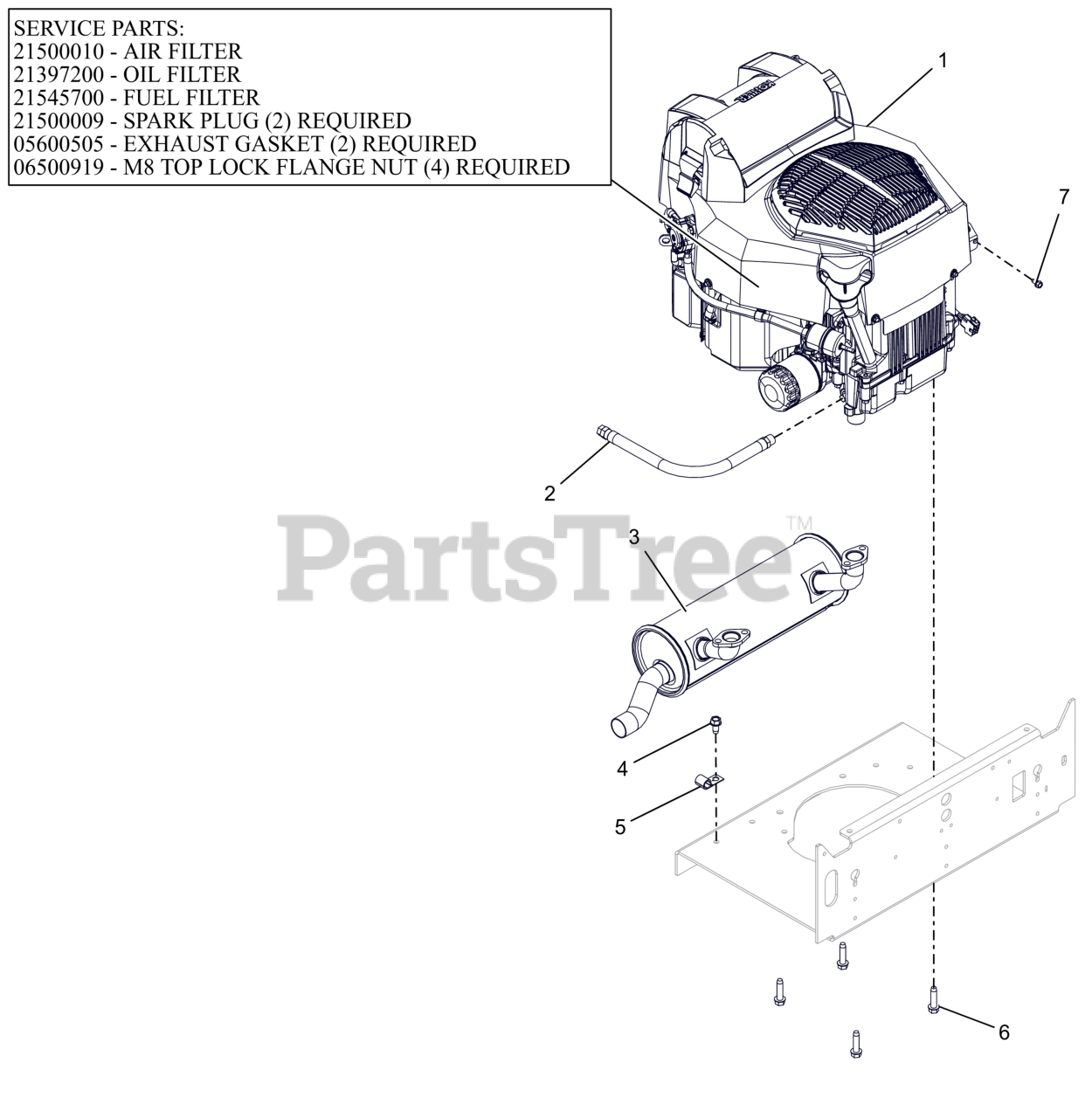

Engine - Kohler Confidant ZT730 Parts Diagram

  • Title

1

Gravely 08201029

ENGINE, KOHLER ZT730 CONFIDANT

$

$

Not available

1

Gravely 21500010

AIR CLEANER, KOHLER CONFIDANT

Note: Service Part Component

$28.99

$

In Stock, only 1 left!

0

1

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: Service Part Component

$18.99

$

In Stock, only 4 left!

0

1

Gravely 21545700

FILTER-FUEL KOHLER COURAGE PRO
(Superseded to 21539500)

Note: Service Part Component

$12.99

$

In Stock, Qty 20+

0

1

Gravely 21500009

PLUG, SPARK KOHLER

Note: Service Part Component

$10.99

$

Usually ships in 4-12 days

0

1

Gravely 05600505

GASKET, MUFFLER KOHLER TWIN

Note: Service Part Component

$9.99

$

Usually ships in 4-12 days

0

1

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Service Part Component

$2.49

$

In Stock, Qty 18

0

2

Gravely 05155100

HOSE, OIL DRAIN

$20.99

$

In Stock, only 1 left!

0

3

Gravely 04885100

MUFFLER, ZT730/ZT740

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 07400203

SCR-TAP .38-16X1.50 HWH ZCC

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
