991132 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler ZT (SN: 100000 & Above) Drive Controls Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler ZT

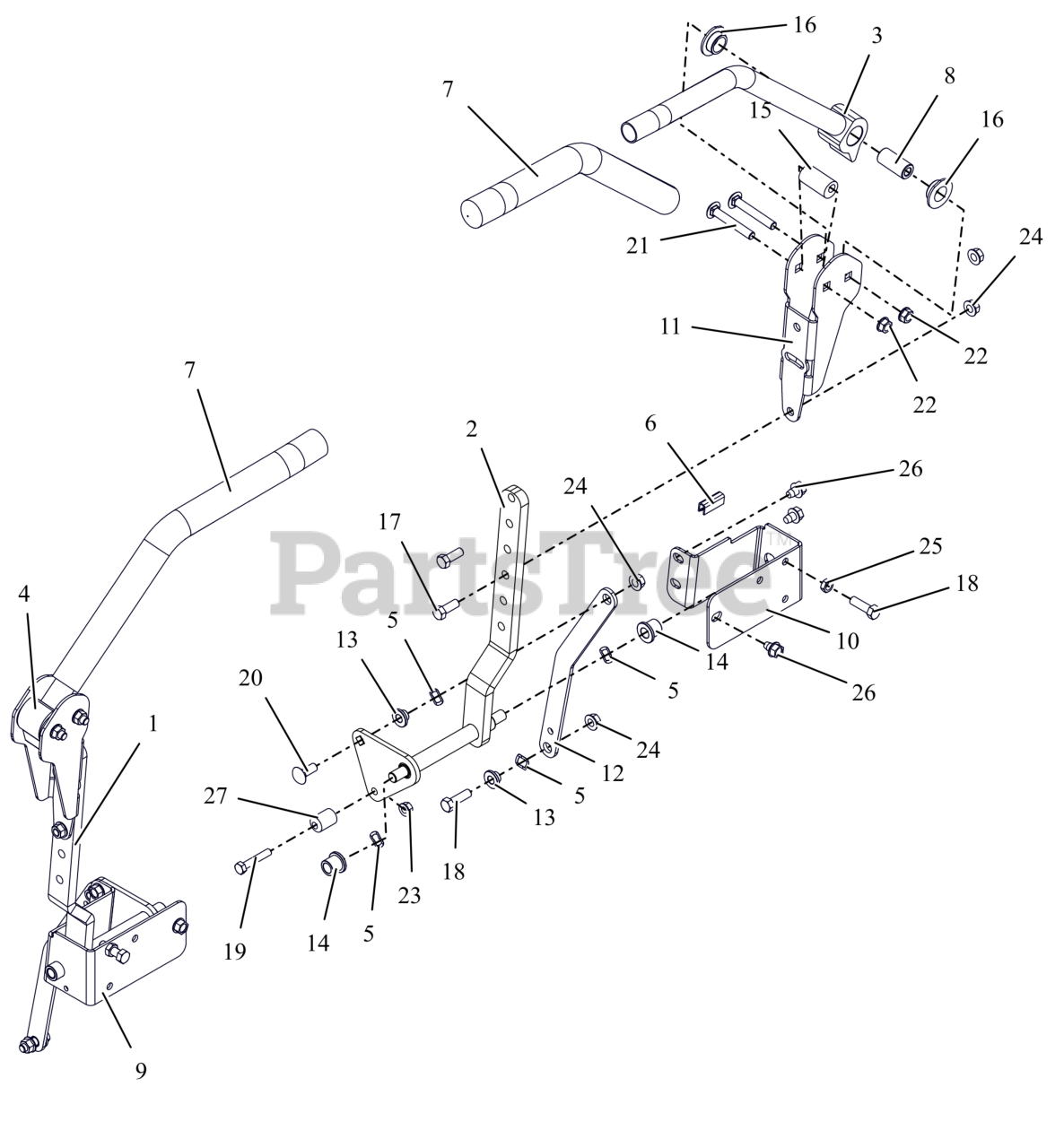

Drive Controls Parts Diagram

  • Title

1

Gravely 09468853

WLDMT, RH LOWER CONTROL ARM (RED)

$101.99

$

Usually ships in 4-12 days

0

2

Gravely 09468953

WLDMT, PT100 LH LOWER CONTROL ARM (RED)

$101.99

$

Usually ships in 4-12 days

0

3

Gravely 05261851

WLDMT, CONTROL HANDLE-LH (BLACK)

$72.99

$

Usually ships in 4-12 days

0

4

Gravely 05262151

WLDMT, CONTROL HANDLE-RH (BLACK)

$76.99

$

In Stock, only 1 left!

0

5

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 2 left!

0

8

Gravely 04413600

SPACER, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 05013153

RH PT/PT100 DRV CNTRL STOP-RED

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 05013253

LH PT/PT100 DRV CNTRL STOP-RED

$

$

Not available

11

Gravely 05068753

BRKT, ADJ UPPER CONTROL ARM (RED)

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 05073551

LINK, DRIVE CONTROL - BLACK

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

15

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$4.99

$

In Stock, only 4 left!

0

16

Gravely 05501517

BSHG, FLANGED .762 X 1.48 X .44 IGLIDER

$

$

Not available

17

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 8

0

20

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

21

Gravely 06200315

BLT, RHSSN.38-16X2.50 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

22

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0
