991132 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler ZT (SN: 100000 & Above) Deck Idlers - 48" and 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler ZT

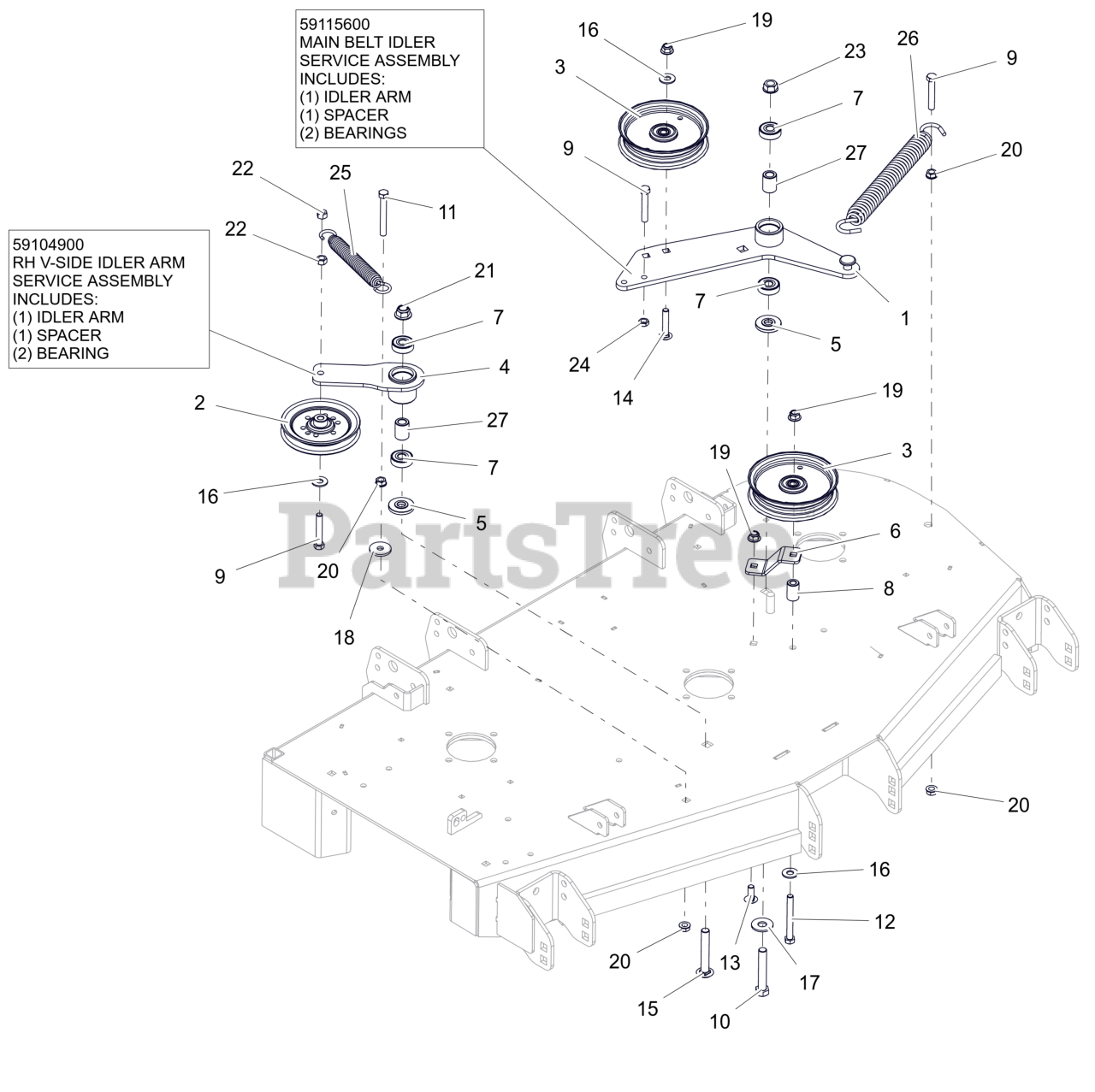

Deck Idlers - 48" and 52" Parts Diagram

  • Title

1

Gravely 04985600

WLDMT, DECK PTO IDLR ARM

$77.99

$

In Stock, only 1 left!

0

1

Gravely 59115600

ASSEMBLY, MAIN BELT IDLER

Note: Service Part Assembly

$91.99

$

Usually ships in 4-12 days

0

1

Gravely 04985600

WLDMT, DECK PTO IDLR ARM

Note: Service Part Component

$77.99

$

In Stock, only 1 left!

0

1

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$4.99

$

In Stock, Qty 8

0

1

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$5.99

$

In Stock, only 4 left!

0

2

Gravely 07351800

IDLER, V, 5.00X.38

$30.99

$

In Stock, Qty 20+

0

3

Gravely 07351200

IDLER- FLAT - 5.00" X .75"

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 09357200

WLDMT, DECK RH IDLER ARM

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 59104900

RH V-SIDE IDLER ARM ASSEMBLY

Note: Service Part Assembly

$66.99

$

In Stock, only 1 left!

0

4

Gravely 09357200

WLDMT, DECK RH IDLER ARM

Note: Service Part Component

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Service Part Component

$4.99

$

In Stock, Qty 8

0

4

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Service Part Component

$5.99

$

In Stock, only 4 left!

0

5

Gravely 04714600

SPACER, IDLER ARM

$5.99

$

In Stock, Qty 20+

0

6

Gravely 04981853

PTO FIXED IDLER MTG BRKT -RED

$9.49

$

In Stock, only 1 left!

0

7

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, only 4 left!

0

8

Gravely 05501308

BUSHING, SLV .380X.750X1.190

$4.99

$

In Stock, Qty 20+

0

9

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05901737

BLT, HEX .50-13X3.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

11

Gravely 05901814

BLT, HEX .38-16X3.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05901817

BLT, HEX .38-16X3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06200323

BLT,RHSSN.375-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06200339

BTL,RHSSN .500-13 X 3.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06401012

WSHR,FLT .563X1.375X.109 ZCC

$2.49

$

In Stock, only 2 left!

0

18

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0

19

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

25

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

26

Gravely 08300708

SPRING, EXTENSION

$19.99

$

In Stock, Qty 20+

0

27

Gravely 09357700

SPACER .510 X .867 X 1.1485

$4.99

$

In Stock, Qty 8

0
