991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Tire Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower

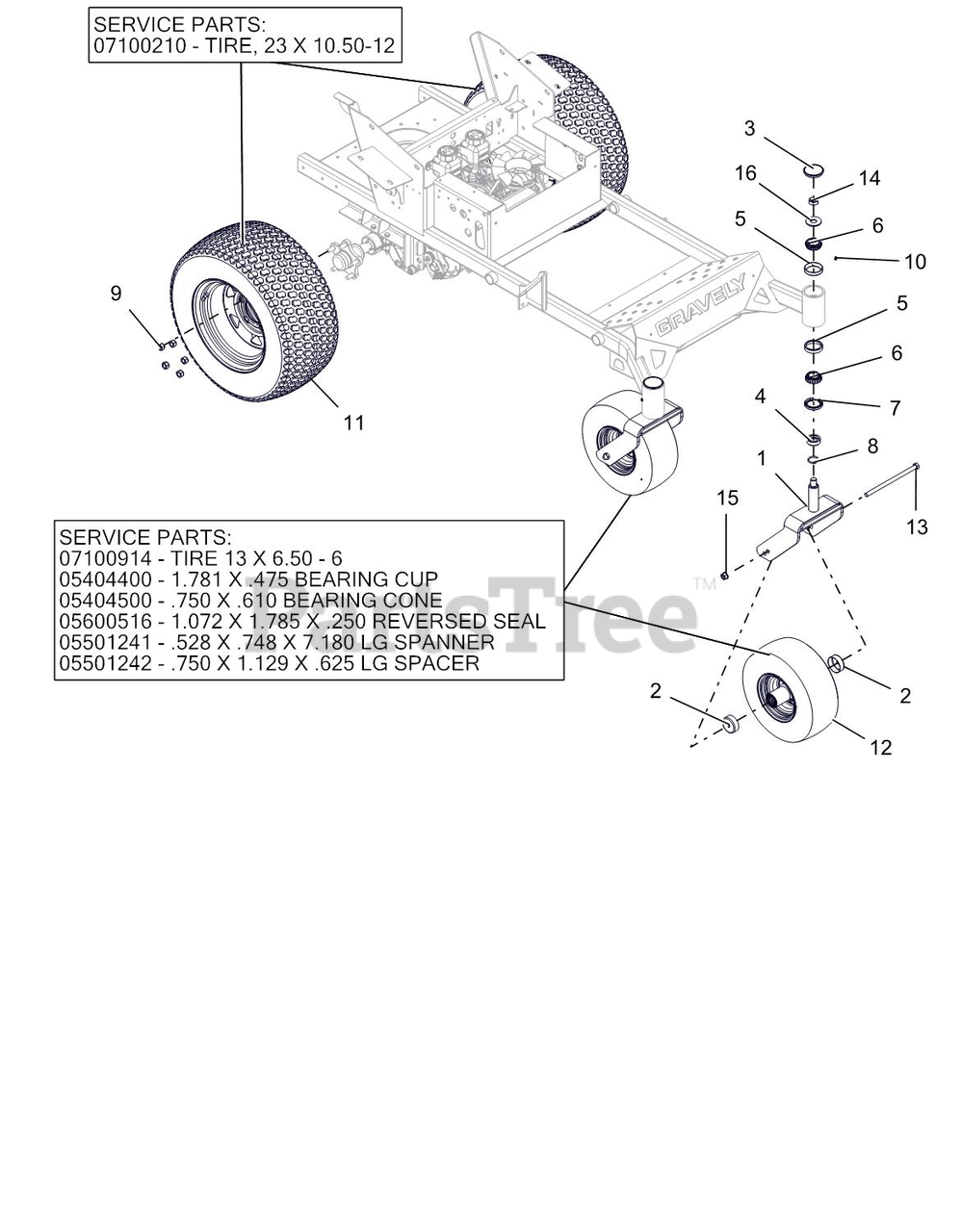

Tire Assembly Parts Diagram

  • Title
1

Gravely 03924453

WMT, CASTER FORK - RED

$180.99

$

In Stock, only 1 left!

0

2

Gravely 09357800

SHIELD, WHEEL BEARING

$9.49

$

In Stock, Qty 20+

0

3

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 2 left!

0

4

Gravely 04861500

SPCR, FRONT CASTER FORK

$14.99

$

In Stock, Qty 6

0

5

Gravely 05404600

BRG, CUP 2.328 X .465

$13.99

$

In Stock, only 2 left!

0

6

Gravely 05404700

BRG, CONE 1.250 X .660

$20.99

$

In Stock, Qty 20+

0

7

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$11.99

$

In Stock, Qty 13

0

8

Gravely 05600515

O-RING, .139 W X 1.234 ID

$2.49

$

In Stock, Qty 8

0

9

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07001727

FITTING, .250-28 FLUSH MOUNT GREASE

$3.99

$

In Stock, only 1 left!

0

11

Gravely 07100210

TIRE, 23 X 10.50-12
(Superseded to 07101043)

Note: SERVICE PART

$

$

Not available

11

Gravely 07101116

ASSM TIRE\WHEEL, 23 X 10.50 - 12

$290.99

$

In Stock, only 2 left!

0

12

Gravely 07100914

TIRE 1 X 6.50-6

Note: SERVICE PART

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 05404400

1.781 X .475 BEARING CUP

Note: SERVICE PART

$10.99

$

In Stock, Qty 20+

0

12

Gravely 05404500

.750 X .610 BEARING CONE

Note: SERVICE PART

$23.99

$

In Stock, Qty 9

0

12

Gravely 05600516

1.072 X 1.785 X .250 REVERSED SEAL

Note: SERVICE PART

$21.99

$

In Stock, Qty 9

0

12

Gravely 05501241

.528 X .748 X 7.180 LG SPANNER

Note: SERVICE PART

$30.99

$

In Stock, only 1 left!

0

12

Gravely 05501242

.750 X 1.129 X .625 LG SPACER

Note: SERVICE PART

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 07101110

ASSM TIRE\WHEEL, 13 X 6.50-6 SMOOTH

$148.99

$

In Stock, only 4 left!

0

13

Gravely 05961200

BOLT, HEX 0.5-13X9 GR5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 06500721

NUT-LK-TOP-JAM .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0
