991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Rear Bumper Parts Diagram

Pro-Turn 48" Zero-Turn Mower

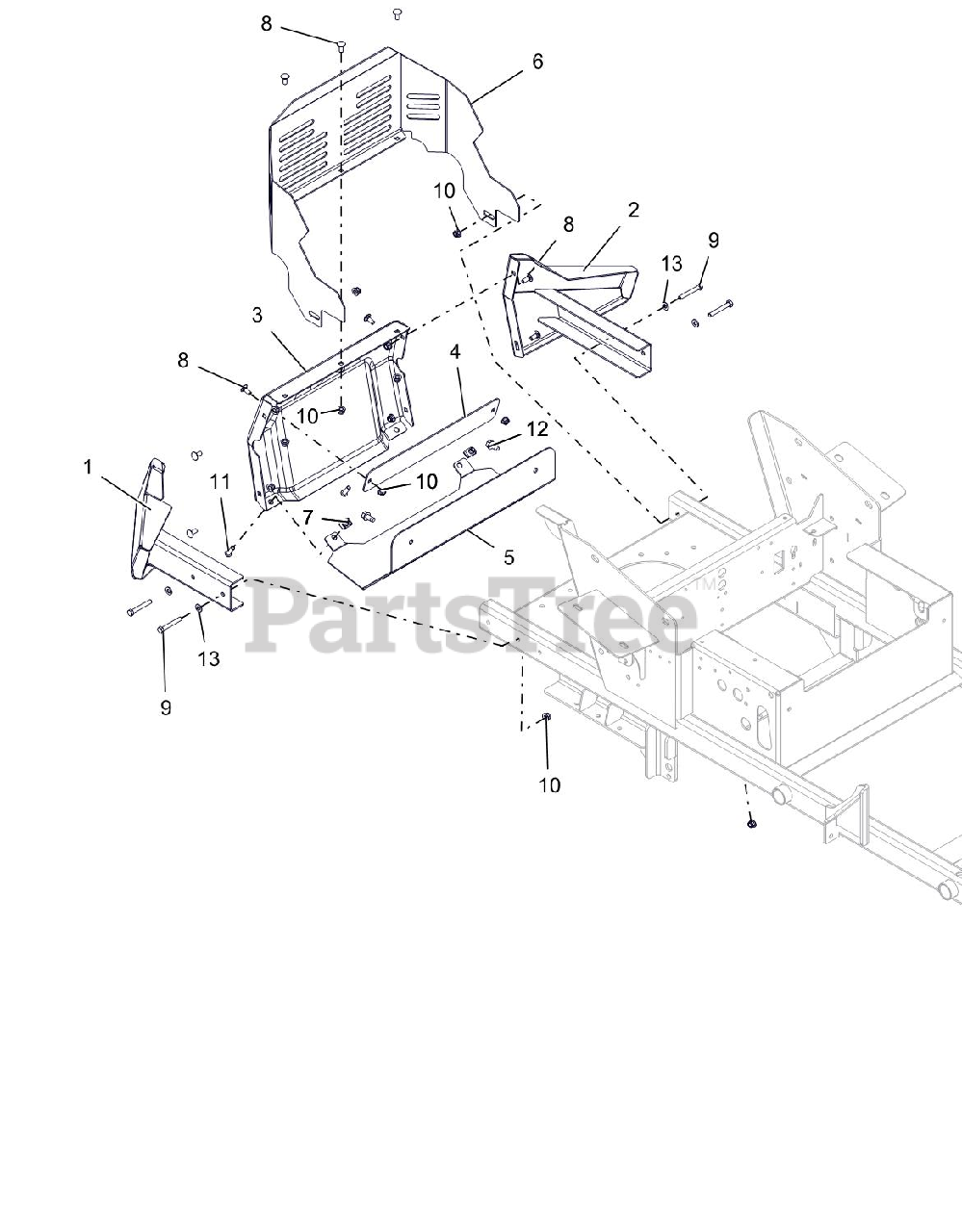

Rear Bumper Parts Diagram

  • Title

1

Gravely 59109100

RH REAR BUMPER WING W/SAFETY DECAL

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 59109000

LH REAR BUMPER WING W/SAFETY DECAL

$71.99

$

Usually ships in 4-12 days

0

3

Gravely 04863451

BUMPER, PT200/400 REAR

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 04894853

PLATE, BACKER

$

$

Not available

5

Gravely 05005351

GUARD, PT100 MUFFLER

$

$

Not available

6

Gravely 05005253

GUARD, PT100 ENGINE

$62.99

$

Usually ships in 4-12 days

0

7

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

8

Gravely 06215700

BOLT, CARRIAGE 0.3125-18X0.75 GR5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05963700

BOLT, HEX 0.313-18X2.25 GR5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05901508

SCR-SKH .31-18X1.00 BTNHD YWZC
(Superseded to 05901840)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
