991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Turn 48" Zero-Turn Mower

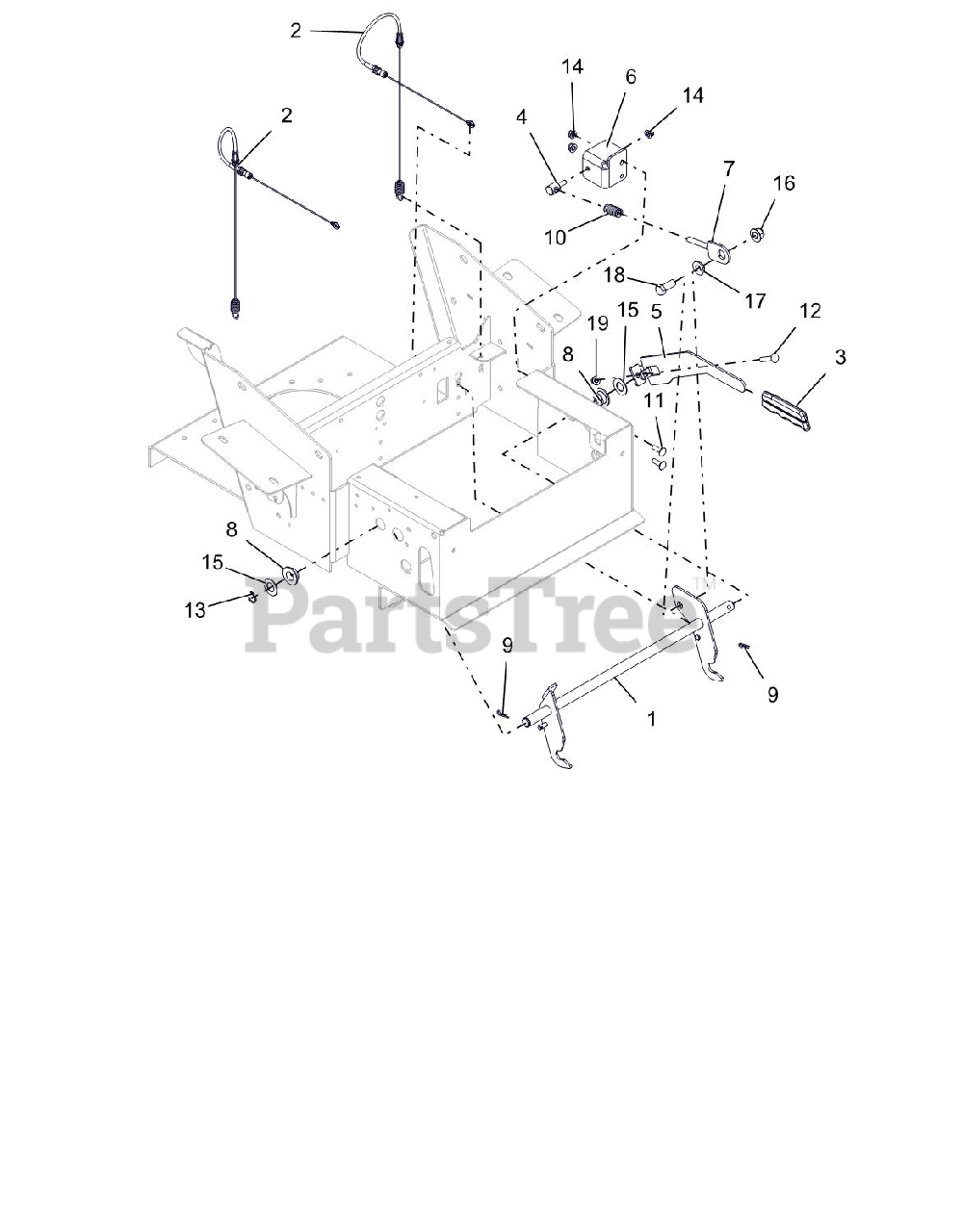

Parking Brake Parts Diagram

  • Title

1

Gravely 05066967

WLDMT, PT/PT100 BRAKE LEVER (BLACK)

$64.99

$

Usually ships in 4-12 days

0

2

Gravely 06900639

CABLE, BRAKE

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 03969667

TRUNNION, .31-18
(Superseded to 03969600)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05070751

HANDLE, PT/PT100 BRAKE (BLACK)

$14.99

$

In Stock, only 1 left!

0

6

Gravely 05093151

BRACKET, TRUNNION MTG

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 05113600

WLDMT, BRAKE

$

$

Not available

8

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

9

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 08300027

SPRG, COMPRESSION

$9.49

$

In Stock, only 2 left!

0

11

Gravely 06216100

BOLT, CARRIAGE 0.3125-18X1 GR5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06220200

BOLT, CARRIAGE 0.3125-18X1.75 GR5
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

13

Gravely 05714600

RG-RTNG-EXT .750x.078

$2.49

$

In Stock, Qty 5

0

14

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06441500

WSHR-FL-STL .755X1.375X.062 YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

18

Gravely 05958900

BOLT, HEX 0.5-13X1.25 GR5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

19

Gravely 06528700

NUT, LK-CTR-FLG .31-18 YWZC
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0
