991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Mechanical Deck Lift - Right Hand Parts Diagram

Pro-Turn 48" Zero-Turn Mower

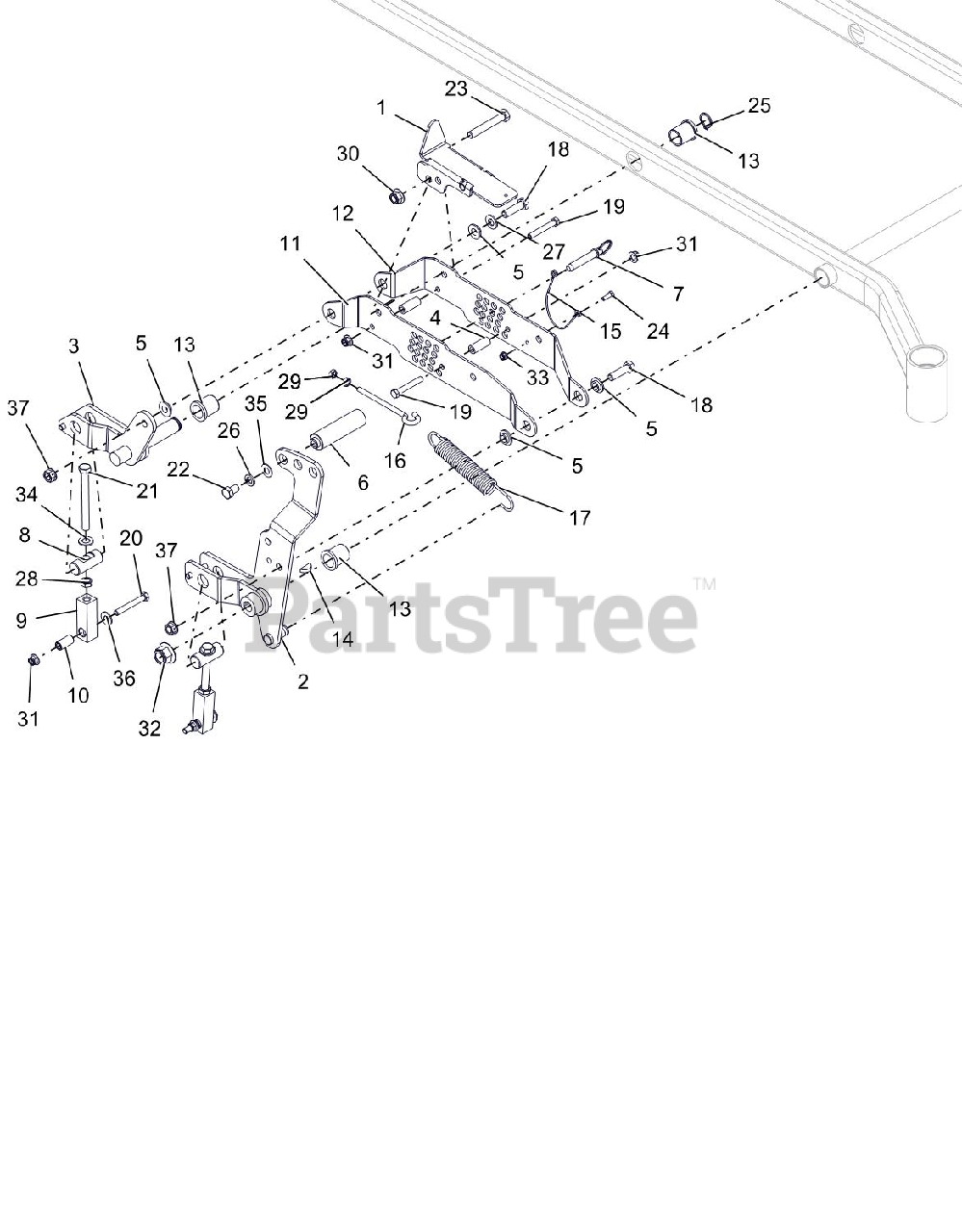

Mechanical Deck Lift - Right Hand Parts Diagram

  • Title

1

Gravely 03864051

WLDMT, MECHANICAL LOCK-UP-BLACK

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 04896967

WLDMT, FRONT RH DECK LIFT ARM (BLACK)

$142.99

$

Usually ships in 4-12 days

0

3

Gravely 05009867

WLDMT, REAR RH DECK LIFT ARM (BLACK)

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 03954800

SPACER, .375 X .625 X 1.54

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

6

Gravely 04373300

PEDAL, LIFT

$

$

Not available

7

Gravely 04822400

PIN, .500 x 2.000 USABLE LG BALL

$9.49

$

In Stock, only 2 left!

0

8

Gravely 04877700

PIN, DECK LIFT
(Superseded to 05149500)

$15.99

$

In Stock, Qty 20+

0

9

Gravely 04877800

LINK, DECK LEVELING
(Superseded to 05081400)

$15.99

$

In Stock, Qty 10

0

10

Gravely 04895200

SPCR, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

11

Gravely 05009451

BRKT, RH OUTBOARD LIFT/CUT HEIGHT

$27.99

$

Usually ships in 4-12 days

0

12

Gravely 05009551

BRKT, RH INBOARD LIFT/CUT HEIGHT (BLACK)

$22.99

$

In Stock, only 1 left!

0

13

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

14

Gravely 06608900

KEY, WDRF .25 X 1.00 HRD #15

$3.99

$

In Stock, Qty 18

0

15

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0

16

Gravely 07001640

BOLT, EYE .38-16X6.00 .62 DIA

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 08319000

SPRG, TENSION .162 X 1.250 X 8.250

$33.99

$

In Stock, Qty 6

0

18

Gravely 05970600

BOLT, HEX 0.5-13X1.75 GR5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 05958400

BOLT, HEX 0.375-16X2.5 GR5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 05963000

BOLT, HEX 0.375-16X2.75 GR8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05901622

BOLT, HEX 0.5-13X5 GR5
(Superseded to 05901925)

$4.99

$

In Stock, only 4 left!

0

22

Gravely 05971800

BOLT, HEX 0.5-13X0.75 GR5

$2.49

$

In Stock, only 1 left!

0

23

Gravely 05960000

BOLT, HEX 0.5-13X3.25 GR5
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 05946800

BOLT, HEX 0.25-20X0.75 GR5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

25

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

26

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

27

Gravely 06401015

WSHR-FL-STL .531X1.062X.095 ZC120

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06500717

NUT-LK-NYL-FLG .75-10 YWZC
(Superseded to 06500931)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

34

Gravely 06400418

WSHR-FL-STL .557X1.040X.102 YWZC HARD
(Superseded to 06401116)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZC
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06530008

NUT-LK-CTR-FLG .50-13 YWZC
(Superseded to 06500902)

$1.49

$

In Stock, Qty 20+

0
