991131 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 000101 & Above) Deck Mount Parts Diagram

Pro-Turn 48" Zero-Turn Mower

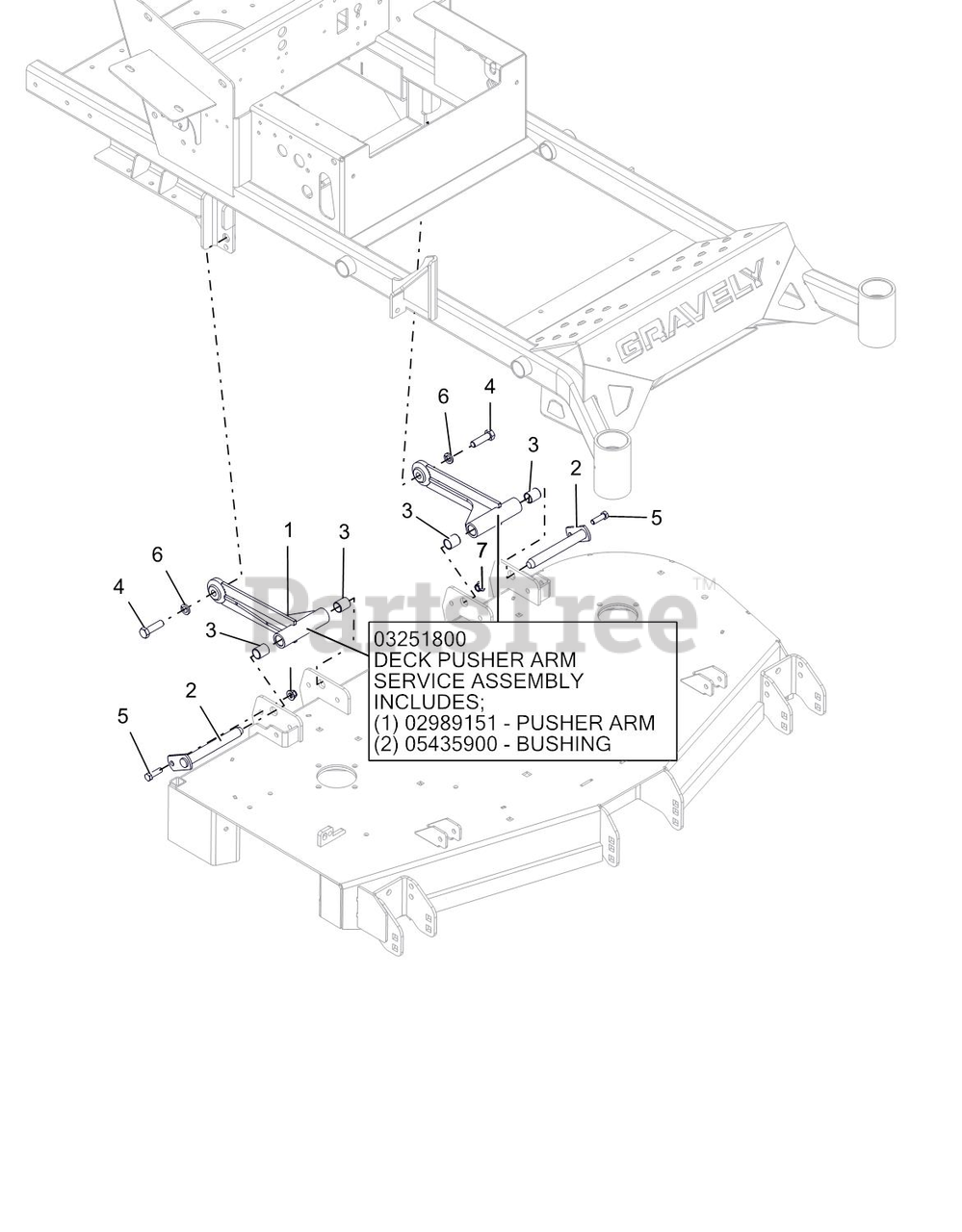

Deck Mount Parts Diagram

  • Title
1

Gravely 02989151

DECK PUSHER ARM WLDMT - BLK

$108.99

$

Usually ships in 4-12 days

0

1

Gravely 03251800

DECK PUSHER ARM SERVICE ASSEMBLY

Note: SERVICE PART

$125.99

$

In Stock, only 2 left!

0

1

Gravely 02989151

PUSHER ARM

Note: SERVICE PART

$108.99

$

Usually ships in 4-12 days

0

1

Gravely 05435900

BUSHING

Note: SERVICE PART

$5.99

$

In Stock, only 3 left!

0

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

In Stock, only 1 left!

0

3

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 3 left!

0

4

Gravely 05901436

BOLT, HEX 0.5-13X1.75 GR5
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 05958000

BOLT, HEX 0.375-16X1.25 GR5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

7

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
