991130 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki FX (SN: 010000 - 016999) Engine - Kawasaki FX730 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki FX

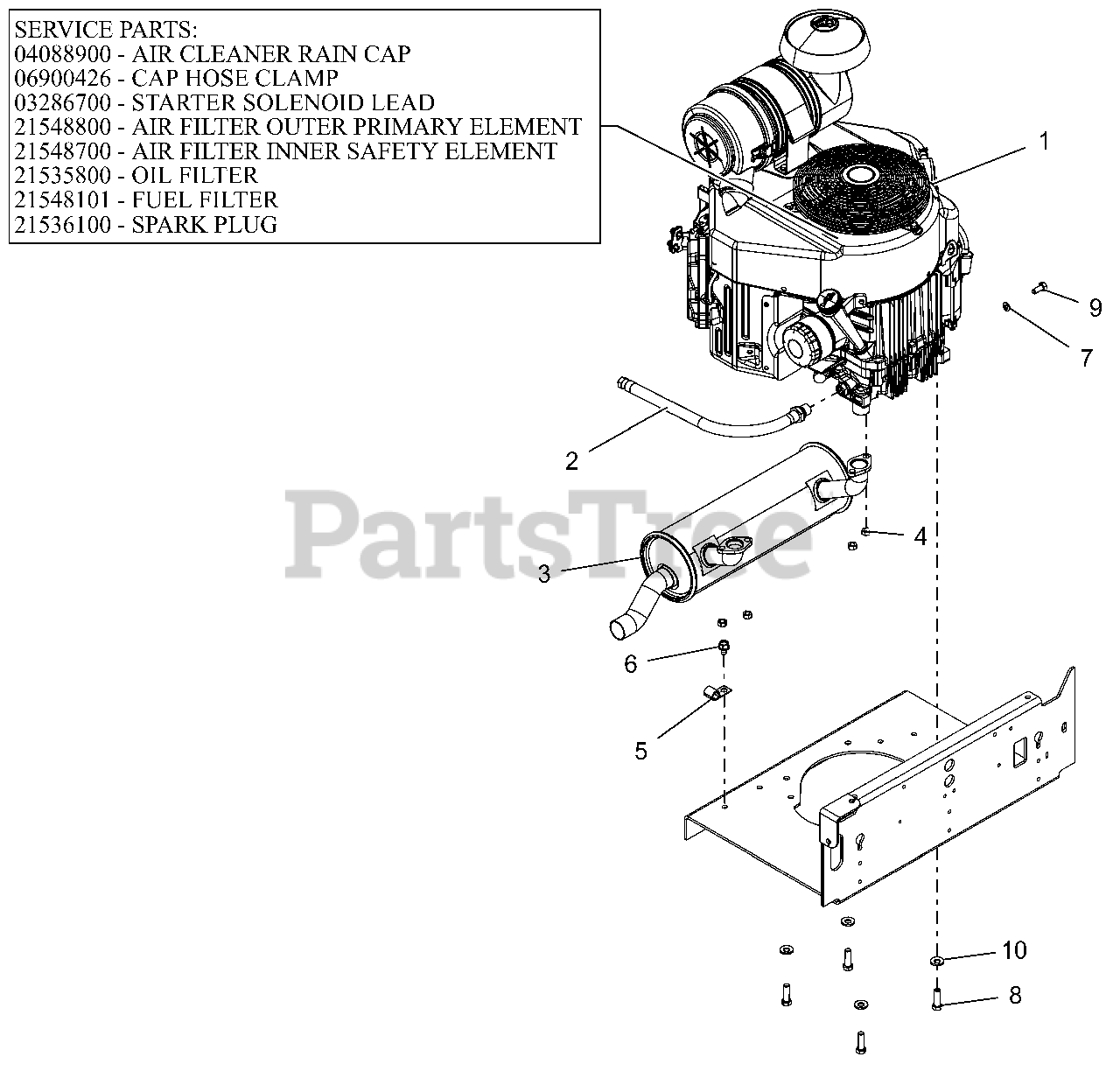

Engine - Kawasaki FX730 Parts Diagram

  • Title

1

Gravely 08200722

ENGINE, KAWASAKI FX730

$

$

Not available

1

Gravely 04088900

CAP, KAW 11065-7025

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

1

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: SERVICE PART

$

$

Not available

1

Gravely 03286700

LEAD - STARTER SOLENOID

Note: SERVICE PART

$9.49

$

Usually ships in 4-12 days

0

1

Gravely 21548800

FILTER, OUTER

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21548700

FILTER, INNER - KAW

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

1

Gravely 21536100

PLUG, SPARK

Note: SERVICE PART

$3.49

$

In Stock, only 1 left!

0

2

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 04885200

MUFFLER, KAW FX691/730

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

5

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

9

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$

$

Not available

10

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0
