991129 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 094000 - 099999) 09184700 ZT - 3400 Transmission Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

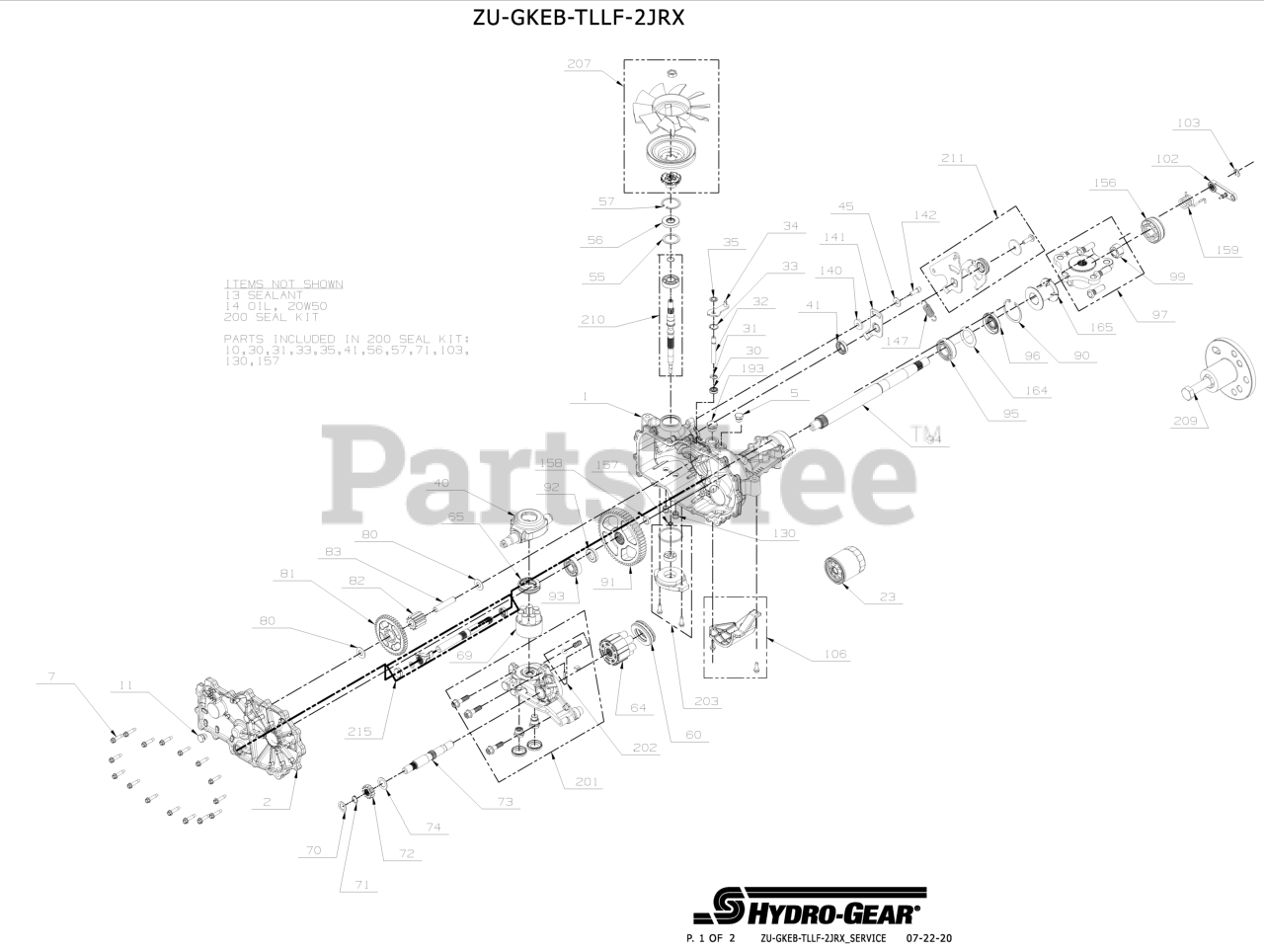

09184700 ZT - 3400 Transmission Parts Diagram

  • Title

1

KIT, MAIN HOUSING RH, CHARGE, CONTROL

Note: Hydro-Gear Part  73244

$

$

Not available

2

KIT, COVER, SIDE RH

Note: Hydro-Gear Part  73255

$

$

Not available

5

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.49

$

In Stock, only 3 left!

0

11

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Recommended Transmission Oil. Approximately 72 oz

$14.99

$

In Stock, Qty 16

0

14

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional  Transmission Oil. Approximately 72 0z

$

$

Not available

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$

$

Not available

30

Gravely 21500013

Seal, lip .375 x 375 x 325

$

$

Not available

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 5

0

32

ROD, BYPASS

Note: Hydro-Gear Part  52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

$14.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

$3.99

$

In Stock, only 1 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

$5.99

$

Usually ships in 4-12 days

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$14.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$77.99

$

In Stock, only 1 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

$86.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$

$

Not available

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear Part  44145

$

$

Not available

72

GEAR, 13T, STEEL

Note: Hydro-Gear Part  52342

$

$

Not available

73

SHAFT, MOTOR

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR, 46T

Note: Hydro-Gear Part  52343

$

$

Not available

82

GEAR 11 TOOTH STEEL

Note: Hydro-Gear Part  52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$9.49

$

Usually ships in 4-12 days

0

91

Gravely 21500035

GEAR, 54T

$68.99

$

Usually ships in 4-12 days

0

92

SPACER

Note: Hydro-Gear Part  53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$22.99

$

Usually ships in 4-12 days

0

94

Gravely 21500039

SHAFT, AXLE

$146.99

$

Usually ships in 4-12 days

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$23.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP

$16.99

$

In Stock, only 3 left!

0

97

Gravely 21544023

HUB, HYDROGEAR P/N 71691

$90.99

$

In Stock, only 2 left!

0

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

$7.49

$

Usually ships in 4-12 days

0

102

Gravely 21544037

BRAKE ARM HG 71957

$15.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$5.99

$

In Stock, only 2 left!

0

106

KIT FILTER GUARD

Note: Hydro-Gear Part  73041

$

$

Not available

130

TUBE CHARGE TRIPLE ORING

Note: Hydro-Gear Part  54501

$

$

Not available

140

Gravely 21543870

SPACER

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

$11.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Gravely 21544041

RTN SPRING HG 51605

$

$

Not available

156

Gravely 21500034

CAP, AXLE

$

$

Not available

157

KIT GEROTOR SEAL

Note: Hydro-Gear Part  72291

$

$

Not available

158

Gravely 21543799

MAGNET, RING

$2.49

$

Usually ships in 4-12 days

0

159

Gravely 21544052

SPRING, TORSION CCW

$11.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear Part  53514

$

$

Not available

165

Gravely 21500037

TUBE, AXLE 2.03

$

$

Not available

193

PLUG, 3/4-16

Note: Hydro-Gear Part  54974

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

$

$

Not available

201

Gravely 21500072

KIT CNTR SEC RH CHARGE

$323.99

$

Usually ships in 4-12 days

0

202

KIT CHARGE RELIEF

Note: Hydro-Gear Part  71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

$109.99

$

Usually ships in 4-12 days

0

207

Gravely 21544079

KIT, FAN/PULLEY

Note: Optional Service Tool

$64.99

$

Usually ships in 4-12 days

0

209

Gravely 21544008

HUB PULLER 5 BLT

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544039

INPUT SHAFT HG 71978

$

$

Not available

211

Gravely 21544002

RTN KIT HYDROGEAR P/N 71597

$35.99

$

Usually ships in 4-12 days

0

215

KIT, OUTBOARD, RH ROT A / LH ROT B

Note: Hydro-Gear Part 73118

$

$

Not available
