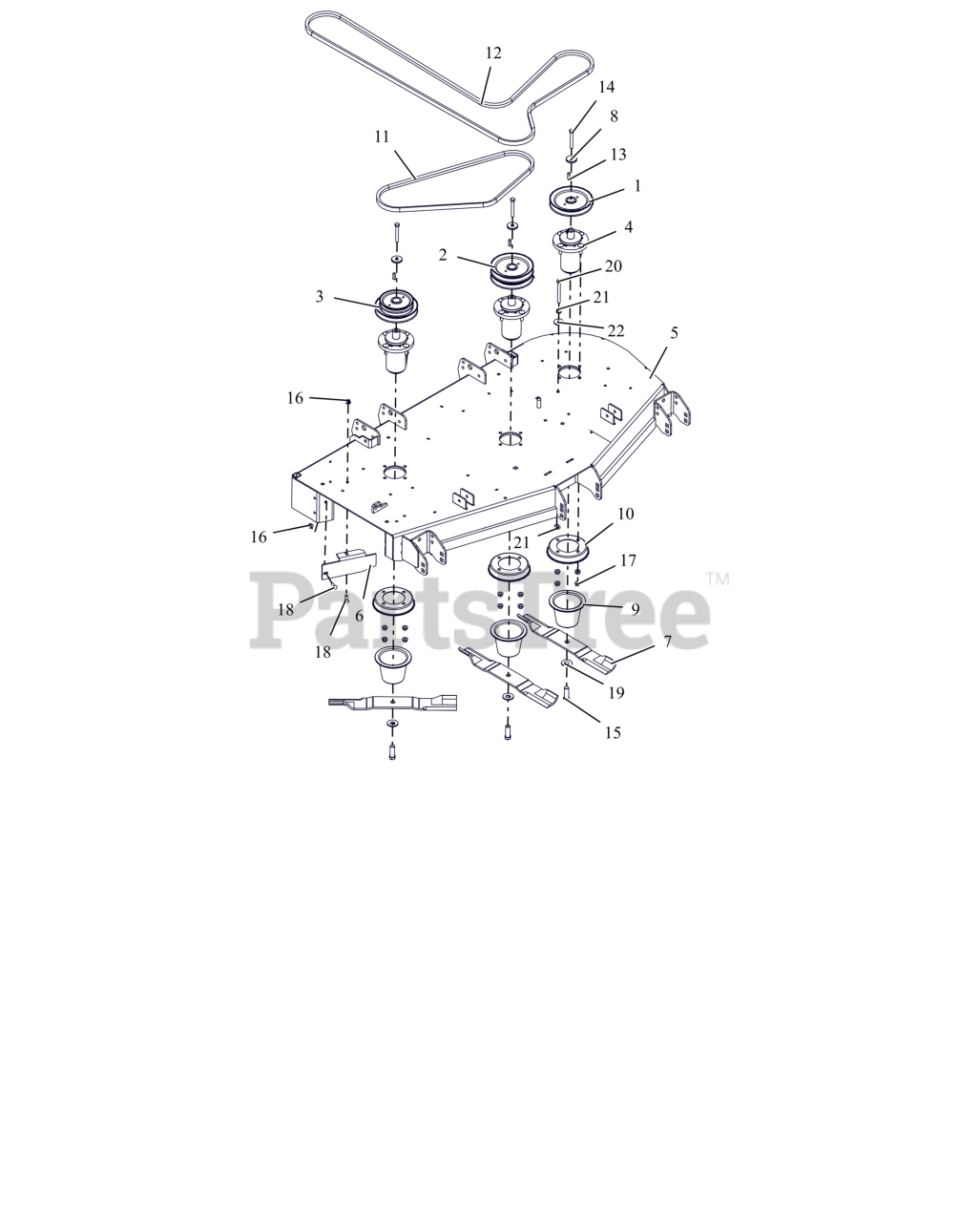

991129 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Deck, Belts, Baffles, Blades and Spindles - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

Deck, Belts, Baffles, Blades and Spindles - 52" Parts Diagram

  • Title

1

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

2

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

3

Gravely 07340300

PULLEY, DBL-1"IDX6.00"&4.75"OD

$69.99

$

Usually ships in 4-12 days

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 59117100

WLDMT, PT152 SIDE DISCH DECK (RED)

$943.99

$

Usually ships in 0 days

0

6

Gravely 00440853

52" DISCHARGE BAFFLE - RED

$37.99

$

Usually ships in 4-12 days

0

7

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

8

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

9

Gravely 05011500

GUARD, SPINDLE LOWER

$

$

Not available

10

Gravely 05017000

GUARD, SPINDLE TOP

$

$

Not available

11

Gravely 07200036

V-BELT, B-COGGED

$62.99

$

In Stock, Qty 15

0

12

Gravely 07200706

BELT, B-SECTI0N EPDM RAW EDGE

$116.99

$

In Stock, only 1 left!

0

13

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

20

Gravely 05901818

BLT, HEX .38-16X3.50 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

21

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, only 1 left!

0
