991129 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 017000 - 089999) Guards - 48" And 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

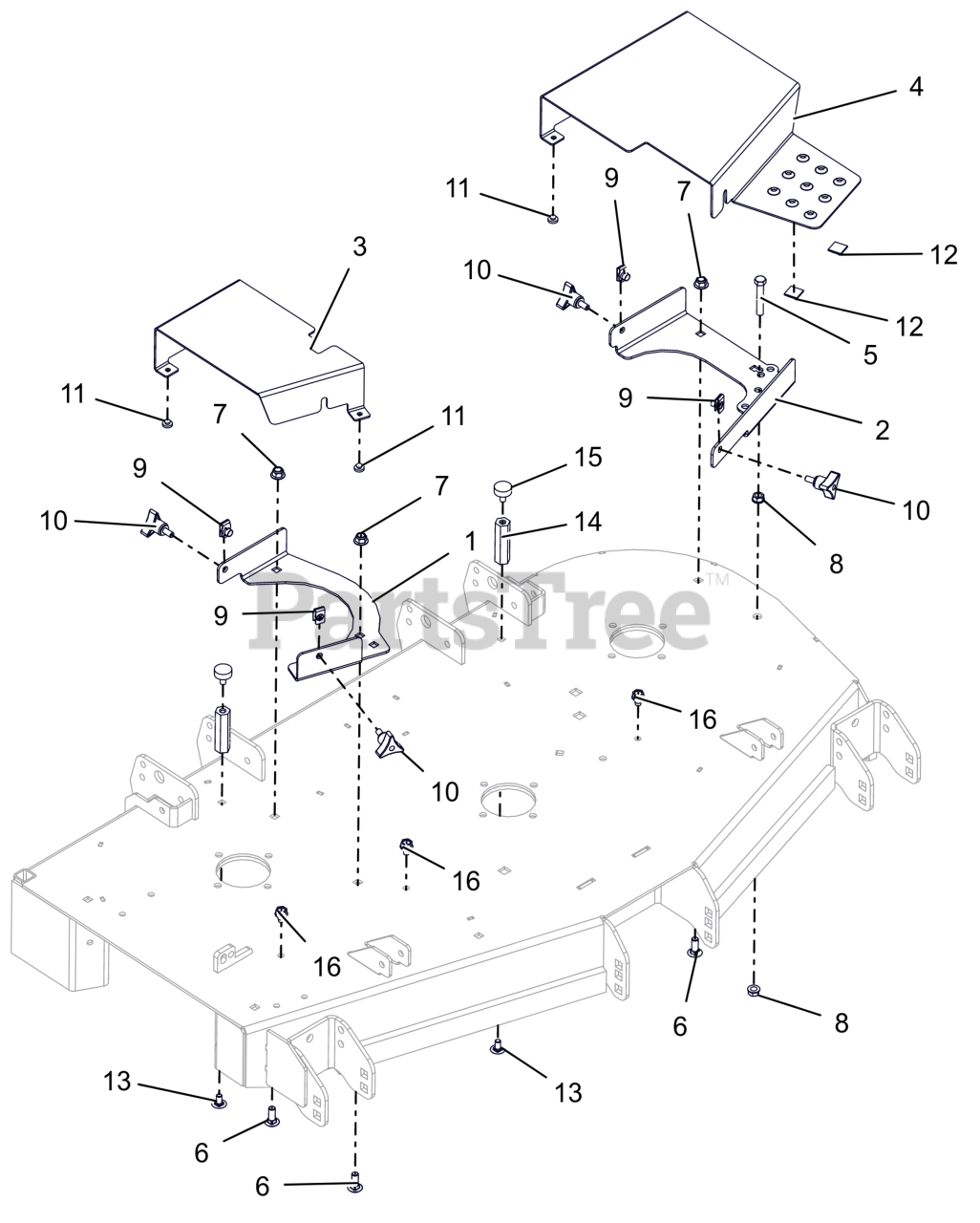

Guards - 48" And 52" Parts Diagram

  • Title

1

Gravely 04969253

BRKT, RH BELT GUARD MTG - RED

$44.99

$

In Stock, only 1 left!

0

2

Gravely 04969353

BRKT, LH BELT GUARD MTG - RED

$35.99

$

In Stock, only 1 left!

0

3

Gravely 05109253

PT148-152 DECK RH BELT GRD-RED

$53.99

$

In Stock, Qty 6

0

4

Gravely 05109453

PT100 DECK LH BELT GUARD - RED

$116.99

$

In Stock, only 1 left!

0

5

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

6

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

7

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07000829

NUT-CLIP RETAINER 5/16-18X.56

$

$

Not available

10

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

11

Gravely 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

12

Gravely 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07001812

NUT, COUPLING .31-18 2.75 LG

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

16

Gravely 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
