991129 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki FX (SN: 000101 - 009999) Anti-Scalp Wheels - 52" Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki FX

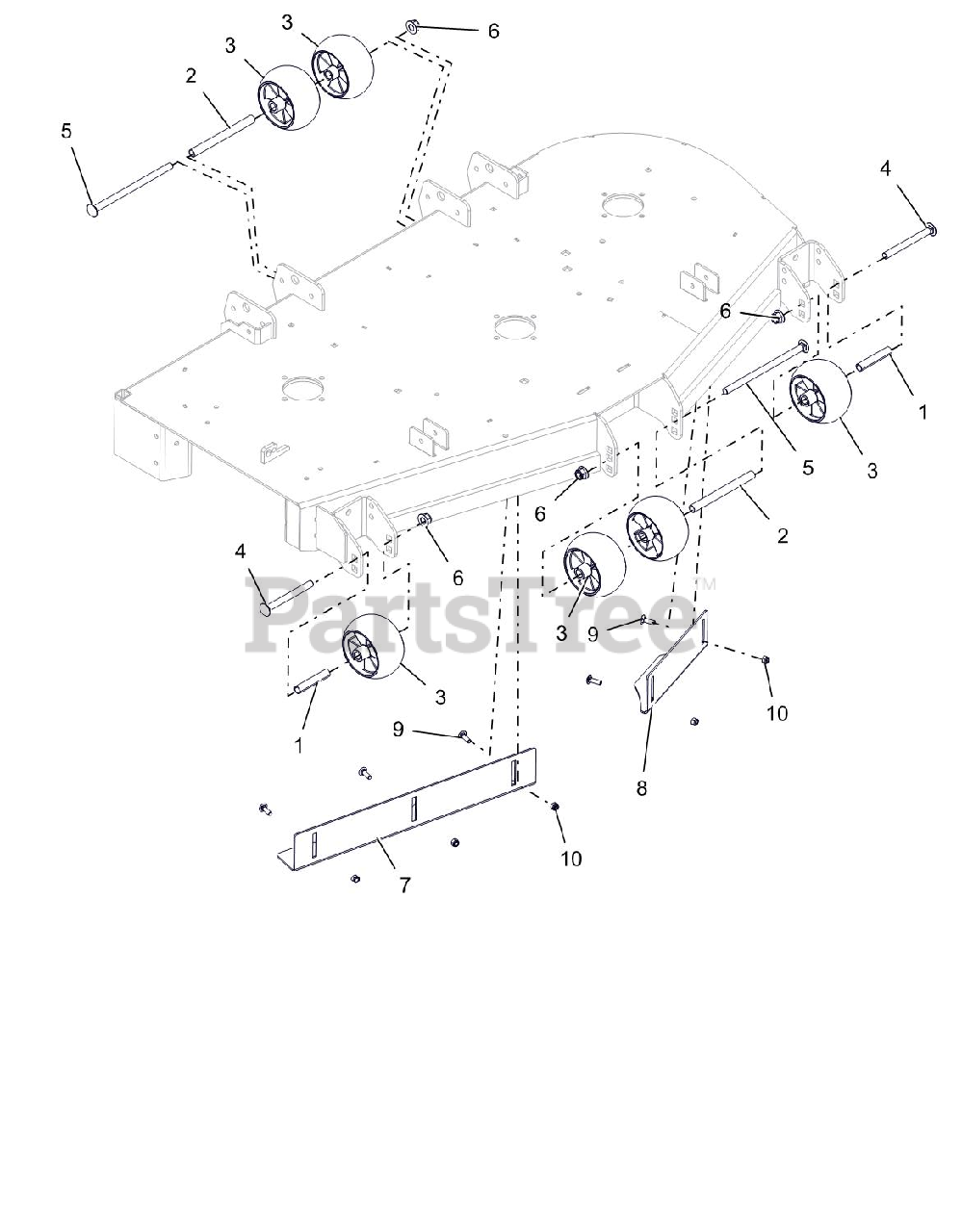

Anti-Scalp Wheels - 52" Parts Diagram

  • Title
1

Gravely 00473700

SPACER, .510X.625X3.35

$18.99

$

In Stock, Qty 20+

0

2

Gravely 00473800

SPACER, .510X.625X6.50

$21.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$11.99

$

In Stock, Qty 20+

0

4

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06206400

@BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00952851

52" RH VACUUM BAFFLE - BLK
(Superseded to 05251751)

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 00952951

52" LH VACUUM BAFFLE - BLK
(Superseded to 05251851)

$36.99

$

In Stock, only 1 left!

0

9

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
