991128 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 100000 & Above) Engine - Kawasaki FX691 Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

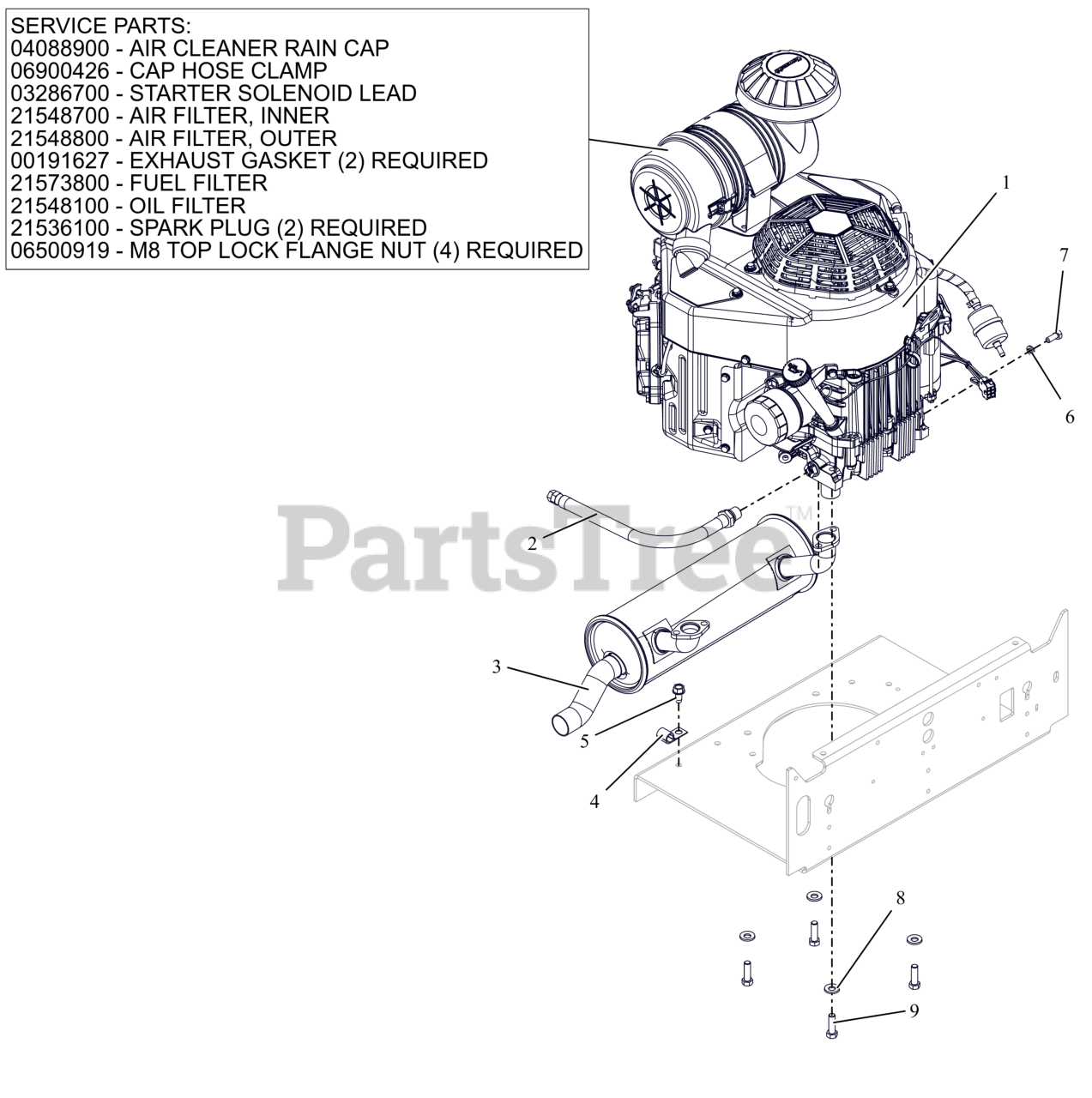

Engine - Kawasaki FX691 Parts Diagram

  • Title

1

Gravely 08201418

ENGINE, KAWASAKI FW691

$

$

Currently unavailable

1

Gravely 04088900

CAP, KAW 11065-7025

Note: Component Service Part

$59.99

$

Usually ships in 4-12 days

0

1

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

Note: Component Service Part

$

$

Not available

1

Gravely 03286700

LEAD - STARTER SOLENOID

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

1

Gravely 21548800

FILTER, OUTER

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21548700

FILTER, INNER - KAW

Note: Component Service Part

$27.99

$

In Stock, Qty 20+

0

1

Gravely 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

In Stock, Qty 20+

0

1

Gravely 21573800

FUEL FILTER

Note: Component Service Part

$

$

Not available

1

Gravely 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$7.99

$

In Stock, only 2 left!

0

1

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

Note: Component Service Part

$2.49

$

In Stock, Qty 18

0

2

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 04885200

MUFFLER, KAW FX691/730

$148.99

$

Usually ships in 4-12 days

0

4

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

8

Gravely 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

9

Gravely 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0
