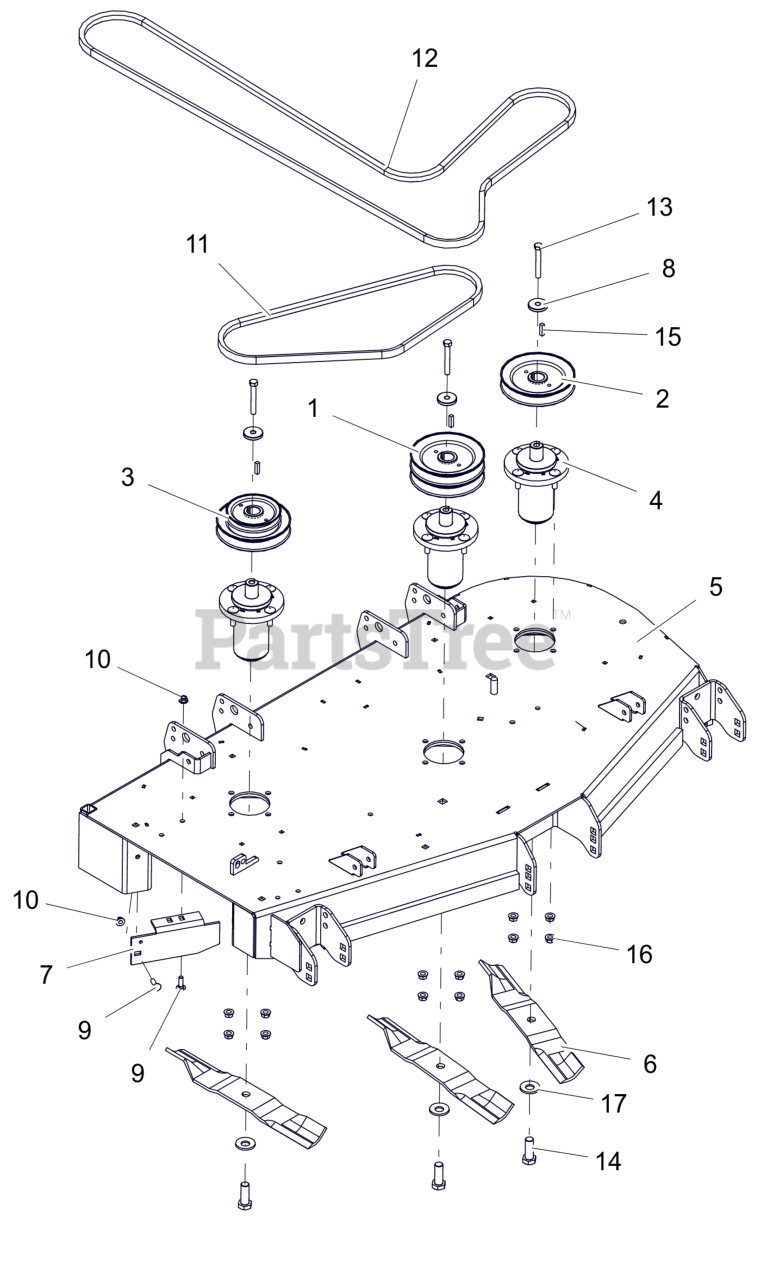

991128 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 100000 & Above) Deck, Belts, Baffle, Blades and Spindles - 48" Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

Deck, Belts, Baffle, Blades and Spindles - 48" Parts Diagram

  • Title

1

Gravely 07329200

PULLEY, DOUBLE 1.000 ID X 5.750 OD

$80.99

$

In Stock, only 1 left!

0

2

Gravely 07329300

PULLEY, V - 1.000 ID X 5.750 OD

$68.99

$

In Stock, Qty 18

0

3

Gravely 07340200

PULLEY, DBL-1"IDX5.75"&4.25"OD

$62.99

$

In Stock, only 1 left!

0

4

Gravely 58810800

ASM, MAINT FREE ALUM SPINDLE

$239.99

$

In Stock, Qty 20+

0

5

Gravely 59117000

WLDMT, PT148 SIDE DISCH DECK (RED)

$853.99

$

Usually ships in 4-12 days

0

6

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

7

Gravely 00451653

44"-48" SIDE DISCH BAFFLE -RED

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

9

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07200035

V-BELT, B-COGGED

$54.99

$

Usually ships in 4-12 days

0

12

Gravely 07200809

V-BELT, B RAW EDGE EPDM

$108.99

$

In Stock, only 1 left!

0

13

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05901822

BLT, HEX .62-18X1.75 G8 ZCC

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0
