991128 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 094000 - 099999) Deck Lift - LH Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

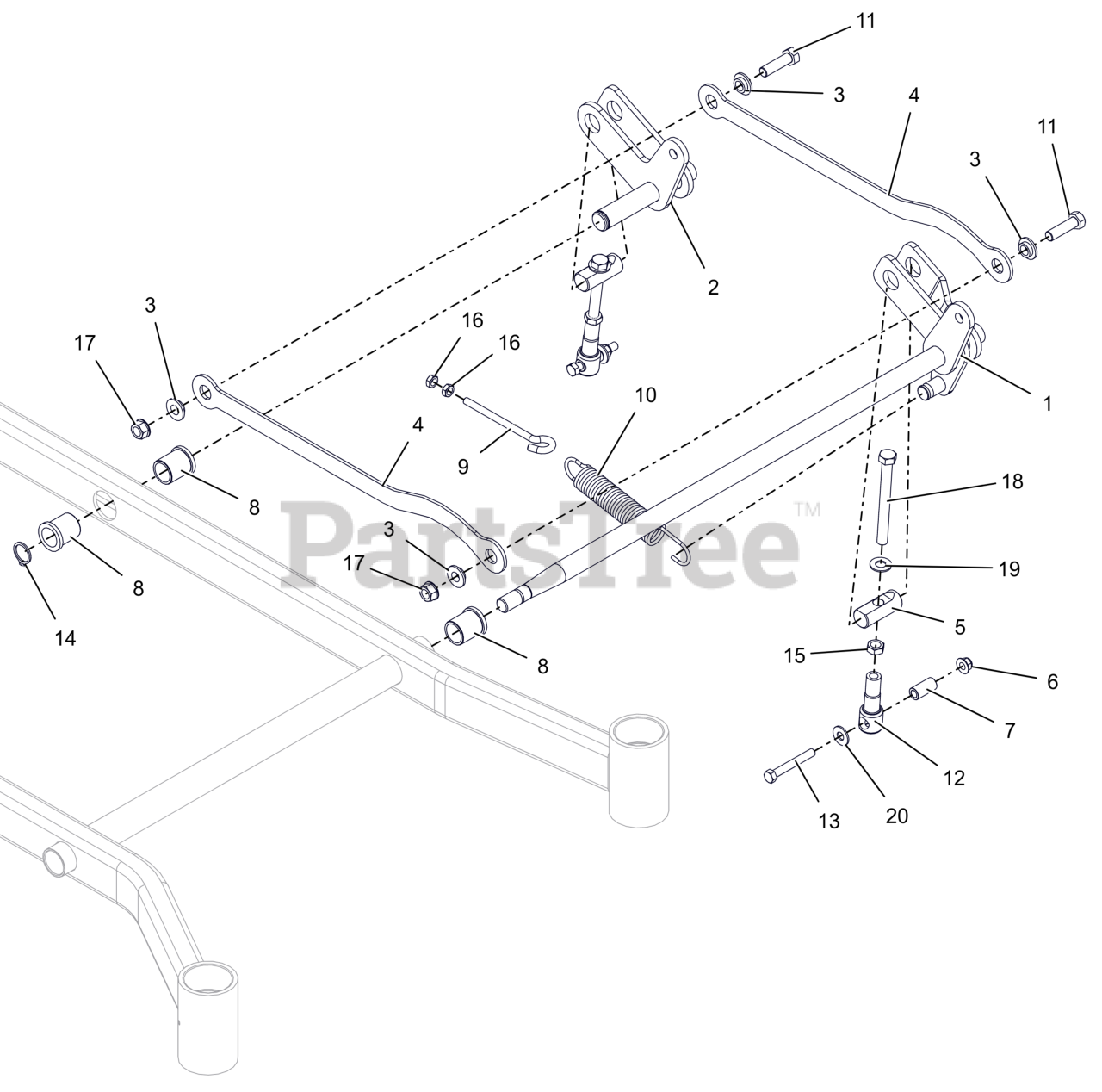

Deck Lift - LH Parts Diagram

  • Title

1

Gravely 05009667

FRT LH DECK LIFT ARM WMT- LF

$168.99

$

Usually ships in 4-12 days

0

2

Gravely 05009767

REAR LH DECK LIFT ARM WMT- LF

$64.99

$

Usually ships in 4-12 days

0

3

Gravely 03989100

BSHG-FLG .515X.750X.310X1.120

$3.49

$

In Stock, Qty 20+

0

4

Gravely 04660351

LINK, LIFT

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 05149500

PIN, DECK LIFT

$15.99

$

In Stock, Qty 20+

0

6

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04895200

SPACER, DECK LEVELING

$2.49

$

In Stock, Qty 20+

0

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Gravely 07001640

BOLT,.38-16 X 4.25-.62 DIA EYE

$16.99

$

Usually ships in 4-12 days

0

10

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

11

Gravely 05901939

BLT, HEX .50-13X1.75 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

12

Gravely 05081400

LINK, DECK LIFT FORMED

$15.99

$

In Stock, Qty 10

0

13

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

15

Gravely 06500911

NUT-JAM .500-13 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500910

NUT-JAM .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05901925

BLT, HEX 0.5-13X5S GR5 ZCC

$4.99

$

In Stock, only 4 left!

0

19

Gravely 06401116

WSHR, FLT .557X1.040X.102 ZCC

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0
