991128 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 090000 - 091999) Electrical - EFI and Non-EFI Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

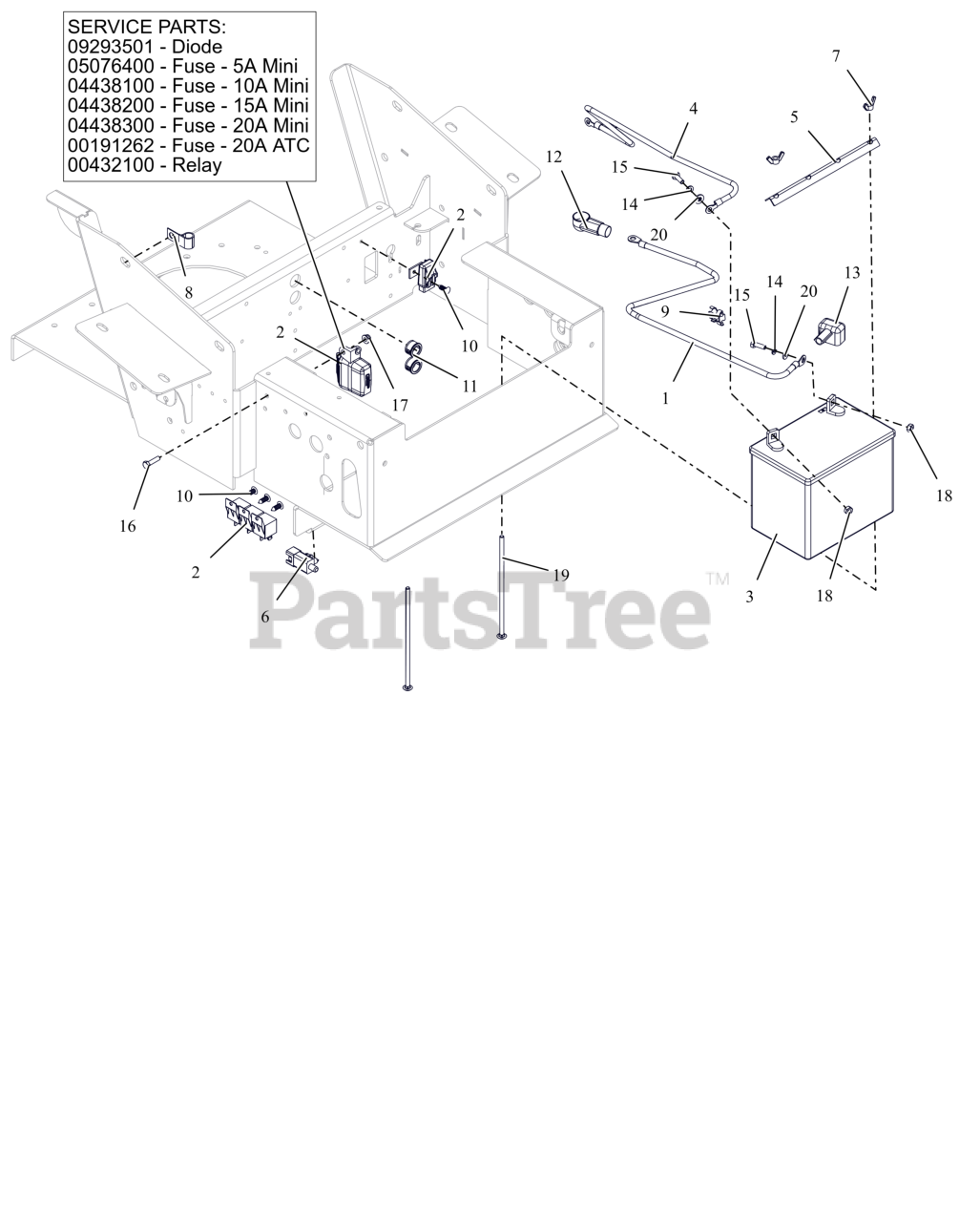

Electrical - EFI and Non-EFI Parts Diagram

  • Title

1

Gravely 04787200

CABLE,POS W/(2) 5/16 RING 30LG

$

$

Not available

2

Gravely 05148800

HARNESS, PT100 WIRE

$227.99

$

Usually ships in 4-12 days

0

3

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

4

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

5

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, only 2 left!

0

6

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$14.99

$

In Stock, only 1 left!

0

7

Gravely 06500805

NUT, LK-WING .25-20 ZCC

$4.99

$

In Stock, Qty 19

0

8

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 07001622

CLIP,T,.31-.38,

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 07500125

RIVET, .25 NYLON PANEL

$1.49

$

In Stock, Qty 18

0

11

Gravely 07500126

BUSH, PANEL SNAP .687X.875X.56

$3.99

$

In Stock, only 2 left!

0

12

Gravely 07500401

BOOT, .65ID POS

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.49

$

In Stock, Qty 9

0

17

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

18

Gravely 06500916

NUT-STD .250-20 G2 ZCC

$0.99

$

In Stock, Qty 13

0

19

Gravely 06200424

BTL,RHSN .250-20 X 7.5 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0
