991128 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki FX (SN: 010000 - 016999) Drive Controls Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki FX

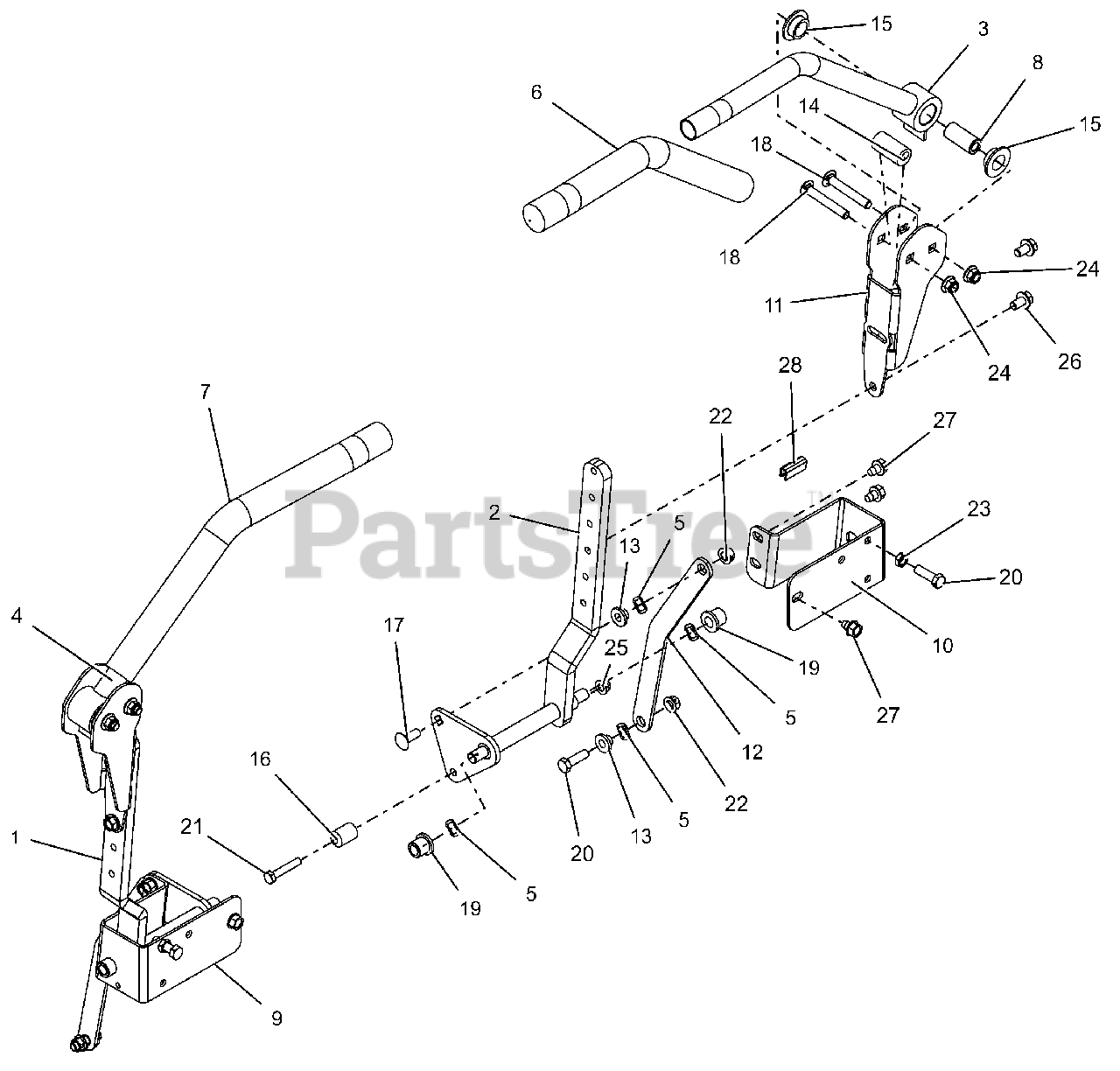

Drive Controls Parts Diagram

  • Title

1

Gravely 05066700

WMT,PT/PT100RH LOWER CNTRL ARM

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 05066800

WMT,PT/PT100LH LOWER CNTRL ARM

$83.99

$

Usually ships in 4-12 days

0

3

Gravely 05068551

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05262151)

$76.99

$

In Stock, only 1 left!

0

4

Gravely 05068651

WLDMT, CONTROL HANDLE- BLK
(Superseded to 05261851)

$72.99

$

Usually ships in 4-12 days

0

5

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

6

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 1 left!

0

7

Gravely 04383600

GRIP, HANDLEBAR

$35.99

$

In Stock, only 1 left!

0

8

Gravely 04413600

SPACER, STEERING ARM

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 05013153

RH PT/PT100 DRV CNTRL STOP-RED

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 05013253

LH PT/PT100 DRV CNTRL STOP-RED

$

$

Not available

11

Gravely 05068751

ADJ UPPER CONTROL ARM BRKT-BLK

$39.99

$

Usually ships in 4-12 days

0

12

Gravely 05073551

LINK, DRIVE CONTROL - BLACK

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05501223

BSHG, ECCENTRIC.406X.875X1.625

$4.99

$

In Stock, only 2 left!

0

15

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

16

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Gravely 06200213

BLT-RDHDSQSHK, 38-16X2.50 G5YZ
(Superseded to 06200315)

$3.49

$

In Stock, only 2 left!

0

19

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

20

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

22

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07001707

BLT, SCRHFWH .375-16X.625 YWZC
(Superseded to 07001716)

$

$

Not available

27

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0
