991127 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, CARB (SN: 050000 & Above) Belts & Blades, 48" Deck Parts Diagram

Pro-Turn 48" Zero-Turn Mower, CARB

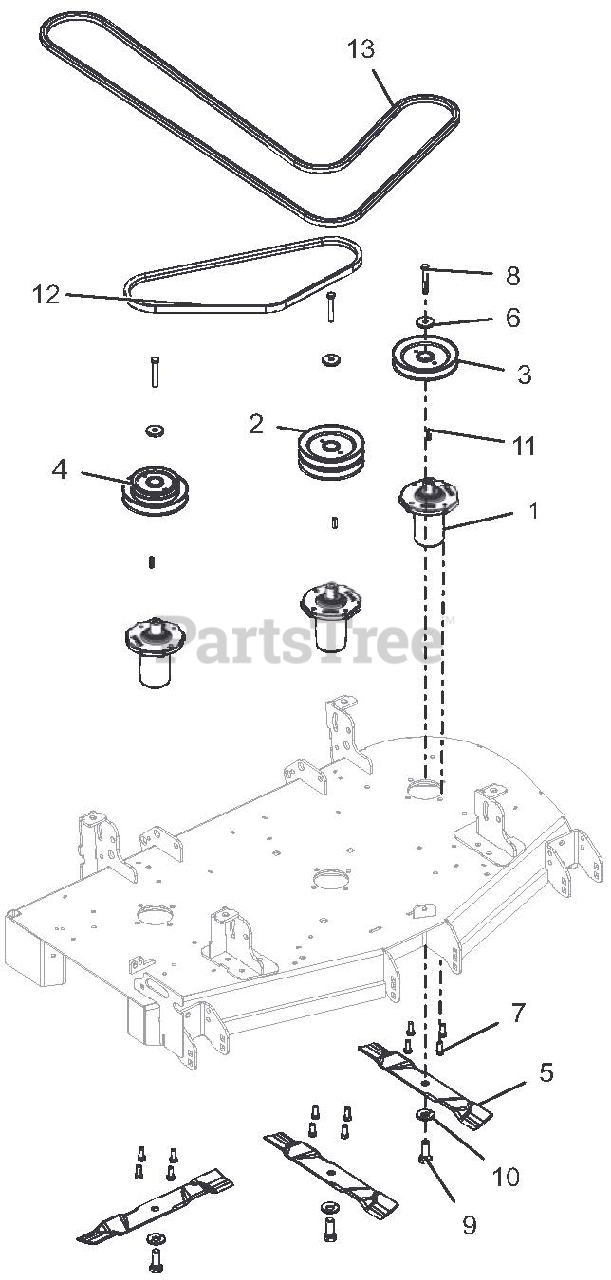

Belts & Blades, 48" Deck Parts Diagram

  • Title

1

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

2

Gravely 07329267

PULLEY, DOUBLE-1" ID X 5.75" OD-BLACK
(Superseded to 07329200)

$80.99

$

In Stock, only 1 left!

0

3

Gravely 07329367

PULLEY, V - 1" ID X 5.75" OD-BLACK
(Superseded to 07329300)

$68.99

$

In Stock, Qty 16

0

4

Gravely 07340200

PULLEY, DOUBLE -1" ID X 5.75" & 4.25" OD

$62.99

$

In Stock, only 1 left!

0

5

Gravely 00450200

BLADE, 16.19" MOWER

$29.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

11

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

12

Gravely 07200035

V-BELT, B-RAW EDGE COGGED

$54.99

$

In Stock, only 4 left!

0

13

Gravely 07200024

BELT, BB 118.00 WRAPPED HEX

$136.99

$

In Stock, only 2 left!

0
