991126 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above) Engine - Kohler ECV740 Parts Diagram

Pro-Turn 60" Zero-Turn Mower

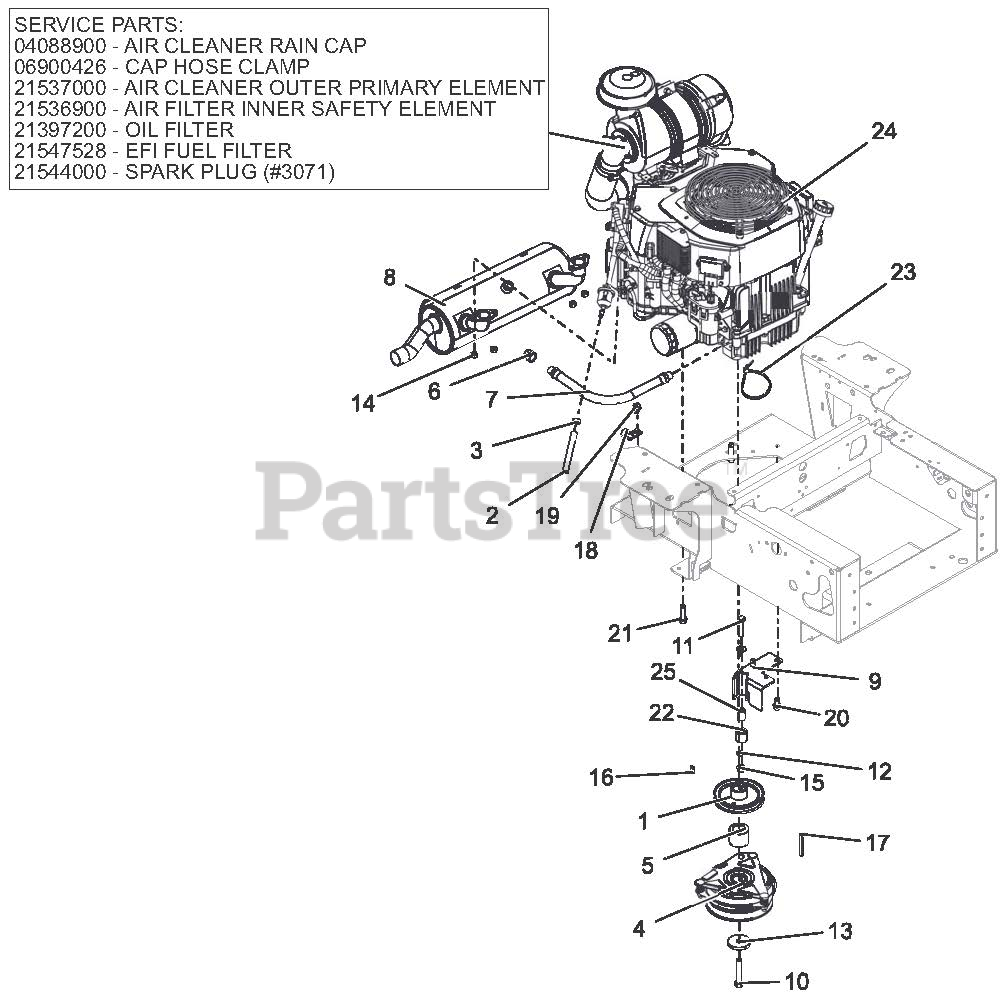

Engine - Kohler ECV740 Parts Diagram

  • Title

1

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE - BLACK
(Superseded to 07331600)

$

$

Not available

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 6.00" LG - VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

5

Gravely 03829700

SPCR, 1.125 X 1.75 X 1.400

$20.99

$

In Stock, only 1 left!

0

6

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

8

Gravely 04262200

MUFFLER, KOHLER EFI

$325.99

$

Usually ships in 4-12 days

0

9

Gravely 04788751

BRKT, CLUTCH STOP

Note: BLACK

$

$

Not available

10

Gravely 05900036

BLT-HEX 0.44-20 X 2.50 GR5 EP80 YWZC

$13.99

$

In Stock, only 1 left!

0

11

Gravely 05958500

BLT-HEX .38-16 X 1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06443600

WSHR-FL-STL .469 X 2.00 X .25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

14

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

15

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06602700

KEY-SQ .250 X .250 X .625

$3.99

$

In Stock, only 3 left!

0

17

Gravely 06610300

KEY, .25 X .25 X 2.25

$2.99

$

In Stock, Qty 11

0

18

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 07412900

SCR-TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07417400

SCR-TAP .38-16 X 1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

23

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

24

Gravely 08201009

ENGINE, KOHLER EFI ECV740

$

$

Not available

24

Gravely 04088900

AIR CLEANER RAIN CAP

$59.99

$

Usually ships in 4-12 days

0

24

Gravely 06900426

CAP HOSE CLAMP

$

$

Not available

24

Gravely 21537000

AIR CLEANER OUTER PRIMARY ELEMENT

$28.99

$

In Stock, Qty 20+

0

24

Gravely 21536900

AIR FILTER INNER SAFETY ELEMENT

$28.99

$

In Stock, only 1 left!

0

24

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

$18.99

$

In Stock, only 1 left!

0

24

Gravely 21547528

EFI FUEL FILTER

$14.99

$

In Stock, only 4 left!

0

24

Gravely 21544000

SPARK PLUG - #3071

$4.49

$

In Stock, Qty 20+

0

25

Gravely 08833400

BUSH., S .391 X .622 X .95 ST REV A

$5.99

$

In Stock, only 1 left!

0
