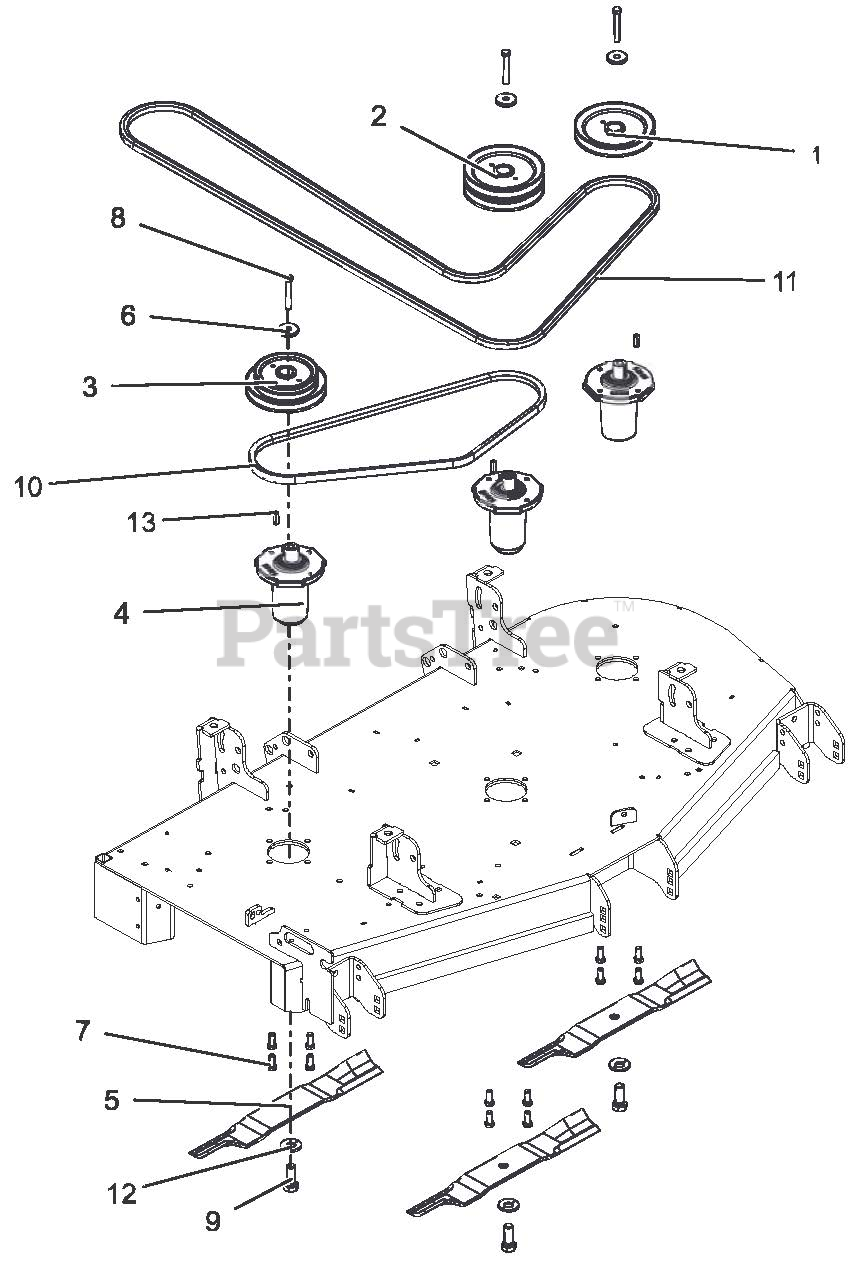

991123 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower (SN: 050000 & Above) Belts & Blades, 52" Deck Parts Diagram

Pro-Turn 52" Zero-Turn Mower

Belts & Blades, 52" Deck Parts Diagram

  • Title
1

Gravely 07332167

PULLEY, SINGLE -1" ID X 6.00" OD-BLACK
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

2

Gravely 07332367

PULLEY, DOUBLE -1" ID X 6.00" OD-BLACK
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

3

Gravely 07340300

PULLEY, DOUBLE -1" ID X 6.00" & 4.75" OD

$69.99

$

In Stock, only 1 left!

0

4

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

5

Gravely 00450300

BLADE, 18.00" MOVER

Note: (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

6

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

7

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05978900

BLT, HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 07200036

BELT, B 56.00 RAW COGGED

$62.99

$

In Stock, Qty 15

0

11

Gravely 07200509

BELT, BB 118.00 WRAPPED HEX

$133.99

$

Usually ships in 4-12 days

0

12

Gravely 06445700

WSHR, BLVL .63X1.625X.14

$4.99

$

In Stock, Qty 9

0

13

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 16

0
