991122 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 050000 & Above) Engine - Kohler Confident ZT730 Parts Diagram

Pro-Turn 48" Zero-Turn Mower

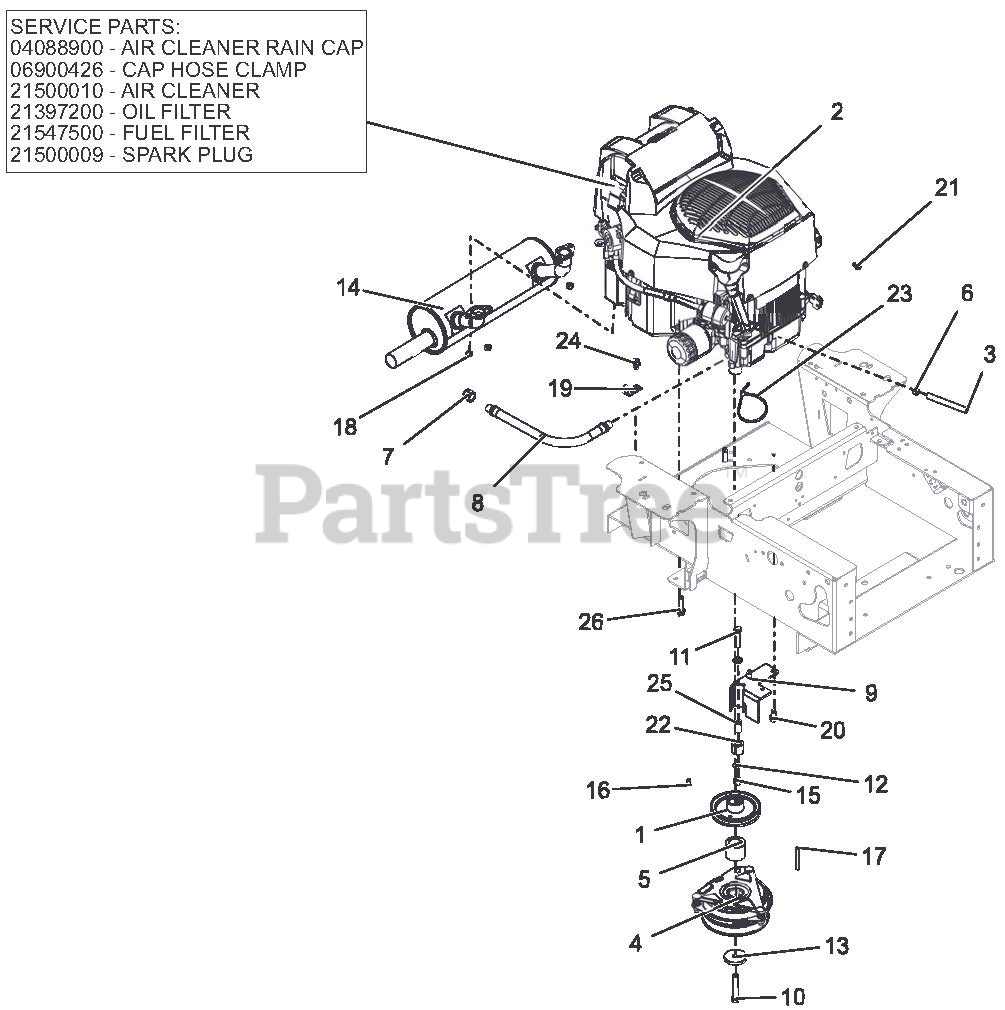

Engine - Kohler Confident ZT730 Parts Diagram

  • Title
1

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE - BLACK
(Superseded to 07331600)

$

$

Not available

2

Gravely 08201029

ENGINE, KOHLER ZT730 CONFIDANT

$

$

Not available

2

04\088900

AIR CLEANER RAIN CAP

Note: SERVICE PART

$

$

Not available

2

Gravely 06900426

CAP HOSE CLAMP

Note: SERVICE PART

$

$

Not available

2

Gravely 21500010

AIR CLEANER

Note: SERVICE PART

$28.99

$

In Stock, only 1 left!

0

2

Gravely 21397200

OIL FILTER
(Superseded to 20715100)

Note: SERVICE PART

$18.99

$

In Stock, only 1 left!

0

2

Gravely 21547500

FUEL FILTER

Note: SERVICE PART

$

$

Not available

2

Gravely 21500009

SPARK PLUG

Note: SERVICE PART

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 03278100

.25 LOW-PERM GAS HOSE 7.50" VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

5

Gravely 03829700

SPCR, 1.125 X 1.75 X 1.400

$20.99

$

In Stock, only 1 left!

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

7

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 04058500

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 05155100)

$20.99

$

In Stock, only 1 left!

0

9

Gravely 04788751

BRKT, CLUTCH STOP

Note: BLACK

$

$

Not available

10

Gravely 05900036

BLT-HEX .44-20 X 2.50 GR5 EP 80 YWZC

$13.99

$

In Stock, only 1 left!

0

11

Gravely 05958500

BLT-HEX .38-16 X 1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06443600

WSHR-FL-STL .469 X 2.00 X .25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

14

Gravely 04786100

MUFFLER, KOHLER CONFIDANT

$169.99

$

Usually ships in 4-12 days

0

15

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06602700

KEY-SQ .250 X .250 X .625

$3.99

$

In Stock, only 3 left!

0

17

Gravely 06610300

KEY, .25 X .25 X 2.25

$2.99

$

In Stock, Qty 11

0

18

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

19

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07400034

SCR-TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

23

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

24

Gravely 07412900

SCR-TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 08833400

BUSH., S .391 X .622 X .95 ST REV A

$5.99

$

In Stock, only 1 left!

0

26

Gravely 07417400

SCR-TAP .38-16 X 1.50 HWH TR YZ
(Superseded to 07400203)

$3.99

$

Usually ships in 4-12 days

0
