991121 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower (SN: 050000 & Above) Engine - Kawasaki FX730 Parts Diagram

Pro-Turn 60" Zero-Turn Mower

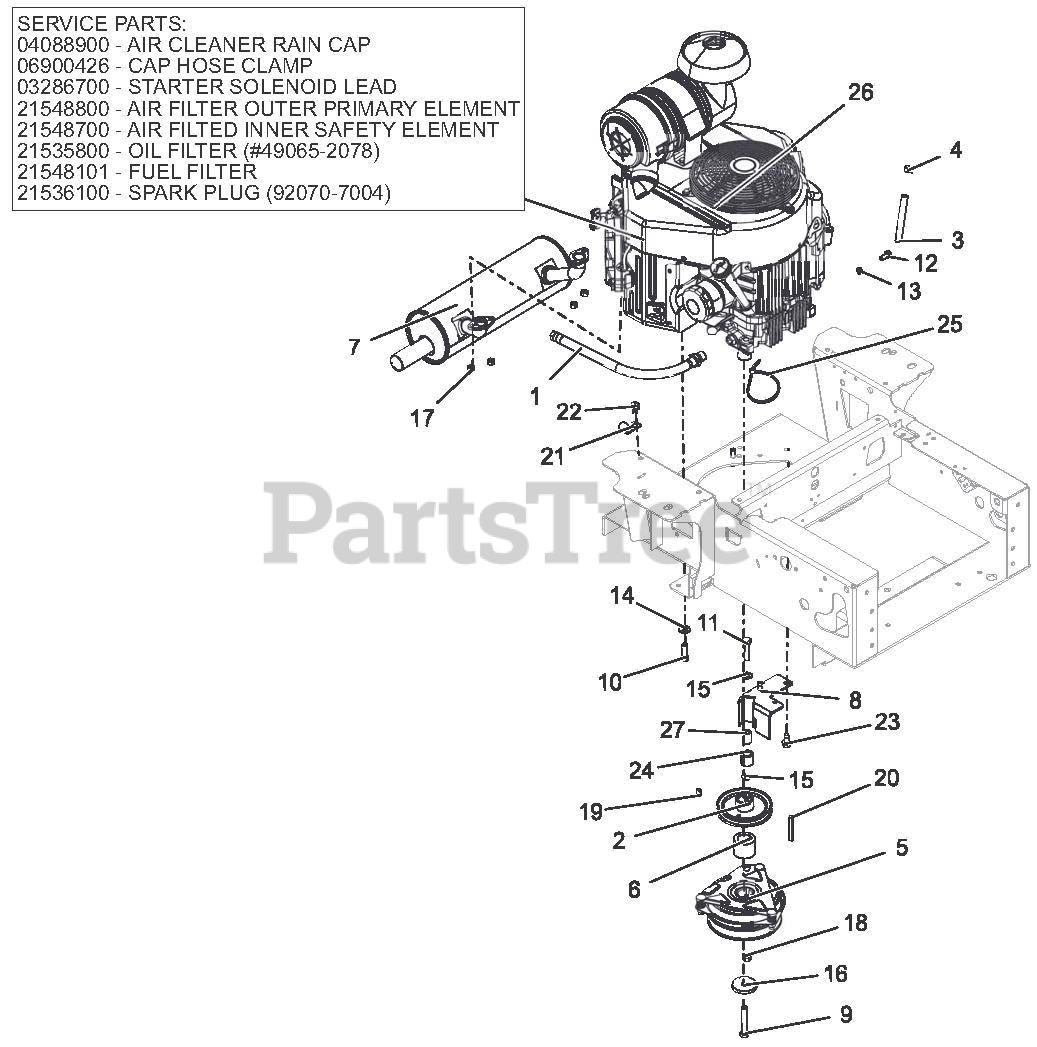

Engine - Kawasaki FX730 Parts Diagram

  • Title

1

Gravely 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE - BLACK
(Superseded to 07331600)

$

$

Not available

3

Gravely 03278100

.25 LOW-PERM GAS HOSE 25.00" LG - VALVE TO ENGINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

6

Gravely 03829700

SPCR, 1.125 X 1.75 X 1.400

$20.99

$

In Stock, only 1 left!

0

7

Gravely 03989000

MUFFLER, KAWASAKI FX24/26 HP

$168.99

$

In Stock, only 1 left!

0

8

Gravely 04788751

BRKT, CLUTCH STOP

Note: BLACK

$

$

Not available

9

Gravely 05900036

BLT-HEX .44-20 X 2.50 GR5 EP 80 YWZC

$13.99

$

In Stock, only 1 left!

0

10

Gravely 05901522

BLT-HEX .38-16 X 1.25 GR5 YWZC NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

11

Gravely 05958500

BLT-HEX .38-16 X 1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05973300

@BLT-HEX M8-1.25 X 20 YWZC
(Superseded to 05901628)

$

$

Not available

13

Gravely 06308600

WSHR-LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06400927

WSHR, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

15

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06443600

WSHR-FL-STL .469 X 2.00 X .25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

17

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

18

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06602700

KEY-SQ .250 X .250 X .625

$3.99

$

In Stock, Qty 5

0

20

Gravely 06610300

KEY, .25 X .25 X 2.25

$2.99

$

In Stock, Qty 12

0

21

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 07412900

SCR-TAP .38-16 X .50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07415400

SCR-TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07500007

BUMPER, RUBBER .62 X 1.0 X .88 LG

$5.99

$

In Stock, only 2 left!

0

25

Gravely 07517300

CABLE, TIE 5.50 LG

$

$

Not available

26

Gravely 08200722

ENGINE, KAWASAKI FX730

$

$

Not available

26

Gravely 04088900

AIR CLEANER RAIN CAP

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

26

Gravely 06900426

CAP HOSE CLAMP

Note: SERVICE PART

$

$

Not available

26

Gravely 03286700

STARTER SOLENOID LEAD

Note: SERVICE PART

$9.49

$

Usually ships in 4-12 days

0

26

Gravely 21548800

AIR FILTER OUTER PRIMARY ELEMENT

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

26

Gravely 21548700

AIR FILTER INNER SAFETY ELEMENT

Note: SERVICE PART

$27.99

$

In Stock, Qty 20+

0

26

Gravely 21535800

OIL FILTER - #49065-2078
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21548101

FUEL FILTER
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

26

Gravely 21536100

SPARK PLUG - #92070-7004

Note: SERVICE PART

$3.49

$

In Stock, only 1 left!

0

27

Gravely 08833400

BUSH., S .391 X .622 X .95 ST REV A

$5.99

$

In Stock, only 1 left!

0
