991119 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower (SN: 050000 & Above) Seat Assembly Parts Diagram

Pro-Turn 48" Zero-Turn Mower

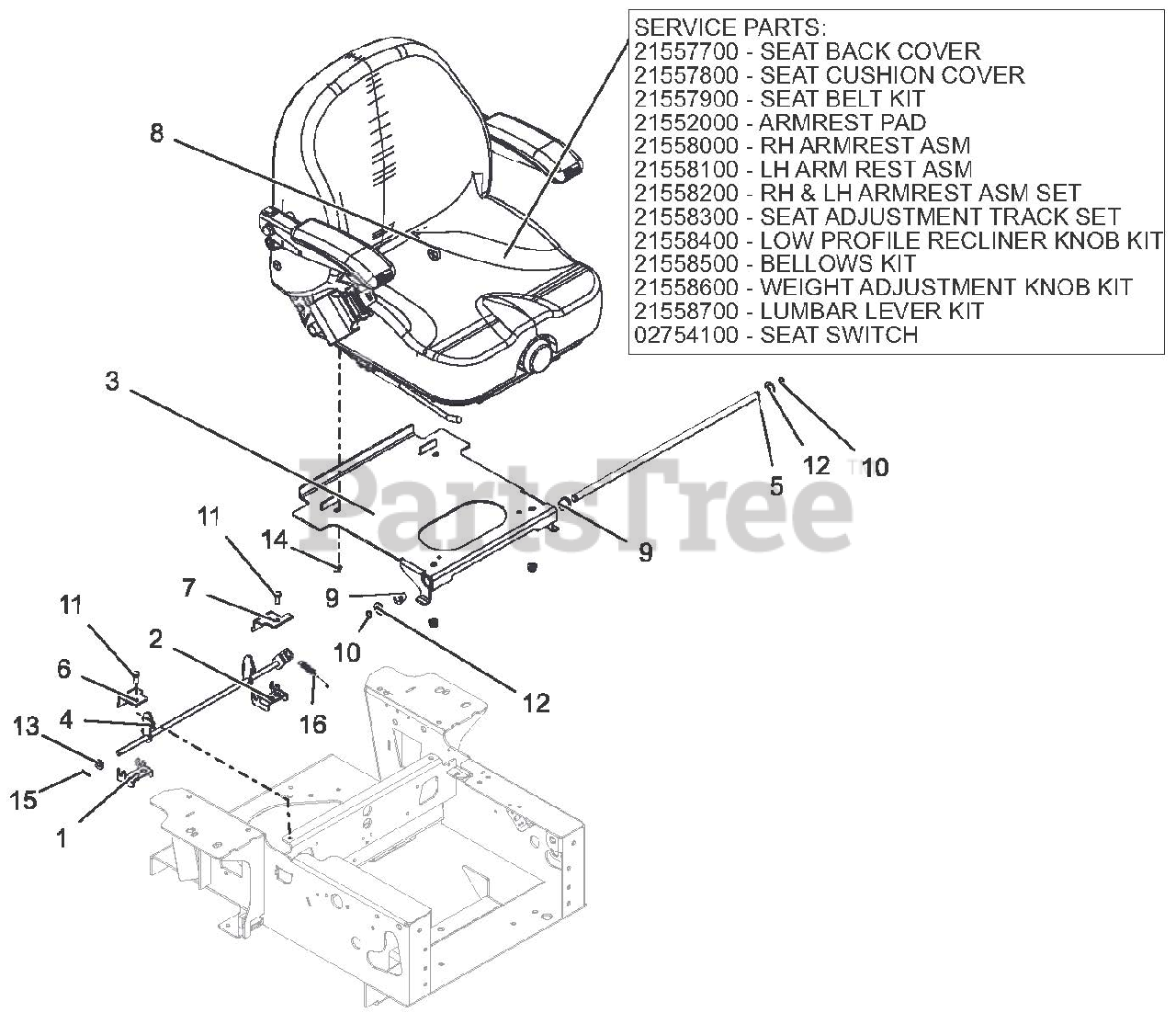

Seat Assembly Parts Diagram

  • Title

1

Gravely 03930451

WLDMT, PT/PT100 RH SEAT LATCH MOUNT-BLACK

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 03930551

WLDMT, PT/PT200 LH SEAT LATCH MOUNT-BLACK

$

$

Not available

3

Gravely 04975451

WLDMT, PRO-TURN 100 SEAT PLATE

Note: BLACK

$168.99

$

Usually ships in 4-12 days

0

4

Gravely 04975651

WLDMT, PRO-TURN 100 SEAT LATCH

$32.99

$

Usually ships in 4-12 days

0

5

Gravely 03837800

SHAFT, PT/PT100 SEAT PIVOT

$

$

Not available

6

Gravely 03917951

MOUNT, PT/PT100 RH TOP SEAT LATCH

Note: BLACK

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 03918551

MOUNT, PT/PT100 LH TOP SEAT LATCH

Note: BLACK

$

$

Not available

8

Gravely 04876100

SEAT, FULL SUSPENSION
(Superseded to 09680600)

Note: SERVICE PART

$930.99

$

In Stock, only 1 left!

0

8

Gravely 21557700

SEAT BACK COVER

Note: SERVICE PART

$180.99

$

In Stock, only 1 left!

0

8

Gravely 21557800

SEAT CUSHION COVER

Note: SERVICE PART

$96.99

$

In Stock, only 1 left!

0

8

Gravely 21557900

SEAT BELT KIT

Note: SERVICE PART

$91.99

$

Usually ships in 4-12 days

0

8

Gravely 21552000

ARMREST PAD
(Superseded to 21560900)

Note: SERVICE PART

$

$

Not available

8

Gravely 21558000

RH ARMREST ASM

Note: SERVICE PART

$65.99

$

Usually ships in 4-12 days

0

8

Gravely 21558100

LH ARM REST ASM

Note: SERVICE PART

$

$

Not available

8

Gravely 21558200

RH & LH ARMREST ASM SET

Note: SERVICE PART

$120.99

$

Usually ships in 4-12 days

0

8

Gravely 21558300

SEAT ADJUSTMENT RRACK SET

Note: SERVICE PART

$129.99

$

In Stock, only 3 left!

0

8

Gravely 21558400

LOW PROFILE RECLINER KNOB KIT

Note: SERVICE PART

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 21558500

BELLOWS KIT

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

8

Gravely 21558600

WEIGHT ADJUSTMENT KNOB KIT

Note: SERVICE PART

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 21558700

LUMBAR LEVER KIT

Note: SERVICE PART

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 02754100

SEAT SWITCH

Note: SERVICE PART

$9.49

$

In Stock, Qty 20+

0

9

Gravely 05500901

BSHG, SHLDR EP .358-16 X .30 HEX YZ

$5.99

$

In Stock, only 2 left!

0

10

Gravely 05717100

RG-RTNG-EXT .500 X .050

$2.49

$

In Stock, Qty 8

0

11

Gravely 05947000

BLT-HEX .31-18 X .75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06425300

WSHR-FL-STL .531 X 1.000 X .063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06706900

@PIN-CTR .09 X .75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

16

Gravely 08321100

SPRG, EXTENSION

$6.49

$

In Stock, Qty 6

0
