991111 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, CARB (SN: 050000 & Above) Casters And Tires Parts Diagram

44" Zero-Turn Mower, CARB

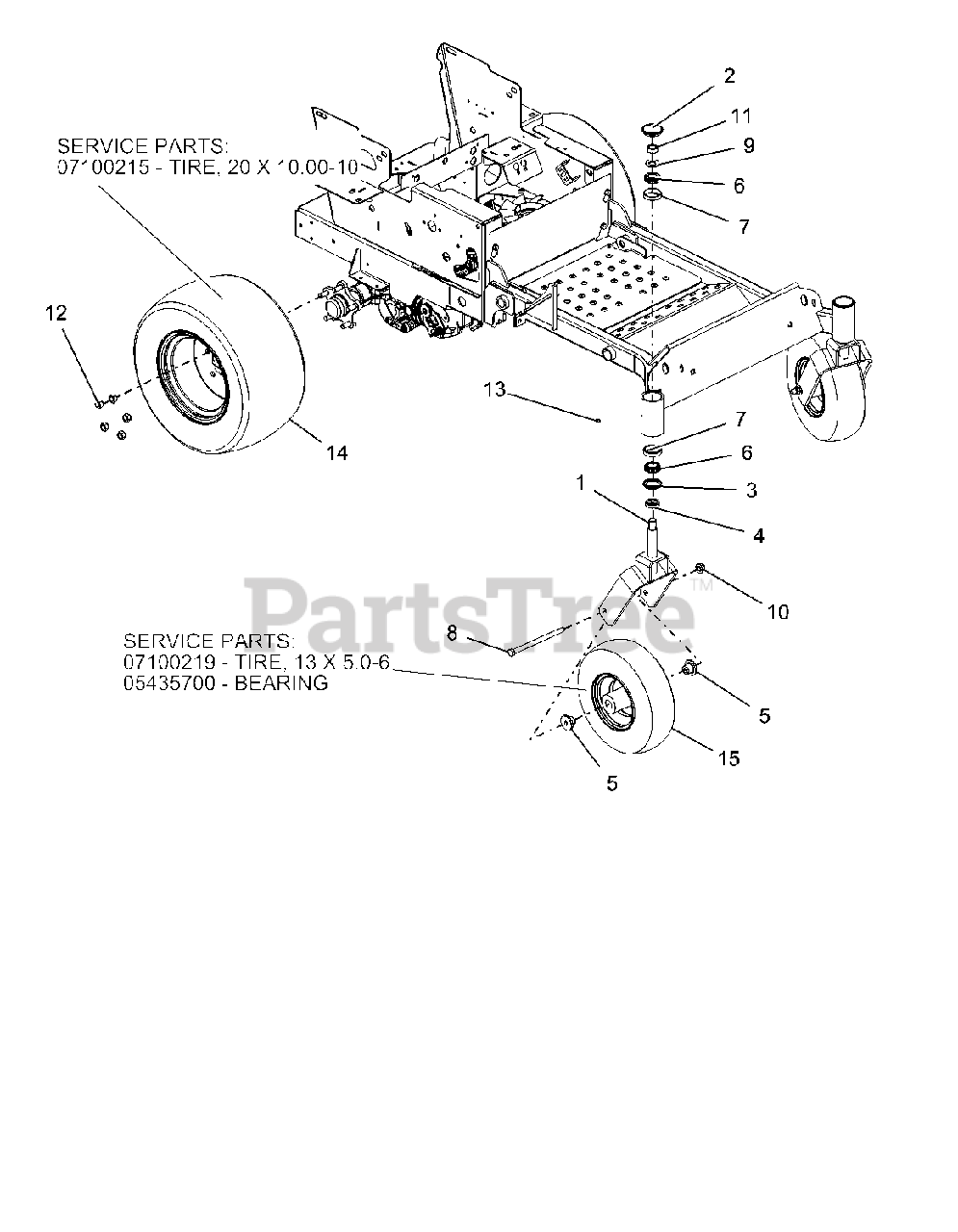

Casters And Tires Parts Diagram

  • Title

1

Gravely 00490251

WLDMT, CASTER FORK
(Superseded to 59208400)

$206.99

$

Usually ships in 4-12 days

0

2

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 9

0

3

Gravely 00531400

BEARING SEAL 1.5 X 2.0 X .18

$10.99

$

In Stock, only 4 left!

0

4

Gravely 00531500

SPCR, 1.005X1.5075X.375

$7.99

$

In Stock, Qty 7

0

5

Gravely 00675300

SPACER, FRONT WHEEL

$7.99

$

In Stock, Qty 20+

0

6

Gravely 05406900

BRG, CONE 1.000 X .580

$18.99

$

In Stock, Qty 20+

0

7

Gravely 05407000

BRG, CUP 1.980 X .420

$17.99

$

In Stock, Qty 20+

0

8

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

9

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500721

NUT-LK-TOP-JAM .75-16 YWZC
(Superseded to 06500933)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06517600

NUT, LUG .500-13
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07001727

FITTING, .250-28 FLUSH MOUNT GREASE

$3.99

$

In Stock, only 1 left!

0

14

Gravely 07100214

TIRE/WHEEL, ASSY, 20X10.00-10

$193.99

$

Usually ships in 4-12 days

0

14

Gravely 07100215

TIRE, 20 X 10.00-10

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

15

Gravely 07100835

TIRE/WHEEL, ASM , 13X5-6
(Superseded to 07101111)

$119.99

$

In Stock, Qty 20+

0

15

Gravely 07100219

TIRE, 13 X 5.0-6
(Superseded to 07101609)

Note: SERVICE PART

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 05435700

BEARING

Note: SERVICE PART

$22.99

$

In Stock, Qty 19

0
