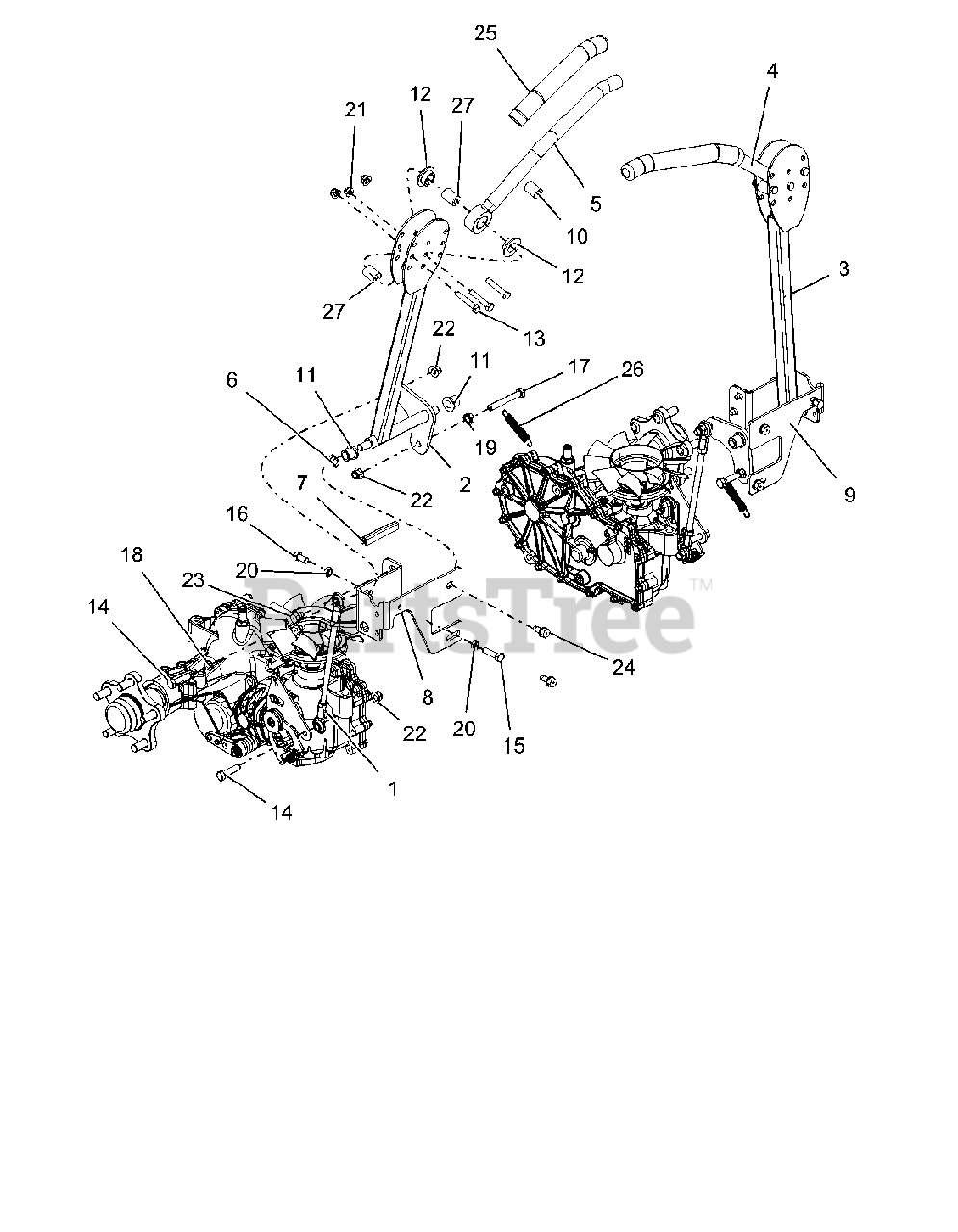

991110 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kohler (SN: 050000 - 059999) Controls Parts Diagram

60" Zero-Turn Mower, Kohler

Controls Parts Diagram

  • Title

1

Gravely 03251700

ASM, STEERING LINKAGE

$

$

Not available

2

Gravely 04762951

WLDMT, PT/PT100 CONTROL ARM-BLACK

$109.99

$

In Stock, only 1 left!

0

3

Gravely 04763051

WLDMT, LH PT/PT100 CONTROL ARM

$155.99

$

Usually ships in 4-12 days

0

4

Gravely 09235500

WLDMT, LH HANDLE

$90.99

$

In Stock, only 1 left!

0

5

Gravely 09235600

WLDMT, RH HANDLE

$93.99

$

In Stock, only 1 left!

0

6

Gravely 00325400

WAVE WASHER .531X.781X.125 FH

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00918200

STRIP, COWL - 1.50 LG

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 03752751

BRKT, RH STEERING STOP-BLACK

$82.99

$

Usually ships in 4-12 days

0

9

Gravely 03754751

BRKT, LH STEERING STOP-BLACK

$87.99

$

Usually ships in 4-12 days

0

10

Gravely 05500932

BSHG, ECCENTRIC .328 X .750 X .970

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

12

Gravely 05525200

BSHG, FLANGE .762 X 1.48 X .44 NYLON
(Superseded to 05501517)

$

$

Not available

13

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

14

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

15

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

18

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 07500222

GRIP, HANDLEBAR .750 ID X 11.125 LG

$7.99

$

In Stock, only 1 left!

0

26

Gravely 08300516

SPRG, EXTENSION

$14.99

$

In Stock, only 2 left!

0

27

Gravely 09235400

SPACER, .328 X .76 X 1.01

$

$

Not available
