991110 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kohler (SN: 035000 - 044999) Engine And Clutch Parts Diagram

60" Zero-Turn Mower, Kohler

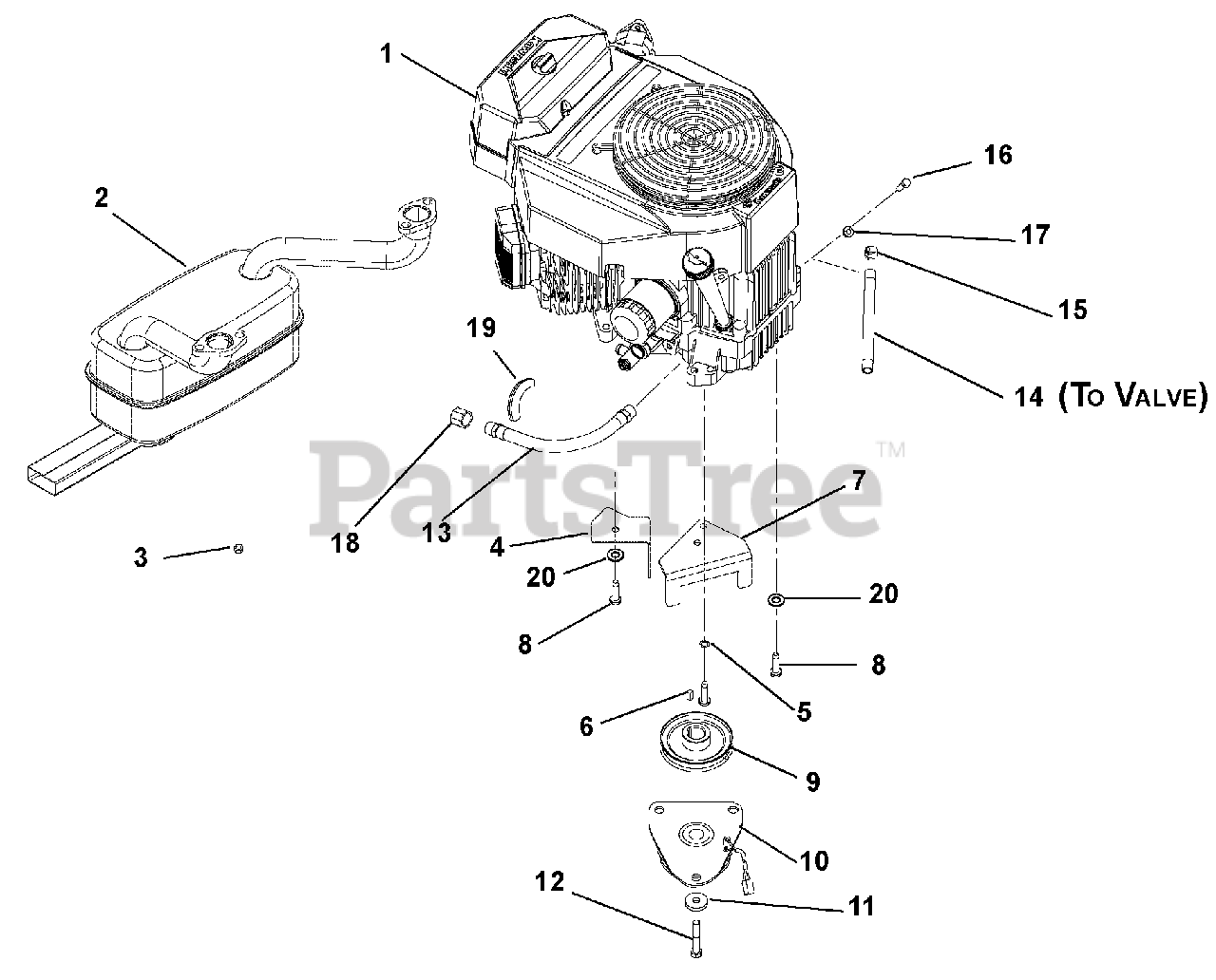

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200631

Engine, Kawasaki FR 651 (991090, 098)

Note: (991090, 098)

$

$

Not available

1

Gravely 08200717

Engine, Kawasaki FR 691 (991082, 083, 099, 100)

Note: (991082, 083, 099, 100)

$

$

Not available

1

Gravely 08200718

Engine, Kawasaki FR 730 (991084, 101)

Note: (991084, 101)

$

$

Not available

1

Gravely 08201027

Engine, Kohler Twin - 24 HP Pro (991107)

Note: (991107)

$

$

Not available

1

Gravely 08201005

Engine, Kohler Twin - 25 HP Pro (991108, 109)

Note: (991108, 109)

$

$

Not available

1

Gravely 08201028

Engine, Kohler Twin - 26 HP Pro (991110)

Note: (991110)

$

$

Not available

2

Gravely 04754300

Muffler, Kawasaki Engine (991082, 083, 084, 090, 098, 099, 100, 101)

Note: (991082, 083, 084, 090, 098, 099, 100, 101)

$96.99

$

In Stock, only 1 left!

0

2

Gravely 04754400

Muffler, Kohler (991107, 108, 109, 110)
(Superseded to 59107100)

Note: (991107, 108, 109, 110)

$

$

Not available

3

Gravely 06500018

Nut, Locking Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

4

Gravely 03772951

Guard, Clutch Wire

$31.99

$

Usually ships in 4-12 days

0

5

Gravely 06308700

Washer, Locking, Extension .391 x .682 x .036

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, only 3 left!

0

7

Gravely 03766851

Anchor, Ogura Clutch

$37.99

$

In Stock, only 1 left!

0

8

Gravely 05901522

Bolt Hex .38-16 x 1.25 G5YZ NYTORQ
(Superseded to 05901808)

$1.99

$

In Stock, Qty 11

0

9

Gravely 07337167

Pulley, 4.50 OD x 1.002 Engine

$91.99

$

Usually ships in 4-12 days

0

10

Gravely 04387900

Clutch Assembly, Ogura

$323.99

$

In Stock, only 1 left!

0

11

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

12

Gravely 05900043

Bolt, Hex .44-20 x 2.75 Grade 5

$9.49

$

In Stock, only 1 left!

0

13

Gravely 03873100

Hose, Hydraulic .38-11-0K M6N0-F6J0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 03278100

Hose, Gas Line Low Perm

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05973300

Bolt, Hex M8-1.25 x 2.00
(Superseded to 05901628)

$

$

Not available

17

Gravely 06308600

Washer, Locking .31 x .098 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 03873200

Pipe Cap, 3/8 NPT Female

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 07500106

Protector, Oil Draw Hose
(Superseded to 07500036)

$

$

Not available

20

Gravely 06400927

Washer, 3/8" Spring Disc

$3.49

$

In Stock, only 2 left!

0
