991109 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kohler (SN: 050000 - 059999) Deck, Belts, Blades And Spindles - 52" Parts Diagram

52" Zero-Turn Mower, Kohler

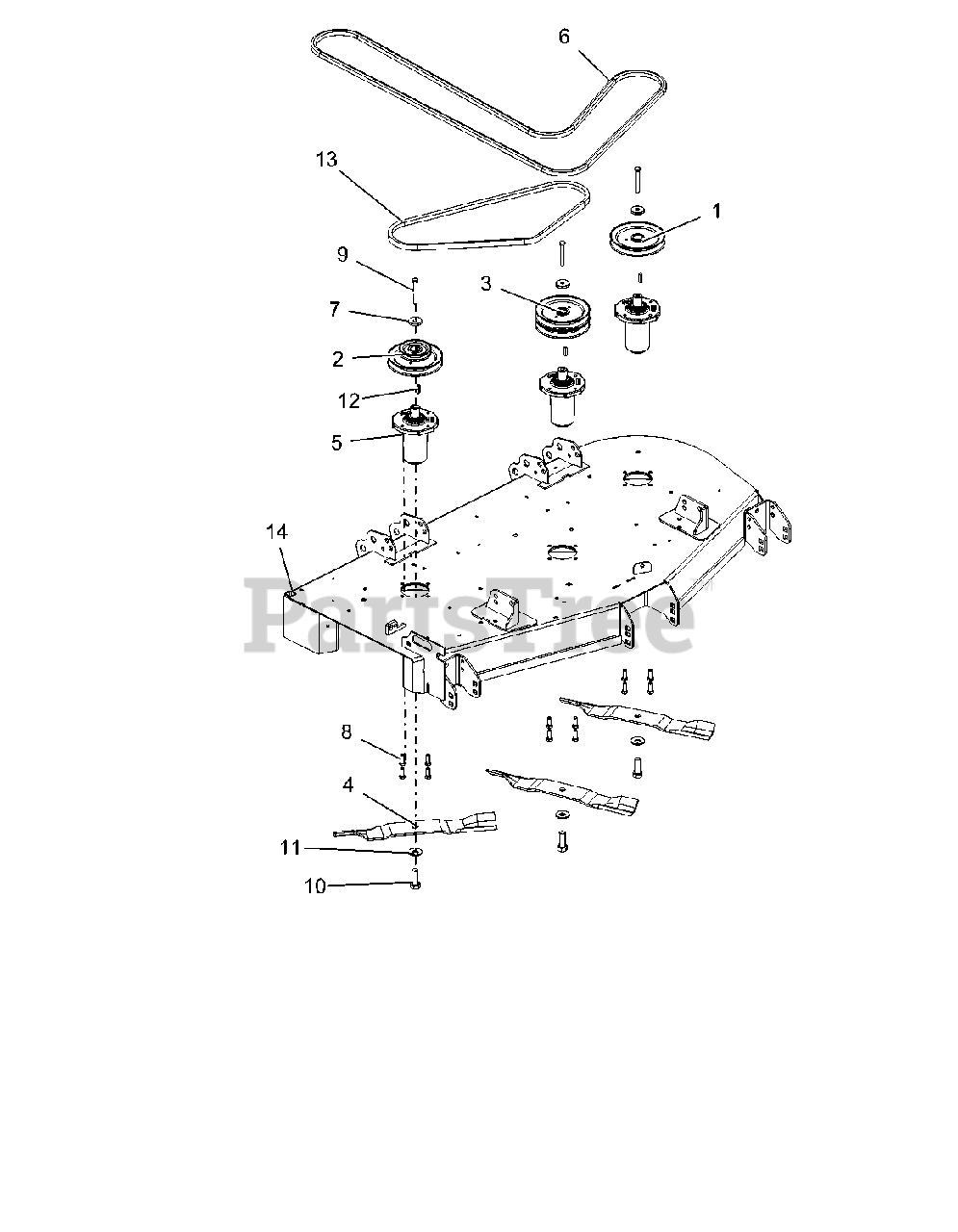

Deck, Belts, Blades And Spindles - 52" Parts Diagram

  • Title

1

Gravely 07332167

PULLEY, SINGLE -1" ID X 6.00" OD-BLACK
(Superseded to 59211700)

$82.99

$

In Stock, only 1 left!

0

2

Gravely 07332267

PULLEY, DBL -1"IDX5.75"&3.50"OD-BLACK

$79.99

$

In Stock, only 1 left!

0

3

Gravely 07332367

PULLEY, DOUBLE -1" ID X 6.00" OD-BLACK
(Superseded to 07332300)

$77.99

$

In Stock, Qty 16

0

4

Gravely 03253800

BLADE, 18"

$28.99

$

In Stock, Qty 20+

0

5

Gravely 59215400

SERVICE, ASM SPINDLE- DUCTILE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

6

Gravely 07200026

HEX BELT, BB WRAPPED

$133.99

$

In Stock, Qty 5

0

7

Gravely 04530500

RETAINER, SHEAVE SPINDLE

$7.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.00 GR5 YWZC EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05978900

BLT-HEX .625-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06445700

WSHR, BLVL-.63X1.625X.14

$4.99

$

In Stock, only 3 left!

0

12

Gravely 06611200

KEY-SQ .250X.250X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

13

Gravely 07200036

BELT, B 56.00 RAW COGGED

$62.99

$

In Stock, Qty 14

0

14

Gravely 59102400

KIT, 52" MOWER DECK W/SAFETY DECALS-RED

$1293.99

$

Usually ships in 4-12 days

0
