991109 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Deck Idlers Parts Diagram

52" Zero-Turn Mower, Kohler

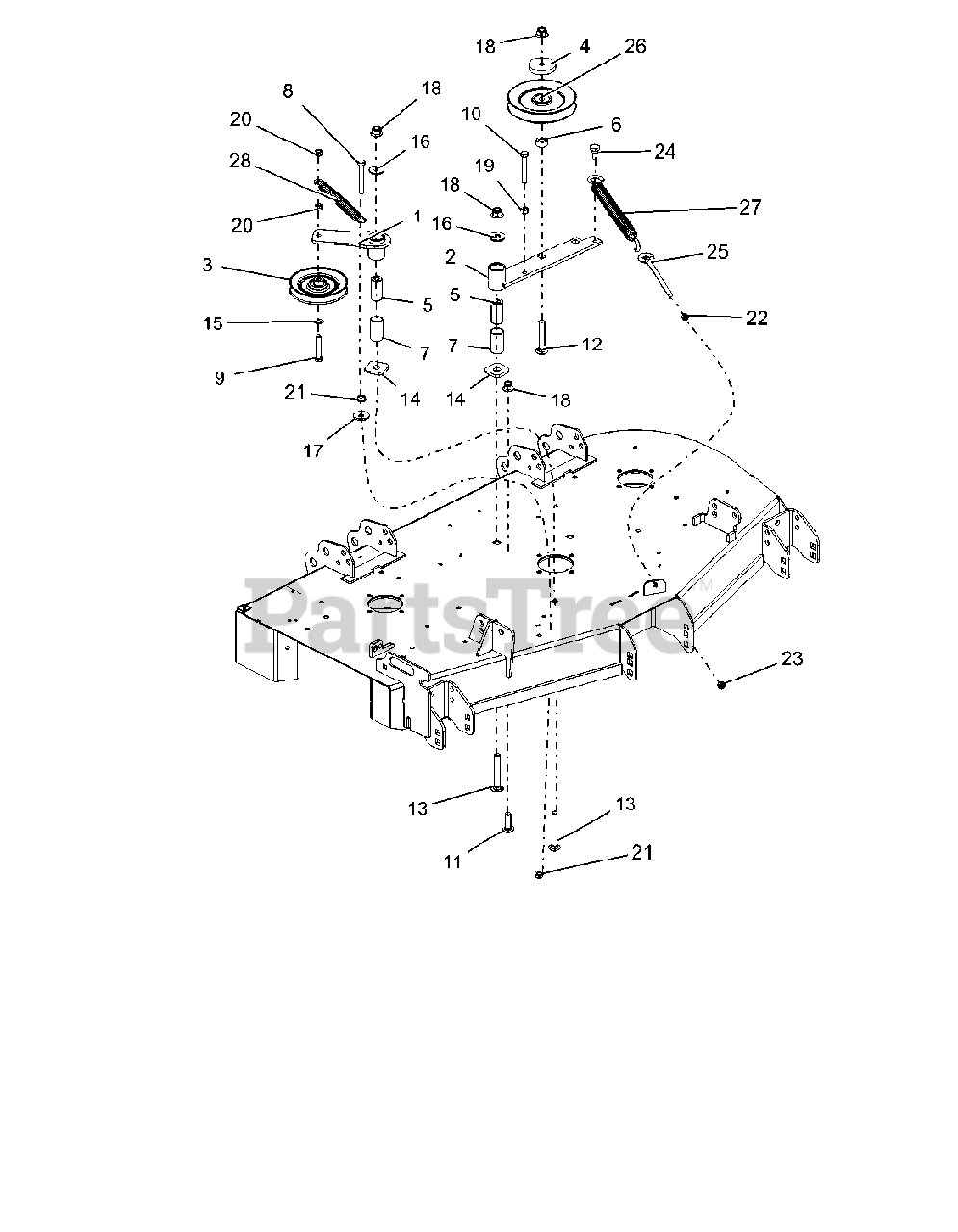

Deck Idlers Parts Diagram

  • Title

1

Gravely 03774151

WMT, IDLER PIVOT ARM-BLACK

$51.99

$

In Stock, only 1 left!

0

2

Gravely 03774251

WMT, IDLER PIVOT ARM-BLACK

$68.99

$

In Stock, only 1 left!

0

3

Gravely 07340100

IDLER, V-5.00" W/.69 STANDOFF
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$14.99

$

In Stock, only 1 left!

0

5

Gravely 01581700

BSHG, SPCR .502X.997X2.03

$5.99

$

In Stock, Qty 20+

0

6

Gravely 05500905

BSHG, SPCR .502 X .997.50 PM

$11.99

$

In Stock, Qty 18

0

7

Gravely 05501234

BSHG, 1.00x1.125x1.947

$10.99

$

In Stock, Qty 20+

0

8

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06200006

BLT-RDHDSQSHNK .50-13X1.50 YWZC

$5.99

$

In Stock, only 1 left!

0

12

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5 Y

$5.99

$

In Stock, Qty 19

0

13

Gravely 06225000

BLT-RDHDSQNK .50-13X3.50 G5 Y
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

14

Gravely 06400829

WSHR, -FLT.640X1.75X.250

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07000034

BLT, SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, only 1 left!

0

25

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 07300527

SHEAVE, .50" ID X 6.00" OD V-IDLER

$53.99

$

In Stock, Qty 20+

0

27

Gravely 08300505

SPRG, EXTENSION

$25.99

$

In Stock, Qty 20+

0

28

Gravely 08300626

SPRG, EXTENSION .120X.845X6.55 WLD
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0
