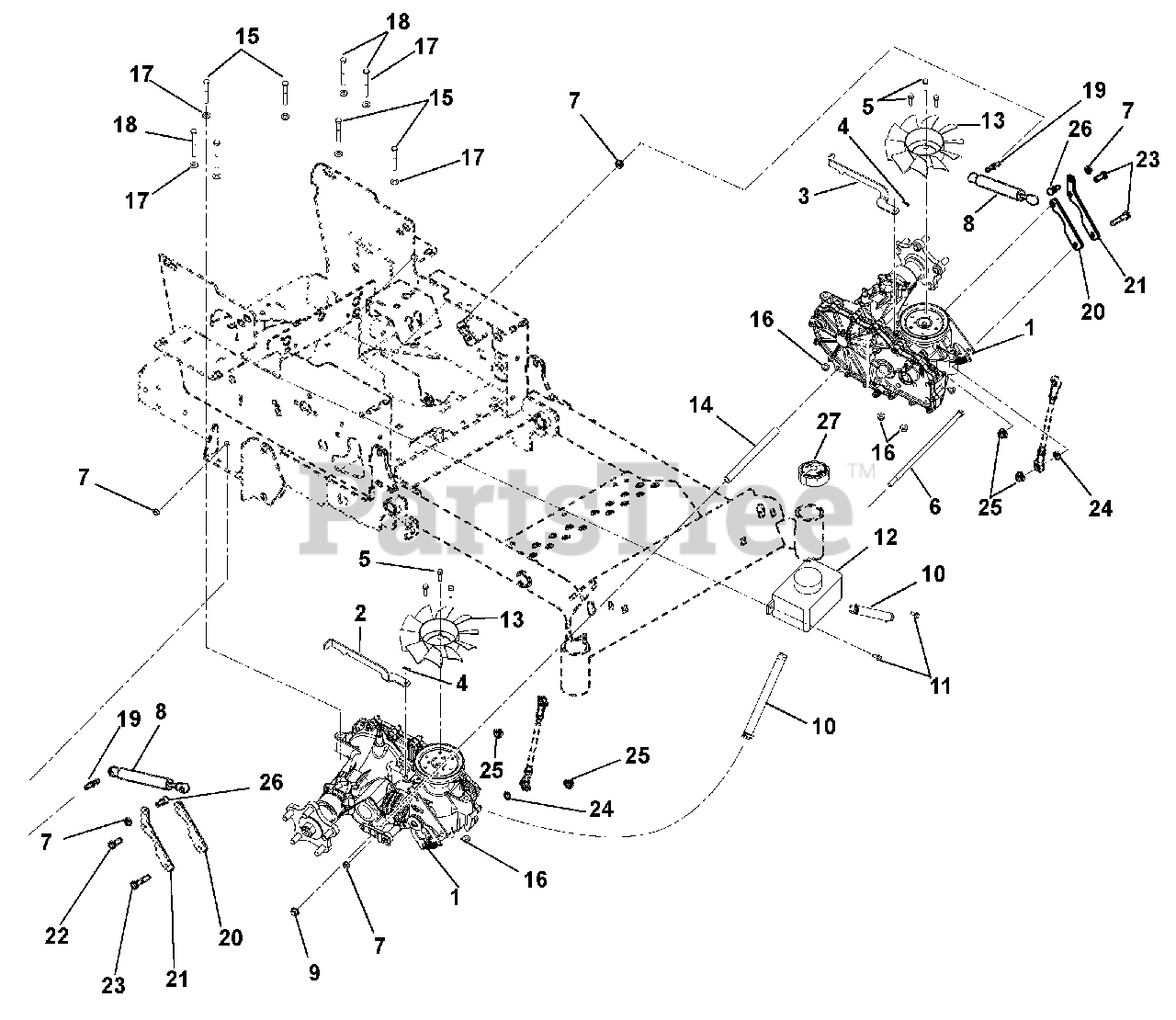

991109 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kohler (SN: 035000 - 044999) Transmission Parts Diagram

52" Zero-Turn Mower, Kohler

Transmission Parts Diagram

  • Title

1

Gravely 03283700

Transaxle, 3100 Series – Left Hand (page 16)
(Superseded to 04827700)

Note: (page 16)

$1571.99

$

Usually ships in 4-12 days

0

1

Gravely 03283600

Transaxle, 3100 Series – Right Hand (page 18)
(Superseded to 04827800)

Note: (page 18)

$1577.99

$

Usually ships in 4-12 days

0

2

Gravely 03282851

Right Hand Dump Valve Lever – Black

$33.99

$

In Stock, only 1 left!

0

3

Gravely 03282951

Left Hand Dump Valve Lever – Black

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 06701900

Pin, Hair, Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

5

Gravely 07412400

Screw, Tapping .25-20 x 1.00 Hex Washer Head Thread
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05901315

Bolt, Hex .38-16 x 11.00 Grade 5
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

7

Gravely 06543100

Nut, Top Lock Flange
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 03943800

Damper, Stabilus

$40.99

$

In Stock, only 2 left!

0

9

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03251900

Assembly, Hydro Overflow Tank Hose

$17.99

$

In Stock, only 2 left!

0

11

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head Thread
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 02958700

Tank, Expansion

$31.99

$

In Stock, only 1 left!

0

13

Gravely 03283500

Fan, Cooling

$25.99

$

In Stock, only 3 left!

0

14

Gravely 03367200

Spacer, .38 ID x 5/8 OD x 7.72

$14.99

$

In Stock, only 1 left!

0

15

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

Nut, Nyloc Flange .312-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05962500

Bolt, Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 04097100

Ball Stud, Threaded

$2.49

$

In Stock, Qty 15

0

20

Gravely 03855000

Plate, Reinforcement

$

$

Not available

21

Gravely 04276700

Plate, Damper Mounting

$8.49

$

Usually ships in 4-12 days

0

22

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05958500

Bolt, Hex 3/8-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03652200

Ball Stud, Threaded

$3.49

$

In Stock, only 3 left!

0

27

Gravely 21544042

Cap, Hydro Reservoir Replacement

$21.99

$

Usually ships in 4-12 days

0
