991108 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kohler (SN: 045000 - 049999) Deck Mount And Baffles - 44" And 48" Parts Diagram

48" Zero-Turn Mower, Kohler

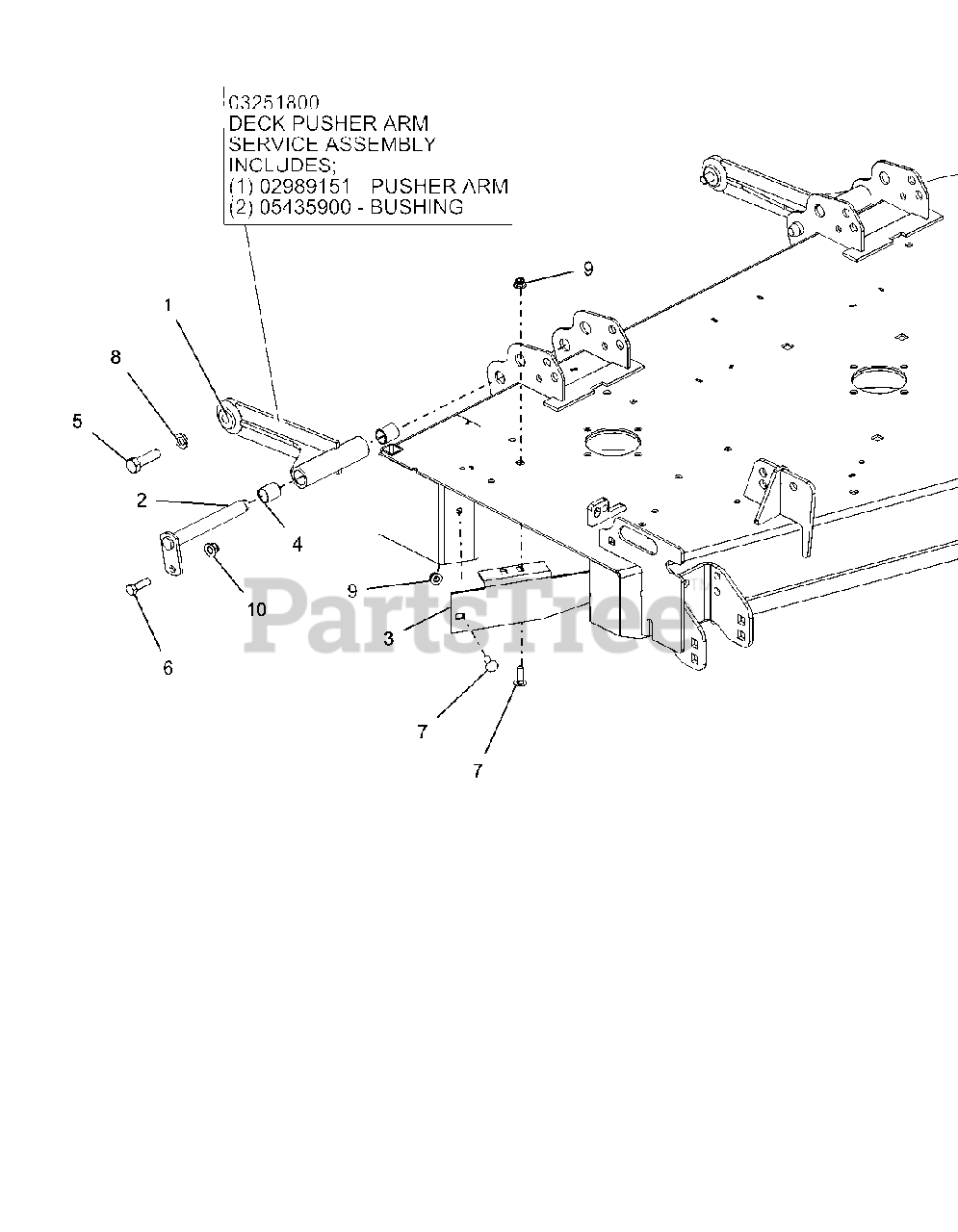

Deck Mount And Baffles - 44" And 48" Parts Diagram

  • Title
1

Gravely 02989151

DECK PUSHER ARM WLDMT - BLK

$108.99

$

Usually ships in 4-12 days

0

1

Gravely 03251800

DECK PUSHER ARM SERVICE ASSEMBLY

Note: SERVICE PART

$125.99

$

In Stock, only 2 left!

0

1

Gravely 02989151

PUSHER ARM

Note: SERVICE PART - INCLUDED IN THE DECK PUSHER ARM SERVICE ASSEMBLY

$108.99

$

Usually ships in 4-12 days

0

1

Gravely 05435900

BUSHING

Note: SERVICE PART - INCLUDED IN THE DECK PUSHER ARM SERVICE ASSEMBLY

$5.99

$

In Stock, only 2 left!

0

2

Gravely 09238900

WLDMT, MOWER MTG. PIN

$61.99

$

Usually ships in 4-12 days

0

3

Gravely 04389353

BAFFLE, DISCHARGE, 44"-48"-RED

$71.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$5.99

$

In Stock, only 2 left!

0

5

Gravely 05901436

BLT-HEX .50-13X1.75 G5 YZ EP80
(Superseded to 05901922)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06216100

BLT-RDHDSQSHNK .31-18X1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

9

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
