991107 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kohler (SN: 060000 & Above) Transaxles Parts Diagram

44" Zero-Turn Mower, Kohler

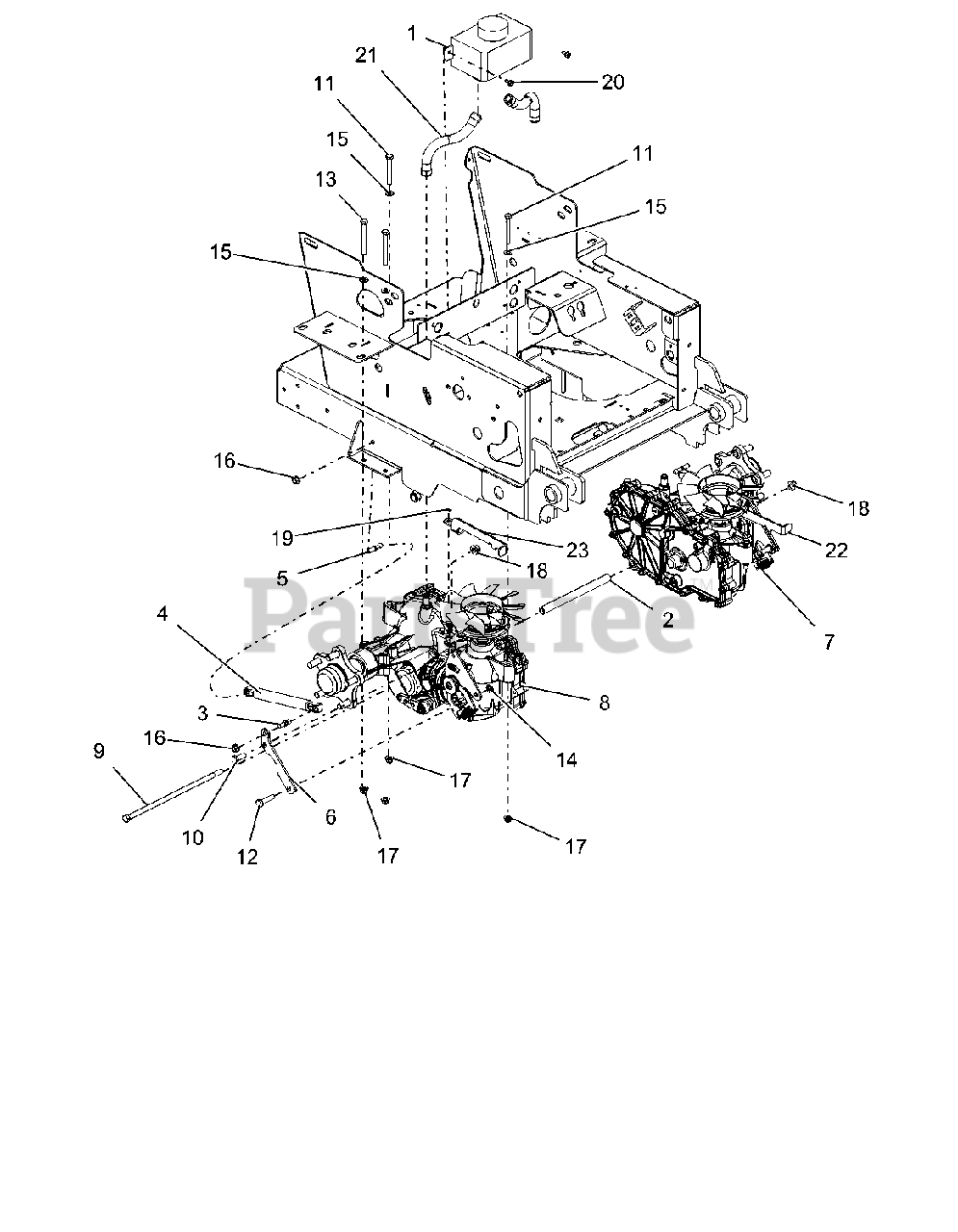

Transaxles Parts Diagram

  • Title
1

Gravely 02958700

TANK, EXPANSION

$31.99

$

In Stock, only 1 left!

0

2

Gravely 03367200

SPACER, .406 ID X .630 OD X 7.724

$14.99

$

In Stock, only 1 left!

0

3

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

4

Gravely 03769800

DAMPER,
(Superseded to 09689700)

$39.99

$

In Stock, Qty 20+

0

5

Gravely 04097100

STUD, BALL THREADED

$2.49

$

In Stock, Qty 15

0

6

Gravely 04244751

TRANSMISSION DAMPER MTG PLATE - BLK

$

$

Not available

7

Gravely 04827700

TRANSAXLE, ZT3100 - LH

$1571.99

$

Usually ships in 4-12 days

0

8

Gravely 04827800

TRANSAXLE, ZT3100 - RH

$1577.99

$

Usually ships in 4-12 days

0

9

Gravely 05901315

BLT, HEX .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$7.99

$

In Stock, only 1 left!

0

10

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05952600

BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

13

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

20

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 03251900

HYDRO OVERFLOW TANK HOSE

$17.99

$

In Stock, only 2 left!

0

22

03282581

RH, DUMP VALVE LEVER

$

$

Not available

23

Gravely 03282951

LH, DUMP VALVE LEVER

$33.99

$

Usually ships in 4-12 days

0
