991107 (ZT 44 HD) - Gravely 44" Zero-Turn Mower, Kohler (SN: 060000 & Above) Engine - Kohler Parts Diagram

44" Zero-Turn Mower, Kohler

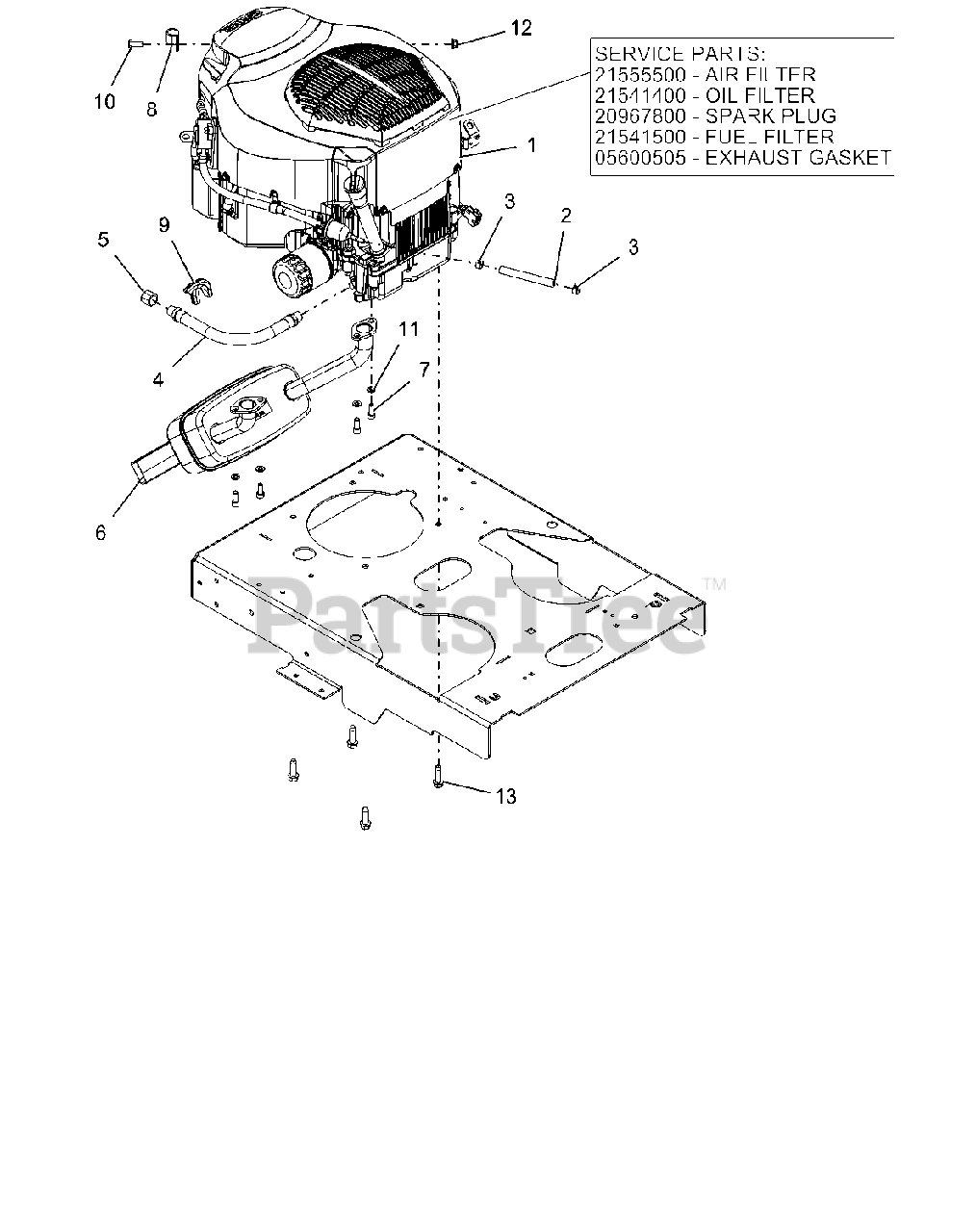

Engine - Kohler Parts Diagram

  • Title
1

Gravely 08201103

ENGINE, KOHLER TWIN - 24HP-PRO W/SC

$

$

Not available

1

Gravely 21555500

AIR FILTER

Note: SERVICE PART

$29.99

$

In Stock, only 1 left!

0

1

Gravely 21541400

OIL FILTER
(Superseded to 21397200)

Note: SERVICE PART

$18.99

$

In Stock, only 1 left!

0

1

Gravely 20967800

SPARK PLUG
(Superseded to 21541700)

Note: SERVICE PART

$4.49

$

In Stock, Qty 20+

0

1

Gravely 21541500

FUEL FILTER

Note: SERVICE PART

$8.99

$

In Stock, Qty 20+

0

1

Gravely 05600505

EXHAUST GASKET

Note: SERVICE PART

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 03278100

.25 LOW-PERM GAS HOSE 21.50" LG - TANK TO ENGINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03873100

HOSE, HYD .38-11-OK M6N0-M6N0
(Superseded to 07001829)

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 03873200

PIPE, CAP 3/8 NPT FEMALE

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 04825200

MUFFLER, KOHLER

$110.99

$

In Stock, only 1 left!

0

7

Gravely 05933100

SCR, CAP SOCKET HEAD
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 07500106

PROTECTOR, OIL DRAIN HOSE
(Superseded to 07500036)

$

$

Not available

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07414700

SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

$2.99

$

In Stock, only 3 left!

0
