991106 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kohler, CARB (SN: 020000 - 040999) Fuel Tanks And Hoses Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kohler, CARB

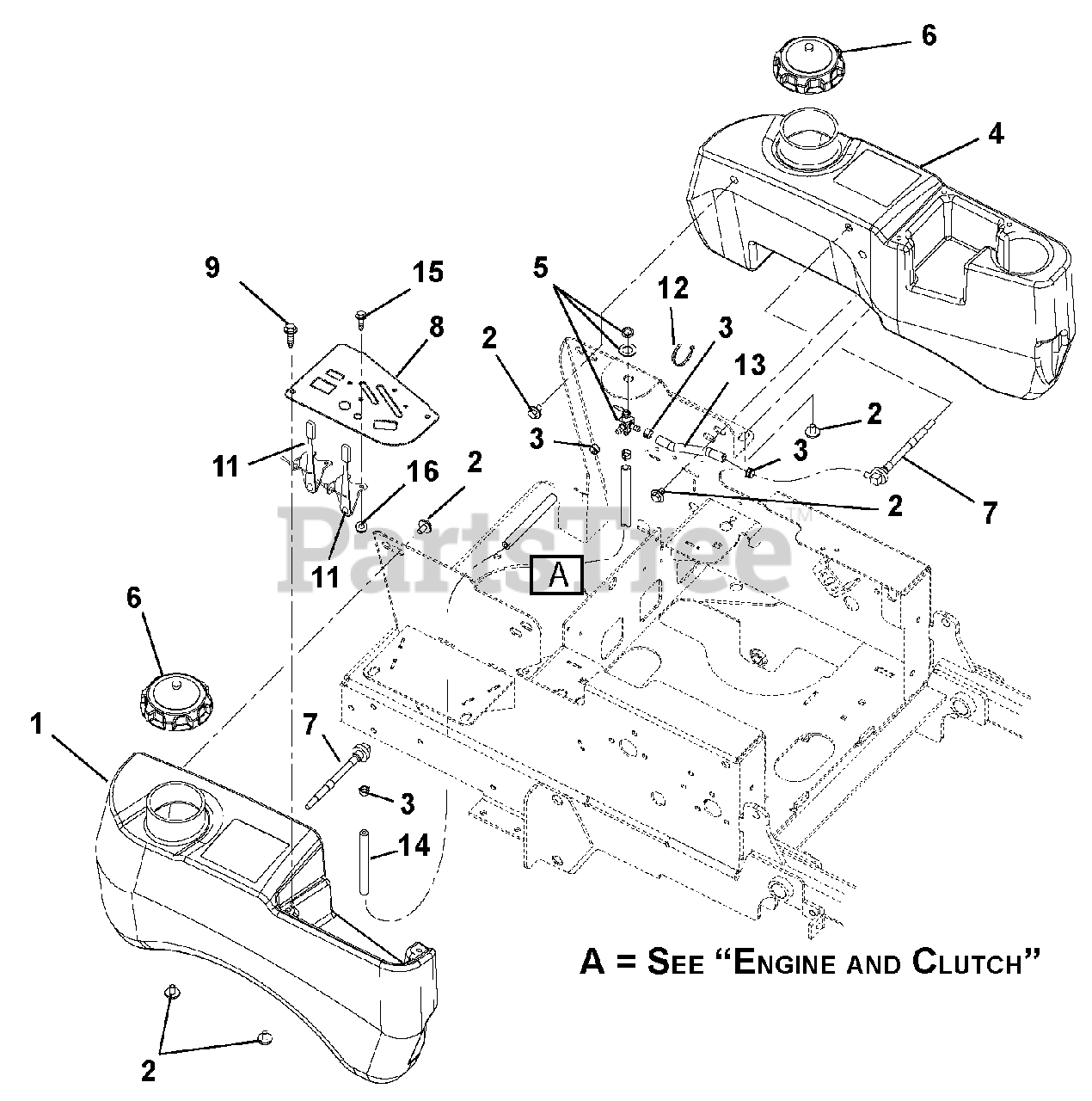

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 04245300

Tank, Fuel Right Hand

$204.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

4

Gravely 04245400

Tank, Fuel Left Hand

$210.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

6

Gravely 04558100

Cap, Fuel Non-Vent Autolock (991106)

Note: (991106)

$22.99

$

Usually ships in 4-12 days

0

Gravely 04558000

Cap, Fuel Vent-In Autolock (991089)
(Superseded to 09190300)

Note: (991089)

$33.99

$

In Stock, Qty 20+

0

7

Gravely 03900300

Assembly, Tank Fuel Pick-up
(Superseded to 04320900)

$39.99

$

In Stock, Qty 20+

0

8

Gravely 00453951

Panel, Control

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

Screw, Machine 10-24 x .50 Stainless

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06900336

Cable, Throttle

$46.99

$

Usually ships in 4-12 days

0

11

Gravely 06900319

Cable, Control

$45.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

Cable Tie

$

$

Not available

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
