991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 060000 & Above) Belts, Spindles, Idlers And Blades Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

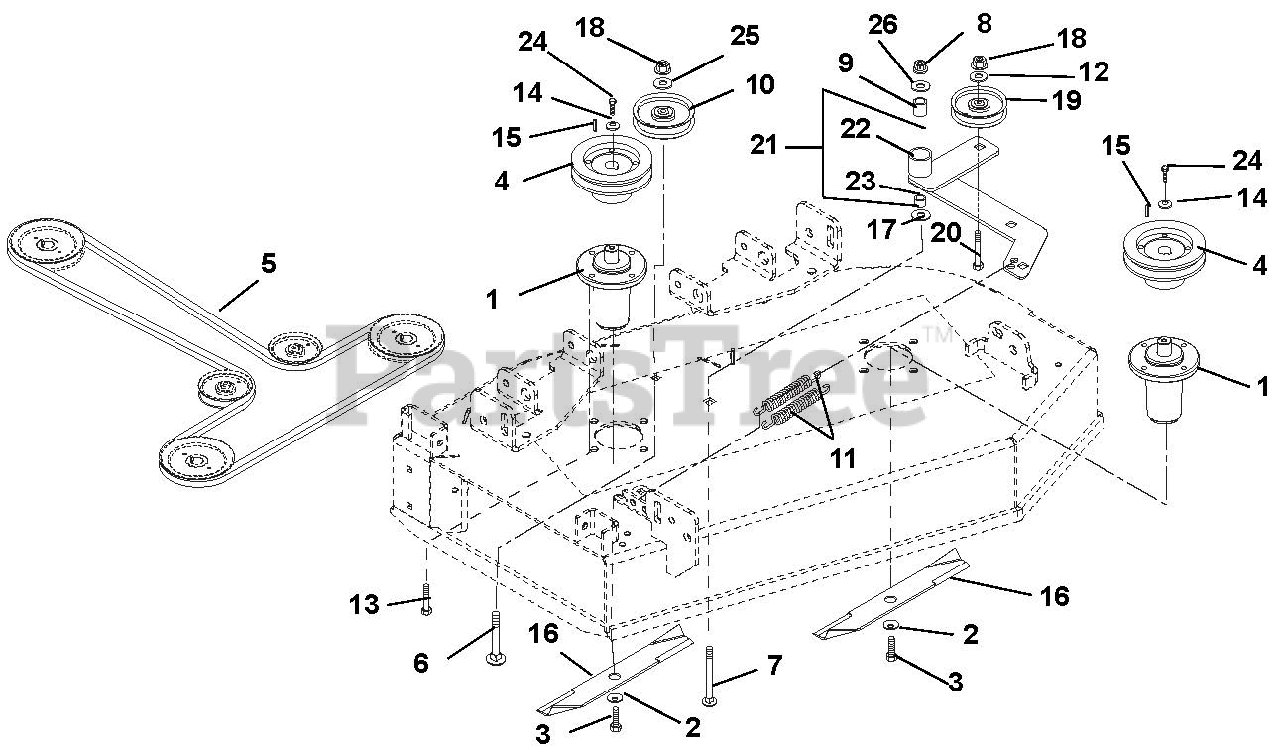

Belts, Spindles, Idlers And Blades Parts Diagram

  • Title

1

Gravely 59215500

Assembly, Spindle Short
(Superseded to 59114000)

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

3

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 00191800

Sheave, 5.00 Spindle (1.00 I.D.)

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 07200011

V-Belt, B-Section 49.68 x .62548.80 x .625

$99.99

$

Usually ships in 4-12 days

0

6

Gravely 06228100

Bolt, Round Head Square Neck .38-16 x 3.0 Grade 5
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06200003

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

8

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

10

Gravely 07327800

Idler, Flat 4.00 x .38 (2.00 W)

$87.99

$

In Stock, only 2 left!

0

11

Gravely 08300513

Spring, Extension

$34.99

$

In Stock, only 1 left!

0

12

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04530500

Retainer, Sheave

$7.99

$

In Stock, Qty 20+

0

15

Gravely 06600218

Key, Square .25 x .25 x .875

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08866800

Blade, Mulching 50" Mower

$33.99

$

In Stock, Qty 20+

0

17

Gravely 06442000

Washer, Flat Steel .531 x 1.250 x .100
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07300004

Idler, Flat 4.00 x .38 (1.00 W)

$53.99

$

In Stock, only 2 left!

0

20

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

21

Gravely 09296800

Assembly, Idler Pivot Arm

Note: (Contains Items 22 & 23)

$

$

Not available

22

Gravely 09296751

Weldment, Idler Pivot Arm

$141.99

$

Usually ships in 4-12 days

0

23

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

24

Gravely 05963000

Bolt, Hex .38-16 x 2.75 Grade 8
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 00440700

Seal, Idler Bearing

$77.99

$

In Stock, Qty 7

0

26

Gravely 06436400

Washer, Flat Steel 511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+
