991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 050000 - 059999) Hydro-Gear Hydrostatic Pump - Right Side Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

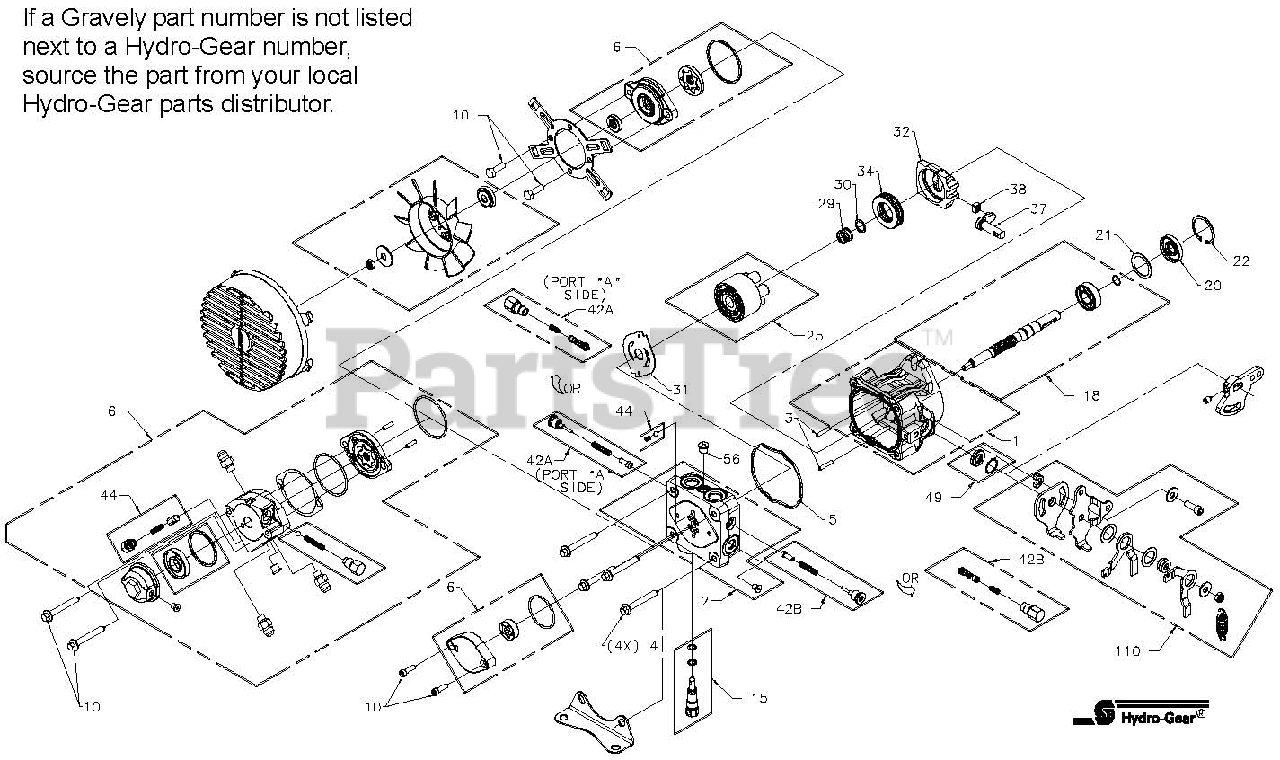

Hydro-Gear Hydrostatic Pump - Right Side Parts Diagram

  • Title

1

Gravely 21543929

Kit, Housing

Note: Hydro-Gear p/n 70797

$

$

Not available

2

Gravely 21543913

Kit, End Cap with Poppets

Note: Hydro-Gear p/n 70623

$

$

Not available

3

Gravely 21543750

Straight Headless Pin

Note: Hydro-Gear p/n 50641

$

$

Not available

4

Gravely 21543775

Hex, Flange Bolt M8-1.25 x 60mm

Note: Hydro-Gear p/n 50969

$

$

Not available

5

Gravely N/A

Housing O-Ring

Note: Hydro-Gear p/n 52629

$

$

Currently unavailable

6

Gravely 21543912

Kit, Chg Pump

Note: Hydro-Gear p/n 70622

$250.99

$

Usually ships in 4-12 days

0

10

Gravely 21543994

Cap Screw 5/16-18

Note: Hydro-Gear p/n 9007200-3116

$

$

Not available

15

Gravely 21543979

Kit, Bypass

Note: Hydro-Gear p/n 2513030

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 21543911

Kit, Pump Shaft

Note: Hydro-Gear p/n 70620 (15mm Straight Keyed, Thru)

$211.99

$

Usually ships in 4-12 days

0

20

Gravely 21543816

Lip Seal 17 x 40 x 7 PTC

Note: Hydro-Gear p/n 51161

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 21543773

Spacer

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

22

Gravely 21543741

Retaining Ring

Note: Hydro-Gear p/n 50329

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 21543889

Cylinder Block Kit

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

29

Gravely 08621500

Block Spring

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

30

Gravely 08609400

Block Thrust Washer

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

31

Gravely 21543838

Valve Plate

Note: Hydro-Gear p/n 51444

$36.99

$

Usually ships in 4-12 days

0

32

Gravely 08609000

Swashplate

Note: Hydro-Gear p/n 2003087

$

$

Not available

34

Gravely 08609100

Ball Thrust Bearing

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 08610800

Arm, Trunnion, Tapered Square

Note: Hydro-Gear p/n 50807

$57.99

$

Usually ships in 4-12 days

0

38

Gravely 08610700

Slot Guide

Note: Hydro-Gear p/n 2000015

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve

Note: Hydro-Gear p/n 70743 (200 Bar .031 Orifice)

$

$

Not available

44

Gravely 21543891

Kit, Charge Relief Valve

Note: Hydro-Gear p/n 70403

$

$

Not available

49

Gravely 58803300

Trunnion Seal – Retainer Kit

Note: Hydro-Gear p/n 2513043

$9.99

$

Usually ships in 4-12 days

0

56

Gravely 21543993

Plug, Straight Thread

Note: Hydro-Gear p/n 9005110-4400

$

$

Not available

110

Gravely 21543934

Kit, Return

Note: Hydro-Gear p/n 70847

$90.99

$

Usually ships in 4-12 days

0

NS

Gravely 59203600

Overhaul Seal Kit

Note: Hydro-Gear p/n 70525 NOT SHOWN

$77.99

$

Usually ships in 4-12 days

0
