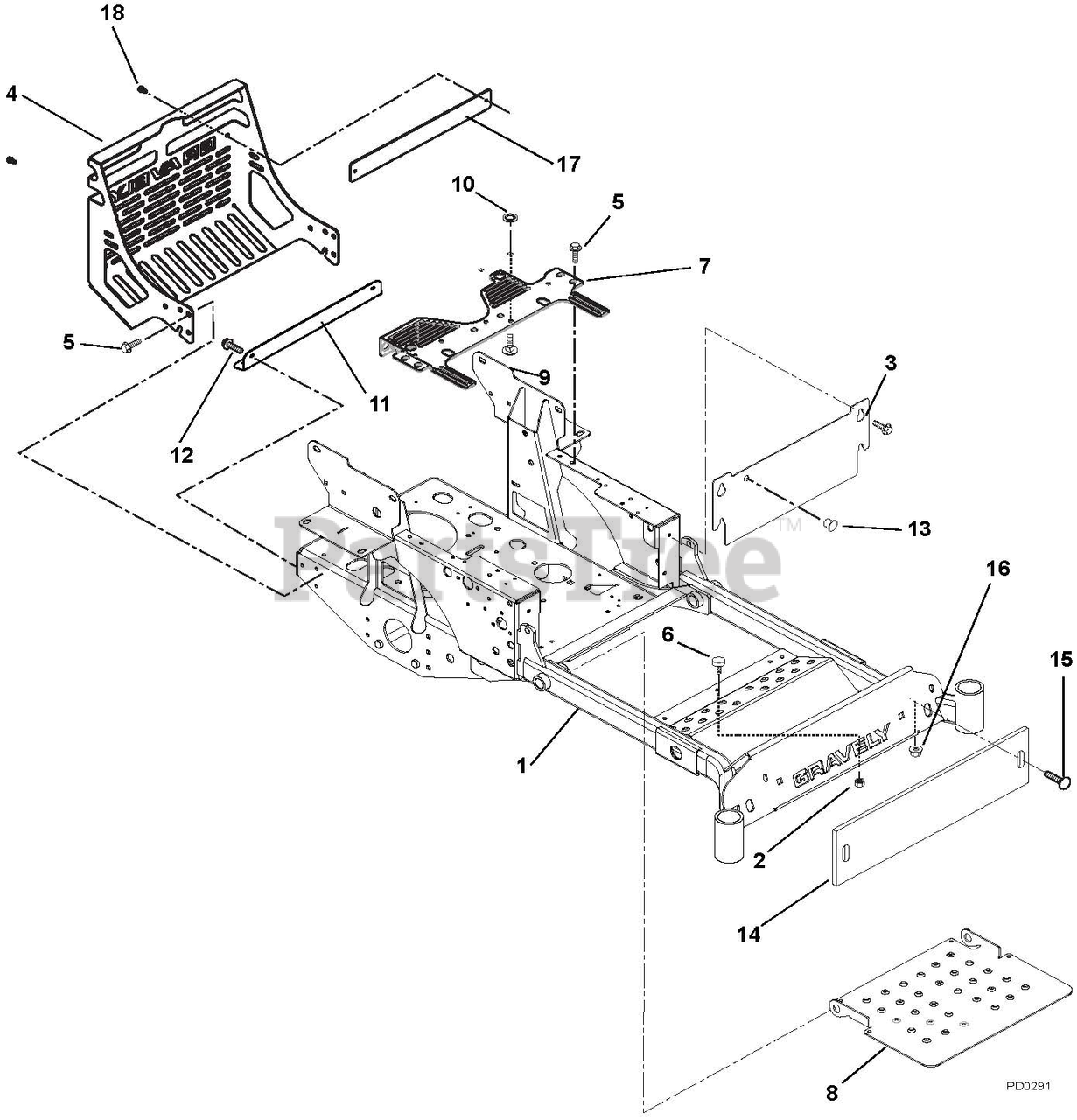

991105 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB (SN: 050000 - 059999) Frame Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki, CARB

Frame Parts Diagram

  • Title
1

Gravely 00346553

Frame, Compact-Z

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09297253

Access Panel

$55.99

$

Usually ships in 4-12 days

0

4

Gravely 04369353

Bumper, Rear

$221.99

$

In Stock, only 4 left!

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

7

Gravely 04114551

Seat Support

$86.99

$

Usually ships in 4-12 days

0

8

Gravely 00298951

Panel, Inspection

$71.99

$

Usually ships in 4-12 days

0

9

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

11

Gravely 04672751

Heat Shield

$22.99

$

In Stock, only 1 left!

0

12

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01554900

Plug, Hole .56

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 01922851

Counterwieght CZ Front – Black

$33.99

$

Usually ships in 4-12 days

0

15

Gravely 06225500

Bolt, Round Head Square Neck .50-13 x 2.50 Grade 5

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03995751

Plate, Bumper

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 04161651

Bracket, Mounting Right Hand

$

$

Not available

20

Gravely 04161551

Bracket, Mounting Left Hand

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
